Solar PV Analysis of Bishop's Stortford, United Kingdom
Bishop's Stortford in the United Kingdom is a fairly good location for year-round energy generation through solar power, although it's not ideal. The amount of electricity that can be produced from solar panels at this location varies throughout the year. In simpler terms, during summer and spring, the panels can produce more electricity (5.13kWh/day and 4.41kWh/day respectively per kW of installed solar) due to longer daylight hours and better weather conditions. However, in autumn and winter, the output drops significantly to 2.29kWh/day and 1.03 kWh/day respectively per kW of installed solar because of shorter days and less sunlight.
Therefore, if you're planning to install solar panels here, it would be most effective during spring and summer seasons when there's plenty of sunlight available for most parts of the day.
To get the best out of your solar panel installation at Bishop's Stortford throughout the year, you should tilt your panels at an angle of 44 degrees towards South direction as this is considered as an optimal angle for capturing maximum sunlight over a year.
As far as local factors are concerned that might affect your energy production from these panels; typical UK weather could be a challenge - especially cloud cover which reduces sunlight exposure or heavy snowfall in winters which could cover up your panels temporarily reducing their efficiency unless cleared off quickly.
To overcome these challenges; regular maintenance like cleaning off any debris or snow from your panels can help ensure they work efficiently even under less than ideal circumstances. Also using higher quality PV modules with improved performance under low light conditions can help offset some effects caused by cloudy weather.
Another factor worth considering is shading caused by nearby trees or buildings – so choosing an unobstructed location for installation will also help maximise energy production.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 756 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in United Kingdom by location

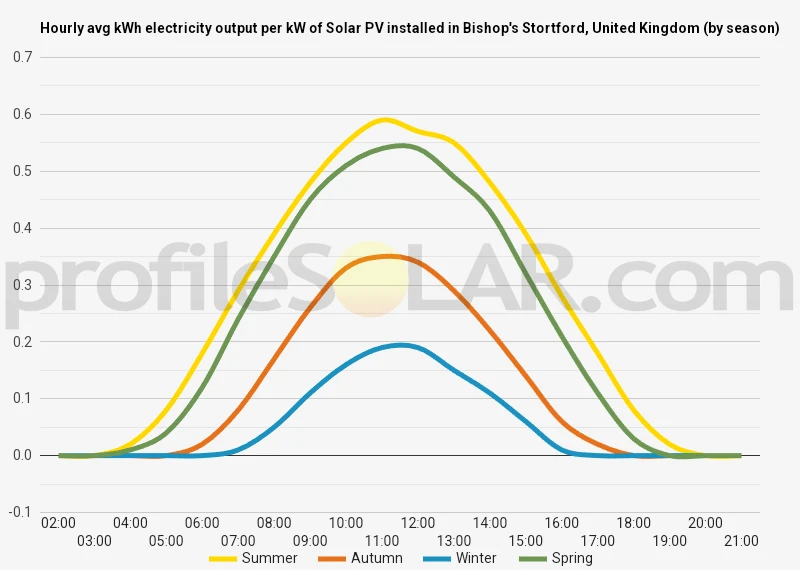

Solar output per kW of installed solar PV by season in Bishop's Stortford
Seasonal solar PV output for Latitude: 51.8637, Longitude: 0.1662 (Bishop's Stortford, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 44° South in Bishop's Stortford, United Kingdom
To maximize your solar PV system's energy output in Bishop's Stortford, United Kingdom (Lat/Long 51.8637, 0.1662) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Bishop's Stortford, United Kingdom
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bishop's Stortford, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 35° South in Summer | 55° South in Autumn | 65° South in Winter | 44° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Bishop's Stortford, United Kingdom
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bishop's Stortford, United Kingdom.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Bishop's Stortford, United Kingdom
Bishop's Stortford is located in the county of Hertfordshire, southeast England. The topography around Bishop's Stortford is generally flat to gently rolling hills with some farmlands and open fields. It lies in the valley of the River Stort, which provides a low-lying, relatively flat area.
As for solar PV installations, large-scale solar farms require a significant amount of open and relatively flat land that is exposed to sunlight throughout most of the day. Therefore, areas such as farmlands or open fields would be most suitable for this purpose.
However, it's important to consider other factors such as local planning regulations and restrictions which could potentially limit where these installations can be placed. For instance, areas of outstanding natural beauty or sites with special scientific interest might have strict rules against this kind of development.
Moreover, proximity to power grids for easy connection and distribution should also be considered when choosing a site for large-scale solar PV installation.
In terms of specific locations near Bishop's Stortford that may be suitable for large-scale solar PV installations based on topography alone (not considering regulatory or infrastructure factors), potential areas could include the flat agricultural lands towards Stansted Mountfitchet to the east or Sawbridgeworth to the south-west.
Please note it would still require further detailed feasibility studies including environmental impact assessments before any definitive decision can be made.
United Kingdom solar PV Stats as a country
United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United Kingdom?
Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
