Libreville, Gabon is located in the tropics where sunlight is consistent throughout most of the year making it an excellent location for solar energy generation. The seasons here are characterized more by wet and dry periods rather than temperature fluctuations.

When looking at the average electricity output per kW of installed solar panels, we see that all four seasons produce relatively high outputs ranging from 4.27kWh/day in summer to 4.97kWh/day in winter. This suggests that there's potential for generating significant amounts of solar power year-round, with slightly higher production during autumn, winter and spring when compared to summer.

For a fixed panel installation at this location, tilting the panels at an angle of 1 degree towards the south would maximize total yearly production from solar PV systems.

However, there could be certain environmental or weather-related factors that might impede solar production in Libreville. Given its tropical climate, heavy rainfall during wet seasons can potentially reduce sunlight exposure on panels thereby reducing their efficiency. Also dust or debris accumulation on panels due to wind or other local conditions might affect performance over time.

To mitigate these issues while installing a solar system here:

1) Consider using durable materials designed to withstand heavy rainfall.
2) Install a mechanism for easy cleaning and maintenance of panels to remove any dust or debris regularly.
3) If feasible consider tracking systems which adjust panel angles throughout the day maximizing exposure to sun even during less sunny days.

In conclusion: Despite few challenges like rainfall and dust accumulation; with proper design considerations & regular maintenance Libreville’s consistent sunlight makes it an ideal place for generating substantial amount of energy via Solar PV systems all year round!

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

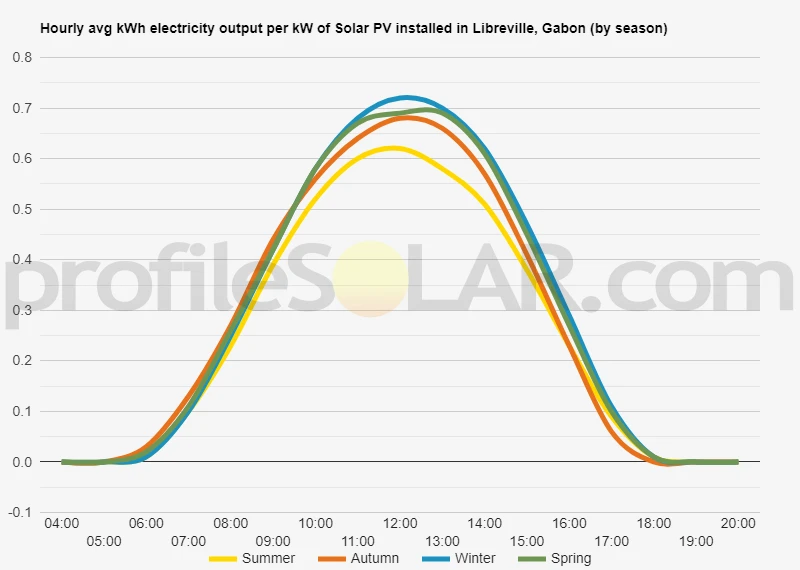

Solar output per kW of installed solar PV by season in Libreville

Seasonal solar PV output for Latitude: 0.381, Longitude: 9.4487 (Libreville, Gabon), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 4.27kWh/day in Summer.

Average 4.67kWh/day in Autumn.

Average 4.97kWh/day in Winter.

Average 4.87kWh/day in Spring.

Ideally tilt fixed solar panels 1° South in Libreville, Gabon

To maximize your solar PV system's energy output in Libreville, Gabon (Lat/Long 0.381, 9.4487) throughout the year, you should tilt your panels at an angle of 1° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 0.381, Longitude: 9.4487, the ideal angle to tilt panels is 1° South

Seasonally adjusted solar panel tilt angles for Libreville, Gabon

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Libreville, Gabon. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Libreville, Gabon

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Libreville, Gabon.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Libreville, Gabon

Libreville, the capital city of Gabon, is located on the west coast of Africa along the Atlantic Ocean. The topography around Libreville is relatively flat coastal plains that rise to a small plateau region in the east. The area is characterized by lush tropical rainforests with an abundance of rivers and streams.

The climate in Libreville is equatorial, characterized by high temperatures and humidity levels throughout the year. It receives abundant sunlight due to its location near the Equator which makes it suitable for solar PV installations.

However, considering large-scale solar PV installations, it would be more practical to install such systems in areas where there's less cloud cover and rainfall. The eastern plateau region could be a potential site since it's higher above sea level which might result in fewer clouds and therefore more sunlight exposure.

Additionally, any deforested or open areas outside of Libreville could also serve as potential locations for large-scale solar farms given their increased exposure to sunlight without obstruction from tall trees or buildings.

However, environmental impact assessments would have to be carried out before setting up such projects considering Gabon’s rich biodiversity and commitment towards conservation efforts. Also important are infrastructural considerations like proximity to power grids for efficient transmission of generated electricity.
