Solar PV Analysis of Ramat Tsevi, Israel
The location at Ramat Tsevi, Northern District, Israel is quite favorable for generating energy via solar photovoltaic (PV) systems. This area experiences a good amount of sunlight throughout the year, making it an excellent candidate for solar power generation.
In terms of seasonal variation in power output, summer and spring are the most productive seasons with 8.60 kilowatt-hours (kWh) per day and 7.20 kWh/day respectively generated per kilowatt (kW) of installed solar panel capacity. Autumn is less productive but still reasonable with an average daily output of 5.28 kWh per kW while winter has the lowest productivity with only 3.53 kWh/day per kW.
Given these figures, installing a PV system at this location would be most effective if you aim to maximize production during the sunnier parts of the year - namely spring and summer.
For fixed panel installations at this location, tilting panels toward south by an angle of approximately 28 degrees can help maximize total annual energy production from your PV system as it optimizes exposure to sunlight throughout different times in a day across all seasons.
As far as potential obstacles to solar production go, there may be some environmental or weather factors that could affect efficiency such as dust storms which are common in desert regions like Israel or any other form of shading caused by buildings or vegetation around your installation site that might block sunlight from reaching your panels.
To mitigate these issues and ensure greater energy production from your PV system:
1. Regular cleaning: Dust accumulation on panels can significantly reduce their efficiency so regular maintenance including cleaning should be conducted especially after dust storms.
2. Proper placement: The positioning of your installation site should also take into account potential sources of shade such as nearby buildings or trees that could obstruct direct sunlight onto your panels.
3. Use trackers: If feasible and affordable, using solar tracking systems can increase electricity generation by keeping the panels oriented towards the sun throughout the day.
In conclusion, Ramat Tsevi is a good location for solar PV installation with high productivity in spring and summer. However, to ensure maximum energy output year-round, proper panel placement, regular maintenance and possibly using tracking systems should be considered.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Israel. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Israel by location

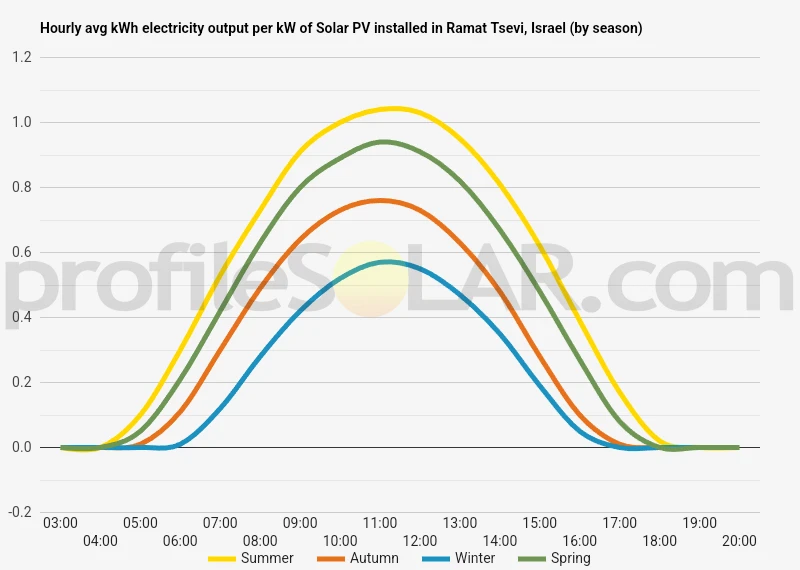

Solar output per kW of installed solar PV by season in Ramat Tsevi
Seasonal solar PV output for Latitude: 32.5901, Longitude: 35.4251 (Ramat Tsevi, Israel), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 28° South in Ramat Tsevi, Israel
To maximize your solar PV system's energy output in Ramat Tsevi, Israel (Lat/Long 32.5901, 35.4251) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Ramat Tsevi, Israel
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ramat Tsevi, Israel. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 16° South in Summer | 37° South in Autumn | 47° South in Winter | 25° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Ramat Tsevi, Israel
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ramat Tsevi, Israel.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Ramat Tsevi, Israel
Ramat Tsevi is located in the Lower Galilee region of northern Israel. The topography around this area is characterized by rolling hills, valleys and plains with an average elevation of about 200 meters above sea level. The region experiences a Mediterranean climate with hot, dry summers and cool, wet winters.
The areas most suited for large-scale solar PV installations would ideally be flat or gently sloping regions that receive high amounts of sunlight throughout the year. In this context, the open plains around Ramat Tsevi could potentially be suitable for such installations.
However, it's important to note that suitability also depends on other factors like land availability and usage (whether agricultural or otherwise), proximity to power grids for energy transmission, environmental considerations etc. Therefore a detailed feasibility study would need to be conducted before determining specific sites for largescale solar PV installations.
Lastly remember that while Israel gets significant sun exposure making it good for solar energy production generally speaking; its small size as well as competing land uses can pose challenges in finding suitable locations for large-scale projects.
Israel solar PV Stats as a country
Israel ranks 29th in the world for cumulative solar PV capacity, with 2,555 total MW's of solar PV installed. This means that 4.70% of Israel's total energy as a country comes from solar PV (that's 17th in the world). Each year Israel is generating 277 Watts from solar PV per capita (Israel ranks 16th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Israel?
Yes, there are several incentives for businesses wanting to install solar energy in Israel. The Israeli government offers a variety of financial incentives and subsidies for businesses that install solar energy systems. These include grants, tax credits, and low-interest loans. Additionally, the government has implemented a feed-in tariff program which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to ensure that businesses can recoup their investment in solar energy over time.
Do you have more up to date information than this on incentives towards solar PV projects in Israel? Please reach out to us and help us keep this information current. Thanks!
