Location estimate
El Guettar
Relizane · Algeria
Approximate location reference—not a rooftop, property or survey point.
Seasonal average-day estimates
Selected capacity 1 kWp
Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.
Logarithmic slider: each labelled interval is 10× capacity. Energy scales linearly with capacity.
Arrow keys change capacity by about 2.3 percent per step. Page Up and Page Down move one labelled interval. Home selects 0.1 kWp; End selects 10 MWp.
Enter exact capacity and unit
Enter at least 0.1 kWp. Decimal point or comma; no thousands separators. 1 MWp = 1,000 kWp. Changing units keeps the same capacity. Exact entry keeps your precision; slider adjustments select three-significant-figure sizes.
There is no fixed upper capacity limit. Values and results must fit the calculator’s numeric range; the slider’s range is not an exact-entry limit.
Showing seasonal average-day estimates for 1 kWp.
Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.
Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.
Summer
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Autumn
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Winter
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Spring
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Very large results use scientific notation; an approximate capacity label is marked ≈. Exact capacity and full results remain available under Source basis and scaling limits.
Shared scale: 0–8.00 kWh/day.
I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.
This is illustrative scaling, not a site-specific production prediction.
Source basis and scaling limits
Original seasonal average-day estimates for El Guettar, in kWh/kWp/day.
I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.
| Season | Recorded kWh/kWp/day | Exact selected-capacity result · kWh/day |
|---|---|---|
| Summer | 7.67 | 7.67 × 1 kWp = 7.67 kWh/day |
| Autumn | 4.48 | 4.48 × 1 kWp = 4.48 kWh/day |
| Winter | 3.38 | 3.38 × 1 kWp = 3.38 kWh/day |
| Spring | 6.37 | 6.37 × 1 kWp = 6.37 kWh/day |
Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.
Full results rounded to two decimal places
These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.
- Summer · kWh/day
- 7.67
- Autumn · kWh/day
- 4.48
- Winter · kWh/day
- 3.38
- Spring · kWh/day
- 6.37
The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.
These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.
Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.
Year-round panel setup
- Tilt from horizontal
- 31°
- Facing direction
- South
Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.
Suggested seasonal tilts
Tilt from horizontal · facing direction
- Summer
Jun, Jul, Aug - 20°South
- Autumn
Sep, Oct, Nov - 40°South
- Winter
Dec, Jan, Feb - 51°South
- Spring
Mar, Apr, May - 28°South
The seasonal electricity figures do not model gains from switching between these settings.
About this orientation
This schematic shows the year-round panel tilt and facing direction for El Guettar, Relizane, Algeria.
For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.
I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.
The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.
Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.
Seasonal orientation diagrams
These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.
Summer
20° tilt · South
Illustrative direction; exact azimuth not recorded.
Autumn
40° tilt · South
Illustrative direction; exact azimuth not recorded.
Winter
51° tilt · South
Illustrative direction; exact azimuth not recorded.
Spring
28° tilt · South
Illustrative direction; exact azimuth not recorded.
View larger

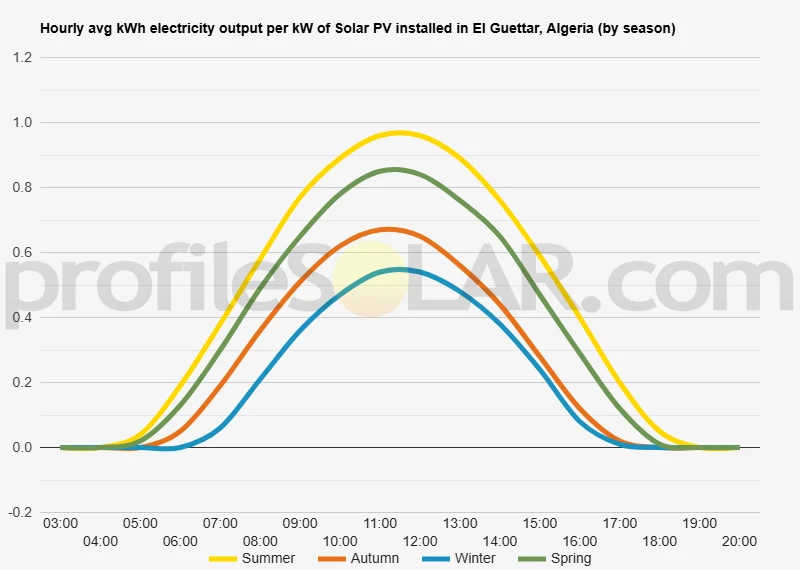

Hourly electricity pattern for El Guettar, Algeria
Hourly profiles by season — El Guettar, Algeria · 2021
This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.
2021 is the method’s reference year, not verified year coverage for every point in this historical chart.
The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.
Row-spacing planning
Planning solar-panel row spacing in El Guettar
Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.
Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.
Panel and spacing inputs
Along the tilted surface, across the row. Greater than 0, up to 20 m; 2 m is an example.
Optional extra space, 0–100 m.
Starts at the recorded year-round tilt. Decimal entry is kept at your entered precision.
Linear slider: arrows select the next whole degree; Page Up/Down 10°, Home 0°, End 90°. Only moving it changes your numeric entry.
Results update automatically.
Example calculated with a 2 m panel surface length. Replace that example with the dimension of the module you are considering.
Example calculated with a 2 m panel surface length. Replace that example with the dimension of the module you are considering. Other published location estimates remain available.
Adjust the inputs to update this diagram and its results.
Row pitch including margin
≈ m
- Sunlight ray
- First row’s ground shadow
- Shadow endpoint
At this scale the panel surfaces are very small. The row labels locate them; exact dimensions remain available below.
- Calculated clear gap
- ≈ m
- Added margin
- ≈ 0 m
- Gap including margin
- ≈ m
- Panel horizontal footprint
- ≈ m
- Panel vertical rise
- ≈ m
- Pitch before margin
- ≈ m
Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.
One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.
Detailed inputs and unrounded results
More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.
- Panel surface length
- 2 m
- Tilt up from horizontal
- 31°
- Added margin
- 0 m
- Latitude from the catalogue
- 35.745800000000000000° (Northern Hemisphere)
- Panel horizontal footprint
- 1.7143346014042247 m
- Panel vertical rise
- 1.0300761498201083 m
- Calculated clear gap
- 1.7276659720646392 m
- Pitch before margin
- 3.4420005734688637 m
- Gap including margin
- 1.7276659720646392 m
- Row pitch including margin
- 3.4420005734688637 m
- Design solar elevation
- 30.80441715318635°
How this spacing estimate is calculated
I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.
δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).
Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.
The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.
The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.
Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.
Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.
Solar context for El Guettar
Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.
El Guettar, Algeria shows excellent potential for year-round solar energy generation, making it a highly suitable location for solar PV installations. Located in the Northern Temperate Zone at coordinates 35.7458°N, 0.6964°E, this region benefits from abundant sunshine throughout most of the year.
Read the full article
<h3>Seasonal Solar Performance</h3> Summer represents the peak solar generation period at El Guettar, with panels producing an impressive 7.67 kWh per day for each kW of installed capacity. This exceptional output makes summer the most productive season for solar energy harvesting. Spring follows as the second-best season, generating 6.37 kWh per day per kW of installed solar capacity. The combination of increasing daylight hours and favorable weather conditions creates optimal conditions for solar production during this period. Autumn sees a notable decline in solar output to 4.48 kWh per day per kW, though this still represents reasonable energy generation levels. Winter presents the most challenging season for solar production, dropping to 3.38 kWh per day per kW of installed capacity, which is typical for Northern Hemisphere locations during the colder months. <h3>Optimal Panel Configuration</h3> For maximum year-round solar energy production at El Guettar, fixed solar panels should be tilted at 31 degrees facing south. This angle has been calculated to optimize total annual energy output by accounting for the sun's changing position throughout the year and the Earth's elliptical orbit around the sun. <h3>Environmental and Weather Challenges</h3> Several significant local factors could impact solar energy production at El Guettar, requiring careful consideration during installation planning. <strong>Desert Dust and Sand</strong> pose the most substantial challenge to solar installations in this Algerian location. The region's proximity to the Sahara Desert means panels face regular exposure to airborne particles that can accumulate on panel surfaces, significantly reducing energy output. Fine sand particles can create a persistent film that blocks sunlight from reaching photovoltaic cells. <strong>Extreme Temperature Fluctuations</strong> present another concern, as desert climates typically experience dramatic temperature swings between day and night. These rapid changes can stress solar panel materials and mounting systems over time, potentially affecting long-term performance and durability. <strong>Occasional Sandstorms</strong> can create temporary but severe reductions in solar output while potentially causing physical damage to panels and equipment. These weather events can deposit large quantities of abrasive material on installations. <h3>Preventative Measures for Enhanced Performance</h3> Several strategies can help maximize solar energy production despite these environmental challenges: <ul> <li><strong>Regular Cleaning Systems:</strong> Install automated cleaning mechanisms or establish frequent manual cleaning schedules to remove dust and sand buildup from panel surfaces</li> <li><strong>Protective Coatings:</strong> Apply anti-soiling coatings to panel surfaces that help prevent dust adhesion and make cleaning more effective</li> <li><strong>Robust Mounting Systems:</strong> Use heavy-duty mounting hardware designed to withstand high winds and temperature extremes common in desert environments</li> <li><strong>Strategic Panel Positioning:</strong> Install panels with adequate spacing to allow natural wind cleaning and easier access for maintenance</li> <li><strong>Quality Component Selection:</strong> Choose solar panels and inverters specifically rated for extreme temperature ranges and harsh environmental conditions</li> </ul> Despite these environmental challenges, El Guettar's strong solar resource makes it an attractive location for solar energy projects, provided that proper planning and maintenance protocols address the local conditions effectively.
Topography around El Guettar
These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.
<h3>Topography Around El Guettar</h3> El Guettar is situated in the Guelma Province of northeastern Algeria, positioned within a transitional landscape that bridges the coastal Atlas Mountains to the north and the more arid interior plains to the south. The immediate terrain around El Guettar features gently rolling hills and undulating plains, with elevations typically ranging from 800 to 1,200 meters above sea level. This elevated plateau region is characterized by relatively moderate slopes and broad valleys that have been shaped by centuries of erosion and seasonal water flow. The area displays typical Mediterranean highland topography, with scattered rocky outcrops and limestone formations interspersed throughout the landscape. The terrain gradually becomes more rugged toward the north, where the foothills of the Atlas Mountain system create steeper gradients and more pronounced elevation changes. Conversely, moving southward from El Guettar, the land generally flattens into expansive plains that extend toward the Saharan margins. Local drainage patterns are defined by seasonal watercourses and wadis that flow primarily during the winter and spring months. These waterways have carved shallow valleys and depressions into the landscape, creating a mosaic of elevated plateaus and gentle basins. The soil composition varies from rocky, limestone-derived materials on higher ground to more fertile alluvial deposits in the valley bottoms. <h3>Optimal Areas for Large-Scale Solar Development</h3> The most promising locations for extensive solar photovoltaic installations lie on the elevated plateaus and gentle slopes that extend southward from El Guettar toward the interior plains. These areas offer several advantages for solar development, including relatively flat terrain that minimizes construction costs and engineering challenges associated with steep gradients. The broad, open plateaus provide ample space for large arrays while maintaining consistent elevation profiles that facilitate efficient panel placement and maintenance access. The limestone-based geology of many elevated areas around El Guettar provides stable foundation conditions for solar installations, reducing the risk of ground movement or settling that could affect panel alignment over time. These elevated sites also benefit from excellent natural drainage, preventing water accumulation that could damage equipment or create maintenance difficulties. Areas located 10 to 20 kilometers south and southwest of El Guettar present particularly attractive opportunities for solar development. These locations feature expansive, relatively level terrain with minimal vegetation cover and few competing land uses. The gradual transition toward more arid conditions in these directions typically results in reduced cloud cover and atmospheric moisture, creating favorable conditions for solar energy generation. The broad valleys and basins between the rolling hills also offer potential development sites, particularly where they feature stable, well-drained soils and minimal slope variations. These locations often provide natural wind protection while maintaining clear sky exposure necessary for optimal solar panel performance. Additionally, many of these valley areas are already connected to existing transportation networks, facilitating construction access and ongoing maintenance operations.
Technical location reference
Approximate map point used for El Guettar, Algeria
This coordinate is the calculation reference for El Guettar, Algeria. Extra decimal places do not make it a rooftop, property or survey point.
Coordinates and precision
- Map coordinate
- 35.745800000000000000, 0.696400000000000000
- Originally displayed coordinate
- lat35.7458 / long0.6964
How the estimate works
How this El Guettar estimate was calculated
Here is how I calculated the location estimate for El Guettar, Algeria.
Read how all Location estimates workSource and scope
I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.
The figures are calculated estimates, not measured output or a new NASA request while you browse.
Reference period and source details
The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.
NASA POWER project reference
The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.
This source reference does not imply NASA endorsement.
Use the result carefully
What this El Guettar Location estimate includes and leaves out
Use the El Guettar figures for broad location context, with the following boundaries in mind.
- These catalogue estimates are informational; they do not establish a site-specific production result.
- The location is an approximate reference, not a property, rooftop or survey coordinate.
- The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
- The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
- Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
