Benguela, Angola presents a favorable location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output at this location shows strong performance across all seasons, though with notable seasonal variation. Summer delivers the highest production at 7.41 kWh per day per kW of installed solar capacity, making it the optimal time for solar generation. Spring and autumn provide nearly identical moderate output levels at 6.16 kWh and 6.17 kWh per day respectively. Winter shows the lowest production at 5.24 kWh per day, though this still represents reasonable solar generation potential. For fixed panel installations at Benguela, the ideal tilt angle to maximize total year-round solar production is 11 degrees facing North. This relatively shallow angle reflects the location's proximity to the equator, where the sun maintains a high position in the sky throughout the year.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Benguela and require careful consideration during installation planning. The coastal location along the Atlantic Ocean brings high humidity levels and salt-laden air, which can cause corrosion of solar panel frames, mounting systems, and electrical connections over time. The salty atmosphere is particularly aggressive toward metal components and can reduce system efficiency if not properly addressed. Angola's tropical climate includes distinct wet and dry seasons, with the rainy period potentially bringing heavy precipitation, strong winds, and occasional severe weather events. These conditions can temporarily reduce solar output and pose risks to equipment integrity. Dust accumulation presents another significant challenge, particularly during dry seasons when fine particles can settle on panel surfaces and reduce light transmission. The combination of coastal conditions and periodic dry spells can create stubborn deposits that require regular attention.

Preventative Measures for Optimal Performance

Several installation strategies can help mitigate these environmental challenges and ensure maximum energy production:

• Use marine-grade aluminum frames and stainless steel mounting hardware specifically designed to resist salt corrosion
• Apply protective coatings to all metal components and ensure proper grounding systems
• Install panels with adequate drainage design to prevent water pooling during heavy rains
• Implement robust mounting systems engineered to withstand high winds and severe weather
• Establish regular cleaning schedules to remove dust, salt deposits, and other debris from panel surfaces

Regular maintenance becomes particularly important in this coastal tropical environment. Monthly visual inspections and quarterly professional cleaning can help maintain optimal performance levels throughout the year, ensuring that the location's strong solar potential is fully realized despite environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3 locations across Angola. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Angola by location

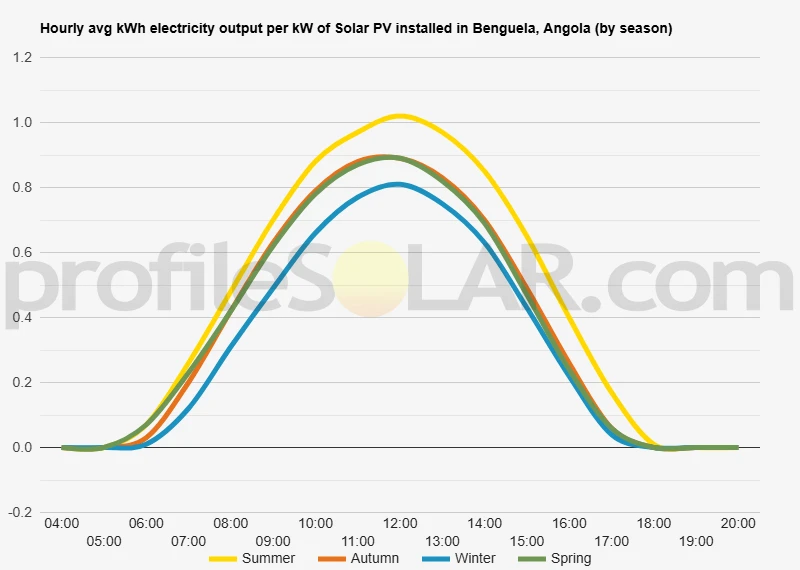

Solar output per kW of installed solar PV by season in Benguela

Seasonal solar PV output for Latitude: -12.5767, Longitude: 13.4088 (Benguela, Angola), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° North in Benguela, Angola

To maximize your solar PV system's energy output in Benguela, Angola (Lat/Long -12.5767, 13.4088) throughout the year, you should tilt your panels at an angle of 11° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Benguela, Angola

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Benguela, Angola. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	19° North in Autumn	29° North in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Benguela, Angola

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Benguela, Angola.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Benguela, Angola

Topographical Features of Benguela

Benguela sits along Angola's Atlantic coastline, positioned on a relatively flat coastal plain that extends inland from the ocean. The immediate area around the city is characterized by low-lying terrain with gentle undulations, typical of coastal regions that have been shaped by marine processes over geological time. The landscape gradually rises as it moves eastward away from the coast, transitioning from the narrow coastal plain into higher elevation areas further inland. The terrain immediately surrounding Benguela consists primarily of sandy soils and sedimentary formations, with elevations generally remaining below 100 meters above sea level for several kilometers inland. This flat to gently rolling topography creates an expansive, relatively uniform landscape that extends both north and south along the coastline. The area experiences minimal natural shading from topographical features, as significant hills or mountains are located much further inland.

Climate and Environmental Considerations

The region benefits from Angola's position in the Southern Hemisphere's subtropical zone, where the Benguela Current offshore creates a semi-arid climate with minimal cloud cover throughout much of the year. The coastal location moderates temperature extremes, while the prevailing atmospheric conditions result in clear skies and excellent solar exposure conditions. The area experiences distinct wet and dry seasons, though precipitation levels remain relatively low compared to other coastal regions in tropical Africa. Vegetation in the immediate vicinity is sparse, consisting mainly of drought-adapted shrubs and grasses typical of semi-arid coastal environments. This natural landscape characteristic means that large areas require minimal clearing for solar installations, reducing both environmental impact and development costs.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie on the elevated plains approximately 20 to 50 kilometers inland from Benguela. These areas combine the advantages of higher elevation with consistently flat terrain that simplifies construction and maintenance operations. The slightly inland position reduces exposure to salt-laden coastal air, which can accelerate corrosion of solar equipment, while maintaining excellent solar exposure characteristics. The elevated plateau regions to the northeast and southeast of Benguela offer particularly favorable conditions. These areas feature stable, well-drained soils that provide solid foundations for solar mounting systems. The terrain remains relatively flat across large expanses, allowing for efficient layout of solar arrays and minimizing the need for extensive grading or earthwork during construction. Areas along the inland transportation corridors present additional advantages for solar development, as existing road networks facilitate equipment transport and ongoing maintenance access. The regions extending toward the interior highlands offer vast expanses of undeveloped land with minimal competing land uses, making large-scale solar farms economically viable. The slightly elevated inland areas also benefit from reduced atmospheric moisture compared to the immediate coastal zone, resulting in cleaner air that allows maximum solar radiation to reach photovoltaic panels. These locations maintain the region's favorable climate characteristics while avoiding some of the challenges associated with direct coastal exposure, such as salt spray and higher humidity levels that can affect equipment performance and longevity.
