Bregenz, Vorarlberg, Austria, located at 47.5065°N, 9.7437°E, presents a mixed picture for solar energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 5.66 kWh per day output for each kilowatt of installed solar capacity. Spring follows closely, generating 4.79 kWh/day. However, the performance drops considerably during autumn (2.92 kWh/day) and reaches its lowest point in winter (1.46 kWh/day).

These figures indicate that Bregenz is most suitable for solar energy production from late spring through early autumn. During this period, longer days and higher sun angles contribute to increased solar irradiance, maximizing PV system efficiency.

Optimal Panel Installation

To maximize year-round solar energy production in Bregenz, Vorarlberg, fixed solar panels should be installed at a 40-degree tilt angle facing south. This orientation helps optimize the capture of available sunlight throughout the year, balancing the seasonal variations in sun position and intensity.

Environmental and Weather Considerations

Bregenz's location near Lake Constance and in the Alpine region introduces some environmental factors that could impact solar production:

• Frequent cloud cover and precipitation, especially during winter months
• Potential for snow accumulation on panels in winter

To mitigate these issues, consider installing panels at a steeper angle to promote snow sliding off and using high-efficiency panels that perform well in low-light conditions. Regular maintenance, including snow removal and cleaning, can help maintain optimal performance.

While Bregenz may not be ideal for year-round solar production, careful system design and installation can still yield significant energy output, particularly during the more favorable months. The substantial summer and spring production can offset the lower winter yields, making solar PV a viable renewable energy option for this Austrian city.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 124 locations across Austria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Austria by location

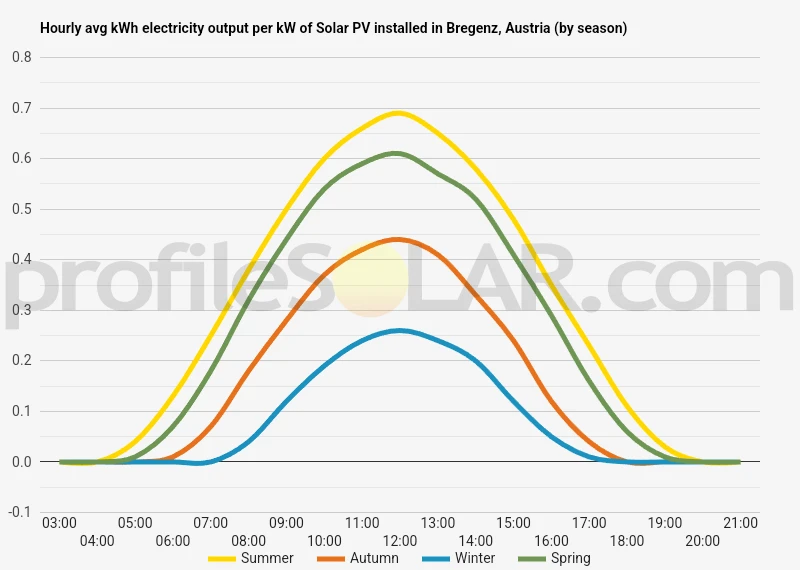

Solar output per kW of installed solar PV by season in Bregenz

Seasonal solar PV output for Latitude: 47.5065, Longitude: 9.7437 (Bregenz, Austria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Bregenz, Austria

To maximize your solar PV system's energy output in Bregenz, Austria (Lat/Long 47.5065, 9.7437) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bregenz, Austria

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bregenz, Austria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bregenz, Austria

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bregenz, Austria.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bregenz, Austria

Bregenz, a picturesque city in western Austria, is nestled in a unique topographical setting that combines diverse landscapes. The city sits at the eastern edge of Lake Constance (Bodensee), with the shoreline forming its northwestern boundary. This expansive lake provides a flat, open area at an elevation of about 400 meters above sea level. To the south and east of Bregenz, the terrain begins to rise dramatically as it transitions into the foothills of the Alps. The Pfänder mountain, standing at 1,064 meters, dominates the immediate landscape southeast of the city. This abrupt change in elevation creates a striking contrast between the lakeside lowlands and the mountainous backdrop.

Surrounding Topography

The area around Bregenz is characterized by a mix of gentle slopes, steep hillsides, and valleys. The Rhine Valley stretches to the south, offering a relatively flat expanse between the mountains. To the east, the terrain becomes increasingly mountainous as it extends into the Bregenz Forest (Bregenzerwald), a region known for its rolling hills, dense forests, and scattered alpine meadows. North of Bregenz, across the Austrian-German border, the landscape gradually flattens out into the Swabian Plateau. This area features gentler hills and more open spaces compared to the Alpine region to the south.

Potential for Solar PV Installation

When considering areas nearby Bregenz for large-scale solar PV installations, several factors come into play. The ideal locations would offer maximum sun exposure, minimal shading, and suitable land availability. The Rhine Valley, south of Bregenz, presents promising opportunities for solar farms. Its relatively flat terrain and open spaces could accommodate large arrays of solar panels. The valley's orientation also allows for good sun exposure throughout the day. Areas to the north, extending into the Swabian Plateau, might also be suitable. The gentler topography and fewer obstructions could provide ideal conditions for solar installations. However, care must be taken to balance energy production with agricultural land use in this region. While the mountainous areas east of Bregenz offer some south-facing slopes that could be good for solar energy capture, the challenges of installation and maintenance in steep terrain may make large-scale projects less feasible in these locations. It's important to note that any large-scale solar PV project would need to carefully consider environmental impact, local regulations, and grid connectivity. The scenic beauty of the region around Bregenz is a significant asset, so solar developments would need to be planned sensitively to preserve the landscape's aesthetic and ecological value.

Austria solar PV Stats as a country

Austria ranks 28th in the world for cumulative solar PV capacity, with 2,692 total MW's of solar PV installed. This means that 3.40% of Austria's total energy as a country comes from solar PV (that's 25th in the world). Each year Austria is generating 302 Watts from solar PV per capita (Austria ranks 14th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Austria?

Yes, there are several incentives for businesses wanting to install solar energy in Austria. The Austrian government offers a range of financial support measures, including grants and loans, as well as tax breaks and other incentives. Additionally, the Austrian Energy Agency (AEA) provides information on funding opportunities for renewable energy projects. Furthermore, businesses can benefit from the Feed-in Tariff (FiT), which guarantees a fixed price for electricity generated from renewable sources such as solar energy.

Do you have more up to date information than this on incentives towards solar PV projects in Austria? Please reach out to us and help us keep this information current. Thanks!
