Kapfenberg, Styria, Austria, positioned at latitude 47.4419° and longitude 15.295° in the Northern Temperate Zone, presents a moderate location for solar energy generation through photovoltaic (PV) systems, with significant seasonal variations in electricity production.

Seasonal Solar Performance

Solar energy production in Kapfenberg shows strong seasonal patterns. Summer stands out as the most productive period, generating approximately 5.93 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.24 kWh/day. Autumn yields considerably less at 2.92 kWh/day, while winter performance drops dramatically to just 1.64 kWh/day per kilowatt of installed capacity.

This pattern creates a nearly fourfold difference between summer and winter production, which is characteristic of mid-latitude locations in the Northern Hemisphere. The substantial seasonal variation means that annual energy planning must account for these fluctuations.

Optimal Panel Installation

For fixed solar panel installations in Kapfenberg, Styria, the ideal tilt angle to maximize year-round energy production is 41 degrees facing South. This specific angle has been calculated to optimize the annual solar energy capture based on the location's latitude and seasonal solar patterns.

Environmental and Weather Considerations

Several factors could potentially impact solar production in Kapfenberg:

• Winter snowfall can cover panels and significantly reduce production during the already low-yield winter months
• The Alpine region's variable cloud cover, especially during autumn and winter, contributes to the lower seasonal output
• Morning fog, common in valley locations like Kapfenberg, Styria, may delay daily production startup
• Occasional hail storms in summer months pose a physical risk to panel integrity

To mitigate these challenges, installation should include snow-shedding panel arrangements with sufficient tilt to allow snow to slide off. Durable, hail-resistant panels rated for Alpine conditions are recommended. Additionally, installing a monitoring system can help identify production issues quickly, while regular maintenance schedules should include panel cleaning, especially after snowfall events.

Overall, Kapfenberg represents a viable but not ideal location for solar PV installation, with excellent production potential from late spring through early autumn, but requiring supplementary energy sources during the winter months when production falls to less than one-third of summer values.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 124 locations across Austria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Austria by location

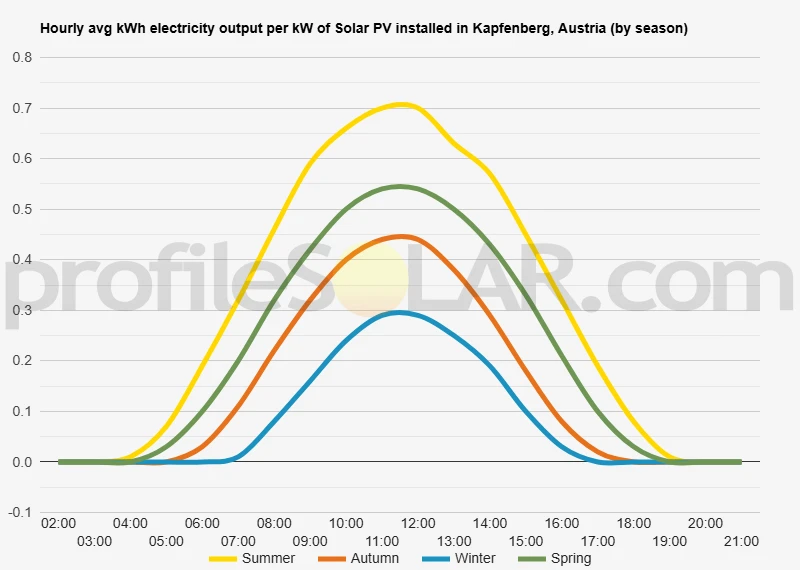

Solar output per kW of installed solar PV by season in Kapfenberg

Seasonal solar PV output for Latitude: 47.4419, Longitude: 15.295 (Kapfenberg, Austria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Kapfenberg, Austria

To maximize your solar PV system's energy output in Kapfenberg, Austria (Lat/Long 47.4419, 15.295) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kapfenberg, Austria

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kapfenberg, Austria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	51° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kapfenberg, Austria

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kapfenberg, Austria.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kapfenberg, Austria

Kapfenberg, Austria is nestled within a distinctive alpine topography characterized by significant variations in elevation. The city itself sits in the Mürz River valley, surrounded by the foothills of the Eastern Alps. This valley location creates a natural basin with the city center at approximately 500 meters above sea level, while the surrounding mountains rise to heights of 1,000-1,500 meters. The terrain around Kapfenberg features a mixture of steep forested slopes, rolling hills, and relatively flat valley floors. The Mürz River cuts through the landscape, creating a natural corridor that has historically facilitated transportation and settlement. The valley orientation runs roughly southeast to northwest, which influences how sunlight reaches different areas throughout the day.

Mountain Influences

The mountainous terrain surrounding Kapfenberg creates several microclimates within a relatively small area. The northern slopes receive less direct sunlight, particularly during winter months, while south-facing slopes benefit from increased solar exposure. These mountains also influence local wind patterns and precipitation, with some areas experiencing more cloud cover than others depending on prevailing weather systems. The higher elevations surrounding the city experience more severe winter conditions, including increased snowfall and cloud cover, which can impact solar potential during winter months. These mountains include the Hochschwab range to the west and the Fischbacher Alps to the east, creating a varied topographical profile within just a few kilometers of the city center.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, several areas around Kapfenberg present favorable conditions: The south-facing slopes at moderate elevations offer an excellent balance of solar exposure while avoiding the more extreme weather conditions of higher altitudes. These areas, particularly those between 600-800 meters elevation with minimal forest cover, would be prime candidates for solar development. The broader valley floors to the southeast of Kapfenberg, extending toward Bruck an der Mur, provide relatively flat terrain that simplifies construction and maintenance of large-scale installations. These areas benefit from good solar exposure without the complications of steep terrain. Some of the elevated plateaus in the region, particularly those with minimal tree cover and good southern exposure, could accommodate substantial solar arrays. These locations often avoid the morning fog that can settle in the valley bottom during certain seasons.

Topographical Challenges

The varied topography does present certain challenges for solar development. The steep slopes in many areas would require specialized installation techniques and potentially more extensive site preparation. Additionally, some valleys experience more frequent fog formation, particularly during autumn and winter mornings, which can temporarily reduce solar efficiency. Forest coverage is extensive throughout the region, meaning that significant clearing would be necessary for many potential sites, raising both environmental concerns and increasing development costs. The region's natural beauty and recreational value also means that visual impact assessments would be an important consideration for any large-scale development. The alpine nature of the landscape means that some areas experience seasonal shadowing from neighboring mountains, particularly during winter months when the sun's path is lower in the southern sky. This effect is most pronounced in narrow valleys and on north-facing slopes, making these areas less suitable for solar development despite their proximity to existing infrastructure.

Austria solar PV Stats as a country

Austria ranks 28th in the world for cumulative solar PV capacity, with 2,692 total MW's of solar PV installed. This means that 3.40% of Austria's total energy as a country comes from solar PV (that's 25th in the world). Each year Austria is generating 302 Watts from solar PV per capita (Austria ranks 14th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Austria?

Yes, there are several incentives for businesses wanting to install solar energy in Austria. The Austrian government offers a range of financial support measures, including grants and loans, as well as tax breaks and other incentives. Additionally, the Austrian Energy Agency (AEA) provides information on funding opportunities for renewable energy projects. Furthermore, businesses can benefit from the Feed-in Tariff (FiT), which guarantees a fixed price for electricity generated from renewable sources such as solar energy.

Do you have more up to date information than this on incentives towards solar PV projects in Austria? Please reach out to us and help us keep this information current. Thanks!
