Marsh Harbour, Central Abaco, Bahamas offers excellent conditions for year-round solar energy generation, making it a highly suitable location for solar PV installations. Located in the Northern Sub Tropics at coordinates 26.5479, -77.0669, this area benefits from abundant sunshine throughout most of the year.

Seasonal Solar Performance

The solar energy output at Marsh Harbour shows strong seasonal variation but maintains good production levels year-round:

• Spring delivers the highest output at 6.81 kWh per day per kW of installed capacity
• Summer follows closely with 6.73 kWh per day per kW
• Autumn drops to 4.84 kWh per day per kW
• Winter shows the lowest production at 4.22 kWh per day per kW

The spring and summer months represent the ideal times for solar generation at this location, producing approximately 60% more energy than the winter period. Even during the lowest production months, the output remains substantial enough to make solar installations economically viable.

Optimal Panel Configuration

For maximum year-round solar production at Marsh Harbour, Central Abaco, solar panels should be installed at a fixed tilt angle of 23 degrees facing South. This angle is calculated by analyzing daily solar elevation angles, optimal panel positioning, and weighting these factors using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several significant environmental factors can impact solar production in the Bahamas and require careful consideration during installation: **Hurricane Risk** poses the most serious threat to solar installations in this region. The Bahamas lies directly in the Atlantic hurricane belt, with the season typically running from June through November. High winds can damage or destroy improperly secured solar panels. **Salt Air Corrosion** presents an ongoing challenge due to the marine environment. The constant exposure to salt-laden air can corrode mounting hardware, electrical connections, and even the solar panels themselves over time, reducing efficiency and lifespan. **Heavy Rainfall and Storms** during certain seasons can temporarily reduce solar output and potentially cause water damage to electrical components if installations are not properly sealed and protected.

Preventative Installation Measures

To maximize energy production and system longevity at Marsh Harbour, Central Abaco, several protective measures should be implemented: **Hurricane-Resistant Mounting** requires using reinforced mounting systems designed to withstand high winds, typically rated for speeds exceeding 150 mph. Panels should be securely anchored to structural elements rather than just roof surfaces, and consider designs that allow panels to be quickly removed or secured before major storms. **Marine-Grade Components** are essential for combating salt corrosion. Use stainless steel or specially coated mounting hardware, marine-grade electrical conduits, and ensure all connections are properly sealed with corrosion-resistant materials. **Enhanced Waterproofing** involves installing proper drainage systems, using waterproof electrical enclosures, and ensuring all penetrations through roofing are professionally sealed to prevent water damage during heavy rains. **Regular Maintenance Scheduling** becomes more critical in this environment, including frequent cleaning to remove salt deposits, inspection of all connections for corrosion, and prompt replacement of any compromised components. Despite these challenges, Marsh Harbour's strong solar resource makes it an excellent location for solar energy generation when proper installation and maintenance practices are followed.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 5 locations across Bahamas. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Bahamas by location

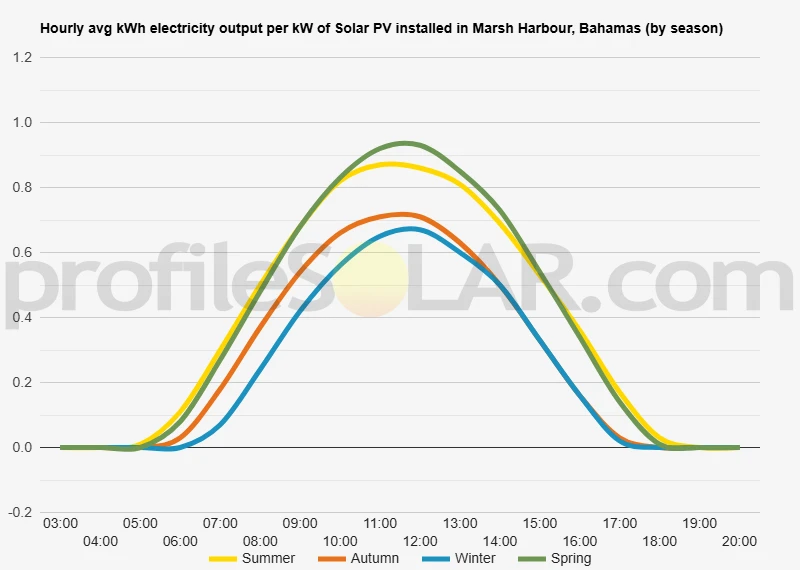

Solar output per kW of installed solar PV by season in Marsh Harbour

Seasonal solar PV output for Latitude: 26.5479, Longitude: -77.0669 (Marsh Harbour, Bahamas), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° South in Marsh Harbour, Bahamas

To maximize your solar PV system's energy output in Marsh Harbour, Bahamas (Lat/Long 26.5479, -77.0669) throughout the year, you should tilt your panels at an angle of 23° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Marsh Harbour, Bahamas

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Marsh Harbour, Bahamas. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° South in Summer	31° South in Autumn	42° South in Winter	20° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Marsh Harbour, Bahamas

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Marsh Harbour, Bahamas.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Marsh Harbour, Bahamas

Topographical Features of Marsh Harbour

Marsh Harbour sits on Great Abaco Island in the northern Bahamas, characterized by the typical low-lying limestone terrain found throughout the Bahamian archipelago. The area features gently rolling hills with elevations rarely exceeding 100 feet above sea level. The landscape consists primarily of flat to moderately undulating terrain interspersed with numerous wetlands, mangrove swamps, and tidal creeks that give the settlement its name.

The immediate vicinity of Marsh Harbour displays a mixed topography of developed coastal areas along the Sea of Abaco to the west and more natural terrain extending inland to the east. The coastline features shallow bays, protected harbors, and numerous small cays that create a complex network of waterways. Moving inland from the harbor, the terrain gradually rises through a series of low ridges and valleys, with the highest points located several miles to the east and southeast.

The underlying geology consists of porous limestone bedrock typical of the Bahamas, which creates well-drained soils despite the relatively flat topography. This limestone foundation supports a landscape dotted with solution holes, small caves, and seasonal ponds that fill during the rainy season. The vegetation transitions from coastal mangroves and salt-tolerant plants near the water to pine forests and tropical hardwood coppice on the higher, drier ground inland.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Marsh Harbour would be the elevated inland areas extending east and southeast from the town center. These higher elevations, while still modest by continental standards, offer several advantages including better drainage, reduced flood risk, and fewer conflicts with sensitive coastal ecosystems. The gently sloping terrain in these areas provides natural drainage while remaining sufficiently flat to minimize grading requirements for solar panel installation.

The pine forest areas located roughly 3-5 miles inland from Marsh Harbour present particularly favorable conditions for solar development. These locations feature relatively stable soils over limestone bedrock, minimal slope variations, and existing access via inland roads. The cleared areas within this zone, including abandoned agricultural land and areas previously impacted by hurricanes, would require minimal vegetation removal and environmental disturbance.

Areas to the north and northeast of Marsh Harbour also show promise for solar installations, particularly where the terrain rises above the immediate coastal influence. These locations benefit from good drainage characteristics and tend to have fewer wetland constraints compared to areas closer to the harbor and its associated creek systems. The slightly elevated positions also provide natural protection from storm surge and coastal flooding, important considerations given the Bahamas' exposure to hurricanes.

Locations to avoid for large-scale solar development include the extensive wetland areas, mangrove systems, and low-lying zones prone to seasonal flooding. The immediate coastal areas, while offering unobstructed exposure, present challenges related to salt spray, storm surge vulnerability, and potential conflicts with tourism and marine activities that are vital to the local economy.
