Affligem, Flanders, Belgium, located at 50.9087° N, 4.106° E, offers moderate potential for solar PV energy generation throughout the year, with significant seasonal variations. This location in the Northern Temperate Zone experiences substantial differences in solar energy production between summer and winter months.

Seasonal Solar Production

Solar panels in Affligem demonstrate clear seasonal patterns in electricity generation. Summer is the most productive season, yielding an average of 5.20 kWh per day for each kilowatt of installed capacity. Spring follows closely with 4.57 kWh/day per kW. Production decreases substantially in autumn to 2.40 kWh/day per kW, while winter shows the lowest output at just 1.13 kWh/day per kW of installed capacity.

This means a typical 5 kW residential system would generate approximately 26 kWh on an average summer day, but only about 5.65 kWh on a winter day—less than a quarter of the summer production. The significant difference between seasons highlights the need for supplementary energy sources during winter months.

Optimal Panel Installation

For a fixed panel installation in Affligem, Flanders, the ideal tilt angle to maximize year-round energy production is 43 degrees facing South. This angle optimizes the annual solar harvest by balancing seasonal variations and accounting for the Earth's elliptical orbit.

Environmental and Weather Considerations

Several factors can impact solar production in Affligem:

• Frequent cloud cover and precipitation throughout the year, particularly in autumn and winter, significantly reduces solar irradiance
• Occasional snow accumulation in winter can temporarily block panels
• Moderate air pollution from nearby urban areas and industrial activities can reduce solar intensity
• Morning fog, common in this region, can delay peak production hours

Preventative Measures

To maximize solar energy production despite these challenges, consider implementing these solutions:

• Install self-cleaning panels with hydrophobic coatings to minimize dirt and snow accumulation
• Use microinverters or power optimizers to reduce the impact of partial shading
• Consider a slight adjustment from the ideal 43° tilt to promote natural snow sliding
• Implement a regular cleaning and maintenance schedule, particularly before winter and after pollen season
• Install a monitoring system to quickly identify and address performance issues

While Affligem's location isn't ideal for year-round solar production compared to sunnier regions, proper system design and maintenance can still make solar PV a valuable component of a diversified energy strategy, especially during the productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 201 locations across Belgium. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Belgium by location

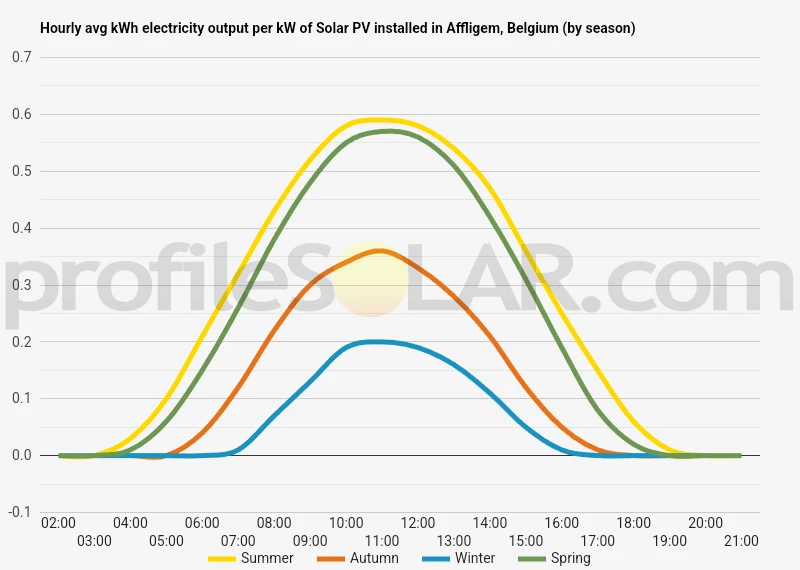

Solar output per kW of installed solar PV by season in Affligem

Seasonal solar PV output for Latitude: 50.9087, Longitude: 4.106 (Affligem, Belgium), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Affligem, Belgium

To maximize your solar PV system's energy output in Affligem, Belgium (Lat/Long 50.9087, 4.106) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Affligem, Belgium

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Affligem, Belgium. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Affligem, Belgium

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Affligem, Belgium.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Affligem, Belgium

The topography around Affligem, Belgium presents a gently undulating landscape characteristic of the Flemish lowlands. Situated in the province of Flemish Brabant, Affligem rests at an elevation of approximately 25-40 meters above sea level, with subtle variations in the surrounding terrain. The area features modest hills and shallow valleys, creating a softly rolling countryside rather than dramatic relief. This region forms part of the transition between the flat coastal plains of northern Belgium and the more pronounced hills of central Belgium to the south. The landscape has been shaped by centuries of agricultural use, with open fields interspersed with small wooded areas and stream valleys. The Dender River flows not far from Affligem, influencing the local topography with its shallow valley.

Solar PV Potential in the Region

When considering areas near Affligem suitable for large-scale solar PV installation, several topographical factors come into play. The gently sloping fields to the west and southwest of Affligem offer promising conditions for solar development. These areas benefit from slightly elevated positions with minimal shadowing from natural features, allowing for optimal solar exposure throughout the day. The agricultural plains stretching between Affligem and nearby Aalst present relatively flat terrain with good solar access. These areas already feature open landscapes with minimal tree cover, reducing potential shading issues that would affect solar panel efficiency.

Topographical Considerations

The modest elevation changes in the region actually provide some advantages for solar installations. The subtle south-facing slopes found in parts of the surrounding countryside can increase solar panel productivity compared to perfectly flat terrain, particularly during winter months when the sun's angle is lower. It's worth noting that the region's topography has been significantly influenced by human activity over centuries. The landscape features a network of small roads, agricultural divisions, and scattered settlements that would need to be factored into any large-scale solar planning.

Challenges and Opportunities

While the topography is generally favorable, some areas near Affligem present challenges for solar development. The stream valleys and more densely wooded sections to the east would be less suitable due to increased shadowing and potential flooding concerns. Additionally, the historic and cultural significance of certain landscapes around Affligem, including the famous abbey, would likely restrict development in those specific areas. The most promising locations would be the agricultural plateaus that offer sufficient space for large installations while maintaining adequate distance from residential areas. These areas combine favorable topography with existing infrastructure access, making them practical candidates for solar PV development from a geographical perspective.

Belgium solar PV Stats as a country

Belgium ranks 19th in the world for cumulative solar PV capacity, with 6,585 total MW's of solar PV installed. This means that 6.60% of Belgium's total energy as a country comes from solar PV (that's 10th in the world). Each year Belgium is generating 569 Watts from solar PV per capita (Belgium ranks 5th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Belgium?

Yes, there are several incentives for businesses wanting to install solar energy in Belgium. The Belgian government offers a range of financial support measures for businesses that invest in renewable energy sources such as solar power. These include tax deductions, grants and subsidies, as well as access to low-interest loans. Additionally, the Flemish Energy Agency (VEA) provides free advice and guidance on how to make the most of these incentives.

Do you have more up to date information than this on incentives towards solar PV projects in Belgium? Please reach out to us and help us keep this information current. Thanks!
