Solar Energy Potential in Ath, Wallonia, Belgium

Ath, Wallonia, Belgium, located at coordinates 50.6301, 3.7729 in the Northern Temperate Zone, presents moderate potential for solar PV energy generation with significant seasonal variations. This location experiences typical European seasonal patterns that affect solar energy production throughout the year. The solar energy output in Ath follows a predictable seasonal pattern. During summer, panels can generate approximately 5.34kWh per day for each kilowatt of installed capacity, making this the most productive season. Spring follows closely behind with 4.90kWh/day, showing that the March to May period offers excellent generation potential as well. Production drops considerably during autumn to 2.49kWh/day, while winter represents the most challenging period with only 1.14kWh/day per installed kilowatt. This significant seasonal variation means that annual energy planning must account for these differences, with winter production being less than a quarter of summer output.

Optimal Panel Installation

For fixed solar panel installations in Ath, Wallonia, the ideal tilt angle to maximize year-round energy production is 43 degrees facing South. This specific angle has been calculated to optimize solar capture across all seasons, taking into account the location's latitude and the Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

Several environmental factors in Ath can impact solar energy production:

• Cloud cover and precipitation: Belgium's climate includes frequent overcast conditions, particularly in autumn and winter, which significantly reduces solar radiation reaching panels.
• Snow accumulation: Winter snowfall can temporarily cover panels, blocking sunlight entirely if not removed.
• Atmospheric pollution: Being in a developed region of Europe, occasional air pollution can reduce solar irradiance.

To mitigate these challenges, several preventative measures are recommended during installation: Installing panels at the precise 43-degree angle will help shed snow more effectively. Additionally, implementing a regular cleaning schedule, especially after snowfall or during periods of high pollen or dust, will maintain optimal performance. Some installations may benefit from automated cleaning systems or snow removal tools. Microinverters or power optimizers can help manage partial shading issues that occur more frequently during winter months when the sun is lower in the sky. Finally, slightly oversizing the system capacity can help compensate for the significant winter production decrease, ensuring more consistent energy availability throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 201 locations across Belgium. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Belgium by location

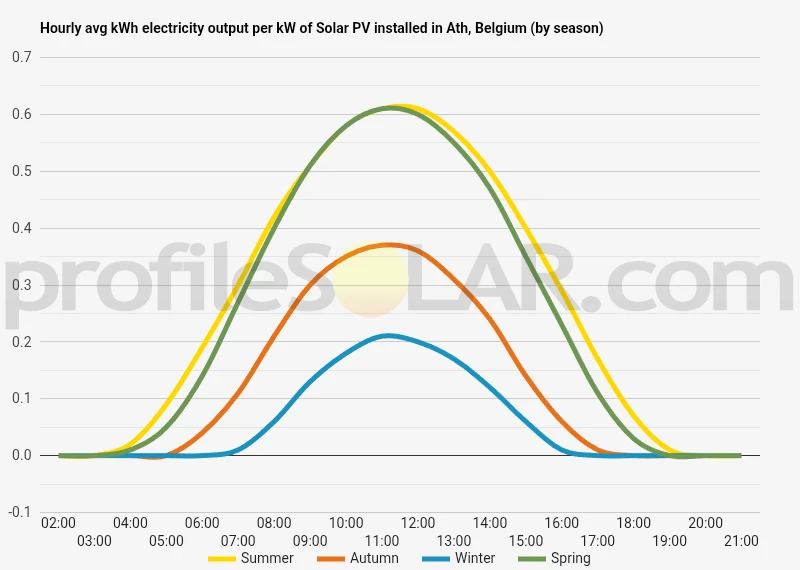

Solar output per kW of installed solar PV by season in Ath

Seasonal solar PV output for Latitude: 50.6301, Longitude: 3.7729 (Ath, Belgium), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Ath, Belgium

To maximize your solar PV system's energy output in Ath, Belgium (Lat/Long 50.6301, 3.7729) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ath, Belgium

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ath, Belgium. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	63° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ath, Belgium

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ath, Belgium.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ath, Belgium

The terrain around Ath, Belgium presents a gently undulating landscape characteristic of the western Belgian lowlands. Located in the province of Hainaut, Ath sits within a broader geographic context of modest hills and shallow valleys that define much of this region. The elevation generally ranges between 30 to 100 meters above sea level, creating a subtly varied topography rather than dramatic relief. The area features predominantly agricultural lands interspersed with patches of woodland. The Dendre river flows through this landscape, having carved a shallow valley over millennia. This waterway has historically influenced settlement patterns and land use in the region. The gentle slopes facing south and southwest are particularly notable when considering optimal orientation for capturing solar radiation.

Topographical Considerations for Solar Development

The modest elevation differences around Ath create several favorable conditions for potential solar photovoltaic development. The gradual hills to the north and east of the town provide south-facing slopes that would receive more direct sunlight throughout the year. These natural inclines, though gentle, can contribute to improved energy capture compared to perfectly flat terrain. Areas to the south and southwest of Ath, particularly the slightly elevated agricultural plateaus, present promising locations for large-scale solar installations. These zones combine favorable orientation with relatively unobstructed horizons, minimizing shadowing effects from natural features. The agricultural character of much of this land also means fewer tall structures or dense forests that might otherwise cast shadows.

Optimal Zones for Large-Scale Solar Development

The most suitable areas for substantial solar PV installations near Ath would be the agricultural plateaus extending southward toward the communities of Ormeignies and Blicquy. These locations combine several advantageous characteristics: gentle south-facing slopes, minimal flooding risk due to slight elevation, and existing agricultural use that might be compatible with solar development. Secondary potential exists in the slightly more elevated terrain northeast of Ath, where the landscape rises gradually toward Lessines. While these areas have favorable elevation and orientation, they must be evaluated for potential conflicts with other land uses and ecological considerations. The relatively flat agricultural expanses west of Ath toward Leuze-en-Hainaut also merit consideration, though these would benefit less from topographical advantages and rely more on the inherent solar resource of the region. These flatter areas would require careful design to maximize efficiency without the natural benefits of south-facing slopes. The river valley itself, while flat and accessible, presents greater constraints due to potential flooding risks and higher value for other uses. Similarly, the more densely wooded areas scattered throughout the region would require clearing and present greater ecological impacts, making them less ideal for large-scale solar development.

Belgium solar PV Stats as a country

Belgium ranks 19th in the world for cumulative solar PV capacity, with 6,585 total MW's of solar PV installed. This means that 6.60% of Belgium's total energy as a country comes from solar PV (that's 10th in the world). Each year Belgium is generating 569 Watts from solar PV per capita (Belgium ranks 5th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Belgium?

Yes, there are several incentives for businesses wanting to install solar energy in Belgium. The Belgian government offers a range of financial support measures for businesses that invest in renewable energy sources such as solar power. These include tax deductions, grants and subsidies, as well as access to low-interest loans. Additionally, the Flemish Energy Agency (VEA) provides free advice and guidance on how to make the most of these incentives.

Do you have more up to date information than this on incentives towards solar PV projects in Belgium? Please reach out to us and help us keep this information current. Thanks!
