Solar Energy Generation in Chaumont-Gistoux, Wallonia, Belgium

Chaumont-Gistoux, Wallonia, Belgium, located in the Northern Temperate Zone, presents a moderate opportunity for solar energy generation throughout the year. This location experiences significant seasonal variations in solar energy production, which affects the overall efficiency of photovoltaic (PV) systems. The solar energy production at this location follows a predictable seasonal pattern. During summer months, solar panels can generate approximately 5.20 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, with daily generation of about 4.57 kWh per kW. Production decreases substantially in autumn to 2.40 kWh per day per kW, and reaches its lowest point in winter with only 1.13 kWh per day per kW.

Seasonal Considerations

The significant difference between summer and winter production (nearly 5 times more energy in summer) indicates that Chaumont-Gistoux has pronounced seasonal variations. This means solar energy systems in this location will produce most of their annual output during the spring and summer months, with notably reduced output during autumn and especially winter. For a fixed panel installation at this location, the ideal angle to tilt panels to maximize total year-round production from solar PV is 43 degrees facing South. This optimized tilt helps balance seasonal variations and maximize annual energy harvest.

Environmental and Weather Factors

Several environmental and weather factors could impact solar production in Chaumont-Gistoux:

• Cloud cover is a significant factor in Belgium, which experiences frequent overcast conditions, particularly in autumn and winter months.
• Precipitation and humidity levels can reduce solar efficiency through light diffusion.
• Snow accumulation during winter months may temporarily cover panels, though the steep 43-degree tilt helps with natural snow shedding.
• Fog, common in the region during morning hours, can delay peak production times.

Preventative Measures

To maximize solar energy production despite these challenges, several preventative measures can be implemented:

• Install self-cleaning glass or hydrophobic coatings to minimize dirt and water accumulation.
• Consider snow removal systems for winter months, though the recommended 43-degree tilt already helps with natural shedding.
• Implement microinverters or power optimizers to minimize the impact of partial shading.
• Regular maintenance and cleaning, especially before peak production seasons.
• Consider slight east-west orientation adjustments if morning fog is particularly persistent.

While Chaumont-Gistoux is not ideal for year-round solar production due to its significant seasonal variations, proper system design with the recommended 43-degree south-facing tilt can still make solar energy a viable renewable energy source, particularly when production is viewed as an annual average rather than consistent daily output.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 201 locations across Belgium. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Belgium by location

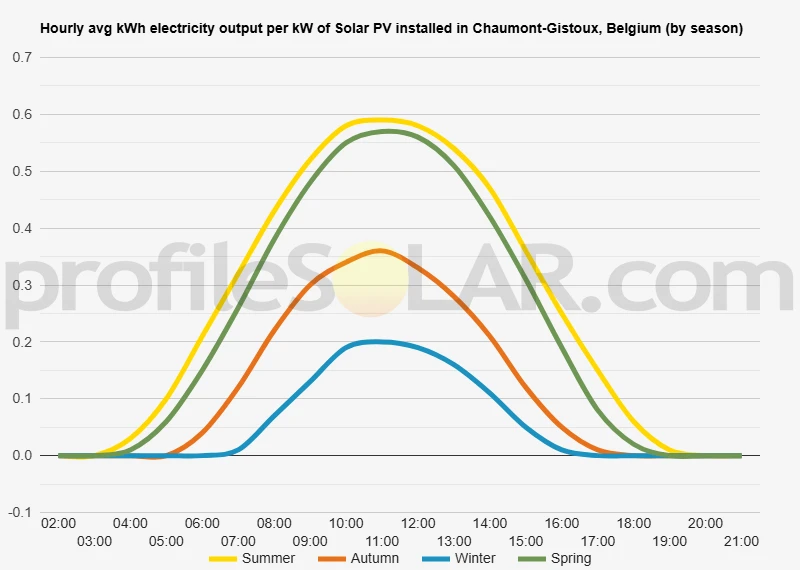

Solar output per kW of installed solar PV by season in Chaumont-Gistoux

Seasonal solar PV output for Latitude: 50.6789, Longitude: 4.7155 (Chaumont-Gistoux, Belgium), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Chaumont-Gistoux, Belgium

To maximize your solar PV system's energy output in Chaumont-Gistoux, Belgium (Lat/Long 50.6789, 4.7155) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chaumont-Gistoux, Belgium

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chaumont-Gistoux, Belgium. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chaumont-Gistoux, Belgium

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chaumont-Gistoux, Belgium.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chaumont-Gistoux, Belgium

Chaumont-Gistoux, located in the province of Walloon Brabant in Belgium, presents a varied and interesting topographical landscape. The area sits within the natural region known as the Hesbaye Brabançonne, characterized by gently rolling hills, shallow valleys, and modest elevation changes typical of central Belgium's countryside. The terrain around Chaumont-Gistoux consists primarily of undulating plateaus with elevations generally ranging between 100 and 160 meters above sea level. The landscape has been shaped by the Dyle River basin, with several small streams and tributaries creating shallow valleys that cut through the otherwise modest relief. This creates a patchwork of slightly elevated areas separated by gentle depressions where waterways flow.

Distinctive Topographical Features

The local topography shows a gradual slope that generally declines from east to west. The eastern portions of Chaumont-Gistoux sit at higher elevations, while moving westward toward Wavre and the Dyle Valley, the elevation gradually decreases. This gentle gradient is punctuated by small hills and ridges that rarely exceed 30-40 meters in relative height from the surrounding terrain. The area's soil composition consists predominantly of loamy soil typical of the Hesbaye region, with some sandy outcrops particularly in elevated areas. This fertile loess-derived soil has historically supported extensive agricultural activity, which remains visible in the landscape today with numerous fields and farmlands interspersed with wooded areas and settlements.

Potential Areas for Solar PV Development

When considering locations suitable for large-scale solar photovoltaic installations near Chaumont-Gistoux, several topographical factors become relevant. The gently sloping south-facing hillsides present in the northern portions of the municipality offer advantageous conditions for solar capture. These areas benefit from favorable sun exposure throughout the day while avoiding the shadier valley bottoms. The plateaus to the east and southeast of the main settlement area, with their relatively flat terrain and minimal tree cover, present particularly promising locations for solar development. These elevated areas experience less fog accumulation than the valley locations and offer unobstructed exposure to sunlight. The agricultural plateaus between Chaumont-Gistoux and neighboring Walhain also merit consideration due to their open character and suitable elevation. Areas to avoid would include the more densely wooded sections, particularly in the southwest portions of the municipality where forest cover creates natural shading. Similarly, the narrow valley bottoms formed by local streams like the Train and its tributaries are less suitable due to potential shading from surrounding higher ground and increased humidity levels.

Land Use Considerations

It's worth noting that the topographical suitability must be balanced with existing land use patterns. The region maintains a strong agricultural character, with significant portions of land dedicated to farming. The most promising areas for solar development from a purely topographical perspective often coincide with productive agricultural land, creating potential land-use conflicts. Some of the moderately sloped former industrial or quarry sites in the broader region might offer compromise locations where solar installations could be developed without impacting prime agricultural land. These areas often combine favorable topography with already-altered landscapes where solar development may represent appropriate adaptive reuse. The southeastern edges of the municipality, where the terrain begins to flatten toward the Gembloux plateau, combine advantageous elevation, aspect, and relatively lower agricultural productivity, potentially offering an optimal balance of topographical suitability and reduced land-use conflict for large-scale solar PV development.

Belgium solar PV Stats as a country

Belgium ranks 19th in the world for cumulative solar PV capacity, with 6,585 total MW's of solar PV installed. This means that 6.60% of Belgium's total energy as a country comes from solar PV (that's 10th in the world). Each year Belgium is generating 569 Watts from solar PV per capita (Belgium ranks 5th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Belgium?

Yes, there are several incentives for businesses wanting to install solar energy in Belgium. The Belgian government offers a range of financial support measures for businesses that invest in renewable energy sources such as solar power. These include tax deductions, grants and subsidies, as well as access to low-interest loans. Additionally, the Flemish Energy Agency (VEA) provides free advice and guidance on how to make the most of these incentives.

Do you have more up to date information than this on incentives towards solar PV projects in Belgium? Please reach out to us and help us keep this information current. Thanks!
