Geraardsbergen, Flanders, Belgium, situated at latitude 50.7773 and longitude 3.8826, presents a mixed picture for solar energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

The solar energy potential in Geraardsbergen fluctuates considerably across the seasons. Summer stands out as the most productive period, with an average daily output of 5.35 kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.91 kWh/day. However, the performance drops significantly during autumn, with only 2.48 kWh/day, and reaches its lowest point in winter, producing a mere 1.14 kWh/day.

These figures highlight that the location is far from ideal for year-round solar energy production. The stark contrast between summer and winter outputs indicates that solar PV systems in Geraardsbergen will be most effective during the warmer months, particularly from late spring through early autumn.

Optimal Panel Positioning

To maximize year-round solar energy production in Geraardsbergen, Flanders, fixed solar panels should be tilted at an angle of 43 degrees facing south. This optimal angle takes into account the location's latitude and the sun's position throughout the year, balancing the seasonal variations to achieve the best possible annual output.

Environmental and Weather Factors

Several factors can potentially impede solar production in Geraardsbergen:

1. Cloud cover: Belgium's climate is known for frequent overcast conditions, especially in autumn and winter, which can significantly reduce solar irradiance.
2. Rainfall: The region experiences considerable precipitation throughout the year, which can affect panel efficiency and require more frequent cleaning.
3. Short winter days: Being in the Northern Temperate Zone, Geraardsbergen experiences short daylight hours during winter, further limiting solar energy production.

Preventative Measures

To mitigate these challenges and enhance solar energy production, consider the following measures:

• Use high-efficiency panels designed to perform well in low-light conditions
• Implement a robust cleaning schedule to combat the effects of rainfall and potential debris
• Consider incorporating solar tracking systems to maximize exposure during limited daylight hours
• Explore the possibility of complementary renewable energy sources to offset the winter production deficit

While Geraardsbergen's location presents challenges for year-round solar energy production, careful planning and implementation of these strategies can help maximize the potential of solar PV systems in this Belgian town.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 201 locations across Belgium. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Belgium by location

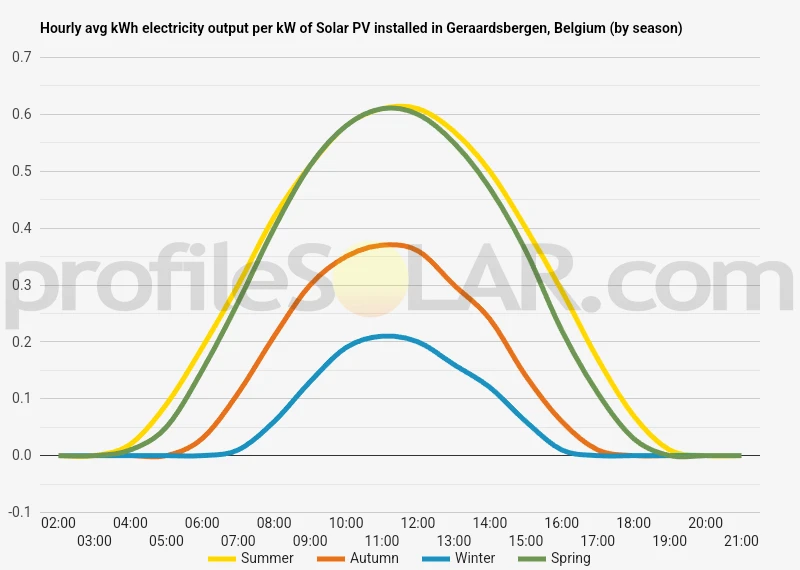

Solar output per kW of installed solar PV by season in Geraardsbergen

Seasonal solar PV output for Latitude: 50.7773, Longitude: 3.8826 (Geraardsbergen, Belgium), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Geraardsbergen, Belgium

To maximize your solar PV system's energy output in Geraardsbergen, Belgium (Lat/Long 50.7773, 3.8826) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Geraardsbergen, Belgium

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Geraardsbergen, Belgium. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Geraardsbergen, Belgium

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Geraardsbergen, Belgium.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Geraardsbergen, Belgium

The area surrounding Geraardsbergen, Belgium, is characterized by a diverse and picturesque landscape typical of the Flemish Ardennes region. This part of Belgium features a gently rolling topography with a mix of low hills, shallow valleys, and modest plateaus. The terrain is generally undulating, with elevations ranging from about 20 to 110 meters above sea level. The city of Geraardsbergen itself is situated along the Dender River, which has carved a shallow valley through the landscape. The famous Muur van Geraardsbergen, a steep cobbled climb often featured in cycling races, is a notable topographical feature rising abruptly from the surrounding area. To the east and south of Geraardsbergen, the land becomes more pronounced in its elevation changes, with steeper hills and deeper valleys. This area is part of the Flemish Ardennes, known for its scenic beauty and challenging cycling routes. To the west and northwest, the terrain gradually becomes flatter as it transitions towards the Flemish lowlands.

Suitability for Large-Scale Solar PV

When considering areas nearby Geraardsbergen for large-scale solar PV installations, several factors need to be taken into account. The most suitable locations would generally be: The flatter areas to the west and northwest of Geraardsbergen would be the most promising for large-scale solar PV installations. These areas offer more expansive, open spaces with fewer topographical obstacles, making it easier to set up large arrays of solar panels. The gentler slopes in these regions would also minimize the need for extensive land preparation. Some of the plateau areas in the surrounding region could also be suitable, provided they are not heavily forested or used for agriculture. These elevated, relatively flat areas could offer good exposure to sunlight throughout the day. It's important to note that while the hilly areas to the east and south might seem attractive due to their elevated position, they are often not ideal for large-scale installations. The steeper slopes and more varied terrain can make construction and maintenance more challenging and expensive. Any potential solar PV project would need to carefully consider local land use regulations, environmental impact, and the region's cultural and historical significance. The Flemish Ardennes are known for their natural beauty and are popular for tourism and recreation, which could limit the available areas for large-scale solar developments.

Belgium solar PV Stats as a country

Belgium ranks 19th in the world for cumulative solar PV capacity, with 6,585 total MW's of solar PV installed. This means that 6.60% of Belgium's total energy as a country comes from solar PV (that's 10th in the world). Each year Belgium is generating 569 Watts from solar PV per capita (Belgium ranks 5th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Belgium?

Yes, there are several incentives for businesses wanting to install solar energy in Belgium. The Belgian government offers a range of financial support measures for businesses that invest in renewable energy sources such as solar power. These include tax deductions, grants and subsidies, as well as access to low-interest loans. Additionally, the Flemish Energy Agency (VEA) provides free advice and guidance on how to make the most of these incentives.

Do you have more up to date information than this on incentives towards solar PV projects in Belgium? Please reach out to us and help us keep this information current. Thanks!
