Location estimate
Hoeilaart
Flanders · Belgium
Approximate location reference—not a rooftop, property or survey point.
Seasonal average-day estimates
Selected capacity 1 kWp
Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.
Logarithmic slider: each labelled interval is 10× capacity. Energy scales linearly with capacity.
Arrow keys change capacity by about 2.3 percent per step. Page Up and Page Down move one labelled interval. Home selects 0.1 kWp; End selects 10 MWp.
Enter exact capacity and unit
Enter at least 0.1 kWp. Decimal point or comma; no thousands separators. 1 MWp = 1,000 kWp. Changing units keeps the same capacity. Exact entry keeps your precision; slider adjustments select three-significant-figure sizes.
There is no fixed upper capacity limit. Values and results must fit the calculator’s numeric range; the slider’s range is not an exact-entry limit.
Showing seasonal average-day estimates for 1 kWp.
Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.
Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.
Summer
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Autumn
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Winter
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Spring
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Very large results use scientific notation; an approximate capacity label is marked ≈. Exact capacity and full results remain available under Source basis and scaling limits.
Shared scale: 0–6.00 kWh/day.
I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.
This is illustrative scaling, not a site-specific production prediction.
Source basis and scaling limits
Original seasonal average-day estimates for Hoeilaart, in kWh/kWp/day.
I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.
| Season | Recorded kWh/kWp/day | Exact selected-capacity result · kWh/day |
|---|---|---|
| Summer | 5.25 | 5.25 × 1 kWp = 5.25 kWh/day |
| Autumn | 2.46 | 2.46 × 1 kWp = 2.46 kWh/day |
| Winter | 1.18 | 1.18 × 1 kWp = 1.18 kWh/day |
| Spring | 4.63 | 4.63 × 1 kWp = 4.63 kWh/day |
Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.
Full results rounded to two decimal places
These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.
- Summer · kWh/day
- 5.25
- Autumn · kWh/day
- 2.46
- Winter · kWh/day
- 1.18
- Spring · kWh/day
- 4.63
The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.
These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.
Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.
Year-round panel setup
- Tilt from horizontal
- 43°
- Facing direction
- South
Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.
Suggested seasonal tilts
Tilt from horizontal · facing direction
- Summer
Jun, Jul, Aug - 34°South
- Autumn
Sep, Oct, Nov - 54°South
- Winter
Dec, Jan, Feb - 64°South
- Spring
Mar, Apr, May - 43°South
The seasonal electricity figures do not model gains from switching between these settings.
About this orientation
This schematic shows the year-round panel tilt and facing direction for Hoeilaart, Flanders, Belgium.
For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.
I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.
The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.
Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.
Seasonal orientation diagrams
These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.
Summer
34° tilt · South
Illustrative direction; exact azimuth not recorded.
Autumn
54° tilt · South
Illustrative direction; exact azimuth not recorded.
Winter
64° tilt · South
Illustrative direction; exact azimuth not recorded.
Spring
43° tilt · South
Illustrative direction; exact azimuth not recorded.
View larger

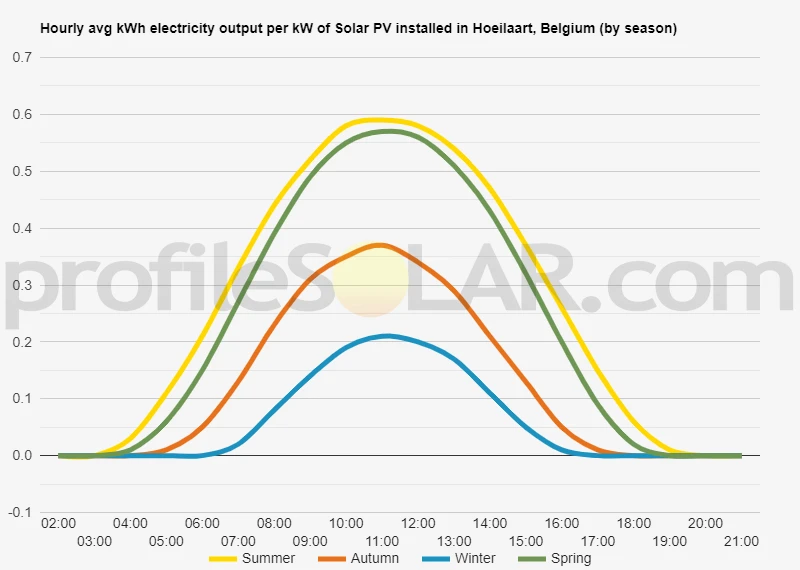

Hourly electricity pattern for Hoeilaart, Belgium
Hourly profiles by season — Hoeilaart, Belgium · 2021
This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.
2021 is the method’s reference year, not verified year coverage for every point in this historical chart.
The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.
Row-spacing planning
Planning solar-panel row spacing in Hoeilaart
Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.
Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.
Panel and spacing inputs
Along the tilted surface, across the row. Greater than 0, up to 20 m; 2 m is an example.
Optional extra space, 0–100 m.
Starts at the recorded year-round tilt. Decimal entry is kept at your entered precision.
Linear slider: arrows select the next whole degree; Page Up/Down 10°, Home 0°, End 90°. Only moving it changes your numeric entry.
Results update automatically.
Example calculated with a 2 m panel surface length. Replace that example with the dimension of the module you are considering.
Example calculated with a 2 m panel surface length. Replace that example with the dimension of the module you are considering. Other published location estimates remain available.
Adjust the inputs to update this diagram and its results.
Row pitch including margin
≈ m
- Sunlight ray
- First row’s ground shadow
- Shadow endpoint
At this scale the panel surfaces are very small. The row labels locate them; exact dimensions remain available below.
- Calculated clear gap
- ≈ m
- Added margin
- ≈ 0 m
- Gap including margin
- ≈ m
- Panel horizontal footprint
- ≈ m
- Panel vertical rise
- ≈ m
- Pitch before margin
- ≈ m
Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.
One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.
Detailed inputs and unrounded results
More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.
- Panel surface length
- 2 m
- Tilt up from horizontal
- 43°
- Added margin
- 0 m
- Latitude from the catalogue
- 50.767000000000000000° (Northern Hemisphere)
- Panel horizontal footprint
- 1.462707403238341 m
- Panel vertical rise
- 1.363996720124997 m
- Calculated clear gap
- 4.825656998340607 m
- Pitch before margin
- 6.2883644015789475 m
- Gap including margin
- 4.825656998340607 m
- Row pitch including margin
- 6.2883644015789475 m
- Design solar elevation
- 15.783217153186348°
How this spacing estimate is calculated
I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.
δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).
Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.
The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.
The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.
Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.
Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.
Solar context for Hoeilaart
Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.
Hoeilaart's wooded setting makes the actual roof horizon a useful companion to its seasonal solar figures. The Sonian Forest is a major part of the municipality, while the IJse links wooded headwaters, ponds and the settled village landscape.
Read the full article
For each 1 kW of rated panel capacity, our estimated daily averages are 5.25 kWh/day in summer, 2.46 kWh/day in autumn, 1.18 kWh/day in winter and 4.63 kWh/day in spring. Summer is highest, with spring next. The winter contribution is smaller, so demand that rises in winter should be compared with the winter value rather than the summer peak. The year-round fixed-panel reference is 43° from horizontal, facing South. It is a broad output-weighted estimate using simplified solar geometry. The chosen roof's direction, pitch and usable space may lead to a different practical arrangement. The local value of a shade assessment is easy to see in this forest-and-village setting. Trees and neighbouring buildings can interrupt a roof's sunlight, but the effect depends on their position relative to the array. A woodland description alone cannot quantify it, and trees should not be treated simply as obstructions to remove. Cloud cover is a separate part of the available solar resource. Trackers or higher-efficiency modules do not establish that a particular property will overcome low-light periods. A clear proposal can instead compare the generation pattern with demand and then examine the actual building and its surroundings.
Topography around Hoeilaart
These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.
Hoeilaart lies southeast of Brussels, with the Sonian Forest and the IJse valley giving it a distinctive landscape. The municipality includes extensive woodland as well as a developed village core and open areas between them.
Read the full topography description
The IJse rises in the forest and flows through Hoeilaart before continuing towards Overijse and Huldenberg. Its upper course has been altered into a sequence of ponds, including the Koningsvijvers, with marshy spring-fed ground upstream. Water and woodland are therefore connected parts of the local terrain. The forest is not simply a flat backdrop. Its hillier ground, clearings and pond valleys form varied habitats, while the settled valley has a different pattern of buildings and infrastructure. That contrast is more informative than describing all surrounding open land as available farmland. For solar, the actual proposal should identify its relationship to those features. A roof near a wooded edge may have a different horizon from one within the village core, and a ground-level proposal near the valley needs an appropriate understanding of water and current land use. Hoeilaart's forest and IJse setting supports a locally focused investigation. It does not justify selecting land near Waterloo or Zaventem, or a general southern sector, as a suitable alternative to an assessed site within the municipality.
Technical location reference
Approximate map point used for Hoeilaart, Belgium
This coordinate is the calculation reference for Hoeilaart, Belgium. Extra decimal places do not make it a rooftop, property or survey point.
Coordinates and precision
- Map coordinate
- 50.767000000000000000, 4.473700000000000000
- Originally displayed coordinate
- lat50.767 / long4.4737
How the estimate works
How this Hoeilaart estimate was calculated
Here is how I calculated the location estimate for Hoeilaart, Belgium.
Read how all Location estimates workSource and scope
I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.
The figures are calculated estimates, not measured output or a new NASA request while you browse.
Reference period and source details
The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.
NASA POWER project reference
The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.
This source reference does not imply NASA endorsement.
Use the result carefully
What this Hoeilaart Location estimate includes and leaves out
Use the Hoeilaart figures for broad location context, with the following boundaries in mind.
- These catalogue estimates are informational; they do not establish a site-specific production result.
- The location is an approximate reference, not a property, rooftop or survey coordinate.
- The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
- The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
- Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
