The location in Maaseik, Flanders, Belgium, situated at 51.1031°N, 5.7889°E, presents a moderate potential for solar energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which affects the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

Solar energy production at this location peaks during the summer months, with an average daily output of 5.35 kWh per kW of installed capacity. Spring follows as the second most productive season, generating 4.56 kWh/day. Autumn sees a considerable drop in production to 2.33 kWh/day, while winter experiences the lowest output at 1.17 kWh/day per kW installed.

The substantial difference between summer and winter production highlights the challenge of relying solely on solar power throughout the year in Maaseik. However, the relatively strong performance during spring and summer makes solar energy a viable option for supplementing electricity needs, especially from March through September.

Optimal Panel Installation

To maximize year-round solar energy production at this location, fixed solar panels should be installed at a tilt angle of 43 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, considering the sun's changing position in the sky across seasons.

Environmental and Weather Factors

Several factors can impact solar energy production in Maaseik:

1. Cloud cover: The region experiences frequent cloudy days, particularly in autumn and winter, which can significantly reduce solar output.
2. Rainfall: Maaseik has a moderate rainfall throughout the year, which can temporarily decrease panel efficiency.
3. Snow: Winter snowfall can cover panels, reducing their ability to generate electricity.

To mitigate these factors, consider installing panels with anti-reflective coatings to improve performance in low-light conditions. Implement a regular cleaning schedule to remove dirt, debris, and snow. Additionally, using microinverters or power optimizers can help minimize the impact of partial shading on overall system performance.

While Maaseik's location presents challenges for year-round solar energy production, proper system design and maintenance can still make solar PV a valuable component of a diversified energy strategy, particularly during the more productive months of the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 201 locations across Belgium. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Belgium by location

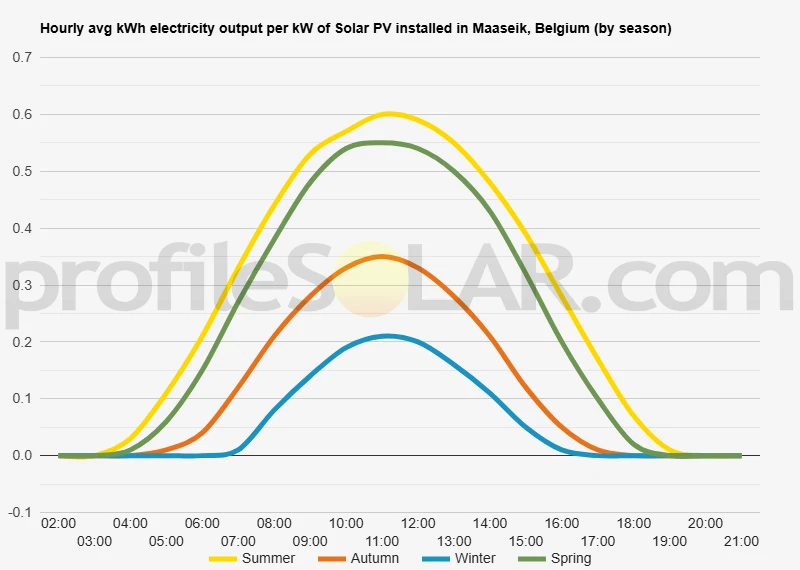

Solar output per kW of installed solar PV by season in Maaseik

Seasonal solar PV output for Latitude: 51.1031, Longitude: 5.7889 (Maaseik, Belgium), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Maaseik, Belgium

To maximize your solar PV system's energy output in Maaseik, Belgium (Lat/Long 51.1031, 5.7889) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Maaseik, Belgium

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Maaseik, Belgium. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Maaseik, Belgium

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Maaseik, Belgium.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Maaseik, Belgium

The topography around Maaseik, Belgium, is characterized by a relatively flat landscape typical of the Meuse River valley. Located in the eastern part of Flanders, near the border with the Netherlands, this area is part of the larger Campine region. The terrain is generally low-lying, with subtle undulations and gentle slopes. The immediate vicinity of Maaseik consists of a mix of agricultural fields, meadows, and scattered patches of woodland. The Meuse River, which flows north through the region, has played a significant role in shaping the local topography over time. The river's floodplain has created fertile alluvial soils, making the area suitable for farming. To the west and northwest of Maaseik, the landscape gradually transitions into the Campine plateau, a slightly elevated area with sandy soils. This region features a mix of heathland, pine forests, and some agricultural land. The elevation differences are minimal, with most of the area ranging between 30 to 50 meters above sea level.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The relatively flat terrain around Maaseik offers advantages for solar development, as it reduces the need for extensive land preparation and minimizes shading issues. Agricultural areas to the south and southeast of Maaseik could potentially be suitable for solar farms. These open spaces receive good sunlight exposure and have minimal obstructions. However, the use of productive farmland for solar installations may face some resistance due to concerns about food production. The Campine region to the west, with its less fertile sandy soils, might present opportunities for solar development. Some of the heathland or former industrial areas in this region could be repurposed for solar farms without significantly impacting agricultural productivity. Areas along the Meuse River, particularly on the eastern bank where there might be less risk of flooding, could also be considered. However, care must be taken to avoid sensitive riparian ecosystems and to consider the visual impact on the river landscape. It's important to note that while the topography is generally favorable for solar PV, other factors such as grid connectivity, local regulations, and environmental considerations would need to be carefully evaluated before determining the most suitable locations for large-scale solar installations in the region around Maaseik.

Belgium solar PV Stats as a country

Belgium ranks 19th in the world for cumulative solar PV capacity, with 6,585 total MW's of solar PV installed. This means that 6.60% of Belgium's total energy as a country comes from solar PV (that's 10th in the world). Each year Belgium is generating 569 Watts from solar PV per capita (Belgium ranks 5th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Belgium?

Yes, there are several incentives for businesses wanting to install solar energy in Belgium. The Belgian government offers a range of financial support measures for businesses that invest in renewable energy sources such as solar power. These include tax deductions, grants and subsidies, as well as access to low-interest loans. Additionally, the Flemish Energy Agency (VEA) provides free advice and guidance on how to make the most of these incentives.

Do you have more up to date information than this on incentives towards solar PV projects in Belgium? Please reach out to us and help us keep this information current. Thanks!
