Solar Energy Production in Maldegem, Belgium

Maldegem, Belgium, located at 51.2104° N, 3.4448° E in the Northern Temperate Zone, presents varying conditions for solar energy production throughout the year. The seasonal fluctuations in energy output are quite pronounced, which is typical for locations at higher latitudes in Europe. The energy production from solar PV installations in Maldegem shows a clear seasonal pattern. During summer, panels produce their highest output at 5.51 kWh per day for each kilowatt installed. Spring follows closely with a respectable 4.84 kWh/day. However, production drops significantly during autumn to 2.23 kWh/day, and reaches its lowest point in winter with only 1.00 kWh/day per kilowatt installed.

Optimal Panel Installation

For fixed solar panel installations in Maldegem, the ideal tilt angle to maximize year-round energy production is 43 degrees facing South. This angle has been calculated taking into account the seasonal variations in the sun's position and weighted by the potential energy production throughout the year.

Seasonal Considerations

The substantial difference between summer and winter production (5.5 times more energy in summer) indicates that Maldegem is far from ideal for consistent year-round solar generation. The location experiences its peak production period from approximately May through August, making summer the optimal season for solar energy generation. Spring (particularly April and May) also offers good production potential.

Environmental and Weather Factors

Several significant factors can affect solar production in Maldegem:

• Cloud cover is prevalent in this region of Belgium, particularly during autumn and winter months, which already have shorter days.
• Rainfall is distributed throughout the year, with autumn typically being the wettest season, further reducing solar efficiency.
• Morning fog and mist, common in this part of Flanders, can delay the start of effective daily production.
• Dust and pollen from agricultural activities in the surrounding rural areas can accumulate on panels.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures can be implemented:

• Install self-cleaning panels or implement a regular cleaning schedule, especially after pollen season and during drier periods when dust accumulates.
• Consider slightly adjustable mounting systems that allow for seasonal tilt optimization (steeper in winter, flatter in summer).
• Use high-efficiency panels specifically designed for diffuse light conditions, which perform better during cloudy days.
• Implement micro-inverters or power optimizers to minimize the impact of partial shading.
• Ensure proper spacing between panel rows to avoid self-shading, especially during winter when the sun is lower.

While not ideal for year-round consistent production, a properly designed solar installation in Maldegem can still provide significant energy, particularly when sized to take advantage of the productive summer and spring months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 201 locations across Belgium. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Belgium by location

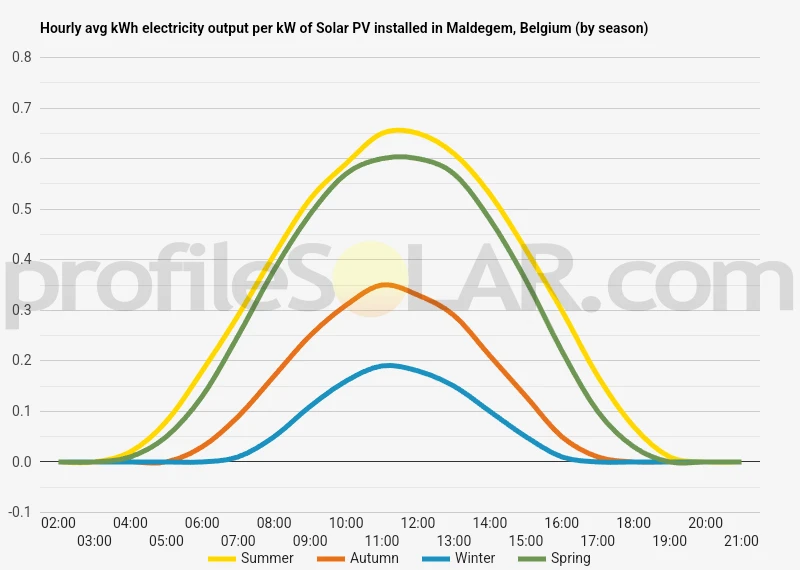

Solar output per kW of installed solar PV by season in Maldegem

Seasonal solar PV output for Latitude: 51.2104, Longitude: 3.4448 (Maldegem, Belgium), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Maldegem, Belgium

To maximize your solar PV system's energy output in Maldegem, Belgium (Lat/Long 51.2104, 3.4448) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Maldegem, Belgium

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Maldegem, Belgium. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Maldegem, Belgium

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Maldegem, Belgium.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Maldegem, Belgium

The topography around Maldegem, Belgium is characterized by remarkably flat terrain, typical of the Flemish lowlands. This area sits in the northwestern part of Belgium, in the province of East Flanders, and exhibits minimal elevation changes across its landscape. The region has an average elevation of approximately 5-10 meters above sea level, with very gentle undulations rather than any significant hills or valleys. The surrounding countryside consists primarily of agricultural fields, small woodlands, and a network of canals and drainage ditches that have historically been essential for water management in this low-lying region. The Leopold Canal passes near Maldegem, forming part of the intricate water management system that has shaped the landscape over centuries.

Surrounding Landscape Features

To the north of Maldegem lies the Dutch border, where the flat topography continues seamlessly. The western direction leads toward the North Sea coast, approximately 15 kilometers away, with the terrain maintaining its characteristically flat profile. Eastward, the landscape extends toward Eeklo and eventually Ghent, while to the south lies Bruges—all across consistently level ground. This part of Flanders has been extensively modified by human activity over many centuries, with land reclamation and water management playing crucial roles in shaping the current topography. The result is a highly organized landscape with geometric field patterns, straight roads, and carefully managed waterways.

Potential Areas for Solar PV Development

The flat terrain around Maldegem offers several advantages for large-scale solar photovoltaic installations. The most suitable areas would likely include: Agricultural zones with less productive soil would represent prime candidates for solar development. The extensive farmlands surrounding Maldegem provide potential sites where dual land use (agrivoltaics) could be considered, allowing for both energy generation and continued agricultural activity. Industrial parks and former industrial sites on the outskirts of Maldegem and neighboring communities would be particularly well-suited for solar development, as they typically offer large, unshaded areas with existing grid connections and minimal environmental sensitivity. The flat topography eliminates concerns about slope orientation that might affect solar panel efficiency in more mountainous regions. This uniformity means that site selection can focus more on land availability, grid connection possibilities, and minimizing environmental impacts rather than topographical considerations. Areas along the major transport corridors, such as alongside the N44 or N9 highways, could potentially accommodate linear solar developments with good access for construction and maintenance.

Topographical Considerations

Despite the advantages of flat terrain, potential solar developers would need to consider several topography-related factors specific to this region: Drainage is a critical concern in this low-lying area. Solar installations would need carefully designed drainage systems to manage water during heavy rainfall, as the natural drainage in this flat landscape is limited. The open, exposed nature of the landscape means that wind loads on solar panel structures require careful engineering consideration, though the absence of significant elevation changes means wind patterns are relatively consistent across the region. The proximity to the North Sea means that coastal weather patterns, including fog and salt-laden air, could affect solar panel performance and maintenance requirements, particularly in the western portions of the region. The high water table in some areas around Maldegem might influence foundation design for solar mounting structures, potentially requiring specialized approaches to ensure long-term stability. Overall, the flat, open topography around Maldegem presents favorable conditions for solar PV development from a purely geographical perspective, with the primary constraints being related to land use policies, grid capacity, and environmental considerations rather than the physical landscape itself.

Belgium solar PV Stats as a country

Belgium ranks 19th in the world for cumulative solar PV capacity, with 6,585 total MW's of solar PV installed. This means that 6.60% of Belgium's total energy as a country comes from solar PV (that's 10th in the world). Each year Belgium is generating 569 Watts from solar PV per capita (Belgium ranks 5th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Belgium?

Yes, there are several incentives for businesses wanting to install solar energy in Belgium. The Belgian government offers a range of financial support measures for businesses that invest in renewable energy sources such as solar power. These include tax deductions, grants and subsidies, as well as access to low-interest loans. Additionally, the Flemish Energy Agency (VEA) provides free advice and guidance on how to make the most of these incentives.

Do you have more up to date information than this on incentives towards solar PV projects in Belgium? Please reach out to us and help us keep this information current. Thanks!
