Solar PV Analysis of Moorsel, Belgium
Moorsel, East Flanders, Belgium, located at 50.9478217°N, 4.0983842°E, presents a moderate opportunity for solar energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems.
Seasonal Solar Performance
Solar energy production in Moorsel fluctuates considerably across the seasons. Summer stands out as the most productive period, with an average daily output of 5.25 kWh per kW of installed solar capacity. Spring follows closely, yielding 4.63 kWh/day. Autumn sees a substantial decrease to 2.46 kWh/day, while winter experiences the lowest production at just 1.18 kWh/day.
The stark contrast between summer and winter production highlights the challenges of relying solely on solar power in this region. However, the relatively strong performance during spring and summer months suggests that solar energy can still be a valuable component of a diversified energy strategy.
Optimal Panel Installation
To maximize year-round solar energy production in Moorsel, East Flanders, fixed solar panels should be tilted at a 43-degree angle facing south. This optimal angle accounts for the location's latitude and seasonal sun paths, ensuring the best possible energy capture throughout the year.
Environmental Considerations
While Moorsel doesn't face extreme environmental challenges for solar production, there are some factors to consider:
- Cloud cover: Belgium's climate is known for frequent overcast conditions, which can reduce solar efficiency.
- Rainfall: The region experiences regular precipitation, which may necessitate more frequent panel cleaning.
To mitigate these issues, consider installing high-efficiency panels that perform well in diffuse light conditions. Additionally, implementing an automated cleaning system or scheduling regular maintenance can help maintain optimal performance despite the weather conditions.
In conclusion, while Moorsel's location isn't ideal for year-round solar production, it still offers significant potential, especially during the spring and summer months. With proper panel placement and maintenance, solar energy can be a valuable contributor to the local energy mix.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 201 locations across Belgium. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Belgium by location

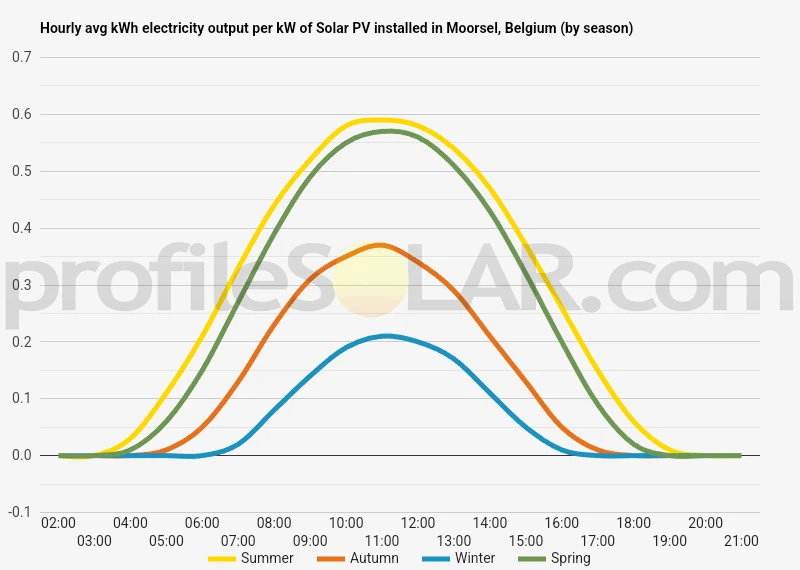

Solar output per kW of installed solar PV by season in Moorsel
Seasonal solar PV output for Latitude: 50.9478217, Longitude: 4.0983842 (Moorsel, Belgium), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 43° South in Moorsel, Belgium
To maximize your solar PV system's energy output in Moorsel, Belgium (Lat/Long 50.9478217, 4.0983842) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Moorsel, Belgium
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Moorsel, Belgium. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 34° South in Summer | 54° South in Autumn | 64° South in Winter | 43° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Moorsel, Belgium
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Moorsel, Belgium.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Moorsel, Belgium
The topography around Moorsel, Belgium, is generally characterized by gently rolling lowlands typical of the Flemish region. This area is part of the Scheldt basin, which is known for its relatively flat terrain with subtle undulations. The landscape is predominantly rural, featuring a mix of agricultural fields, small patches of woodland, and scattered settlements.
The elevation in and around Moorsel is fairly consistent, with most of the area lying between 10 to 30 meters above sea level. There are no significant hills or steep slopes in the immediate vicinity. The terrain gradually slopes down towards the Dender River, which flows to the east of Moorsel.
As for areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, several factors need to be considered. The ideal locations would be:
- Open agricultural land: The expansive farmlands surrounding Moorsel could potentially accommodate large solar arrays. These areas often have minimal shading from trees or buildings and are already cleared of vegetation.
- Former industrial sites: Any nearby brownfield sites or disused industrial areas could be repurposed for solar farms, making efficient use of land that might otherwise be difficult to develop.
- Areas near existing electrical infrastructure: Locations close to power lines or substations would be advantageous for connecting the solar installations to the grid.
- South-facing gentle slopes: While the area is generally flat, any subtle south-facing inclines would be particularly suitable as they receive more direct sunlight throughout the day.
It's important to note that while the topography around Moorsel is generally favorable for solar PV installations, other factors such as local regulations, land ownership, and environmental considerations would also play crucial roles in determining the most suitable sites. Additionally, the relatively high latitude of Belgium means that solar irradiance is lower compared to more southern regions, which could impact the overall efficiency of large-scale solar projects in this area.
Belgium solar PV Stats as a country
Belgium ranks 19th in the world for cumulative solar PV capacity, with 6,585 total MW's of solar PV installed. This means that 6.60% of Belgium's total energy as a country comes from solar PV (that's 10th in the world). Each year Belgium is generating 569 Watts from solar PV per capita (Belgium ranks 5th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Belgium?
Yes, there are several incentives for businesses wanting to install solar energy in Belgium. The Belgian government offers a range of financial support measures for businesses that invest in renewable energy sources such as solar power. These include tax deductions, grants and subsidies, as well as access to low-interest loans. Additionally, the Flemish Energy Agency (VEA) provides free advice and guidance on how to make the most of these incentives.
Do you have more up to date information than this on incentives towards solar PV projects in Belgium? Please reach out to us and help us keep this information current. Thanks!
