San Ignacio, Cayo District, Belize, situated in the tropics, offers a promising location for solar energy generation throughout the year. The consistent sunlight and the region's characteristic wet and dry seasons contribute to its potential for solar power production.

Seasonal Solar Performance

The solar energy output in San Ignacio varies across the meteorological seasons, with spring being the most productive period. During spring, solar panels can generate an impressive 6.31 kWh per day for each kilowatt of installed capacity. Summer follows closely with 5.95 kWh/day, while autumn produces 5.52 kWh/day. Winter sees a slight dip in production, yielding 4.69 kWh/day, but still maintains a respectable output.

Optimal Panel Positioning

To maximize year-round solar energy production in San Ignacio, Cayo District, fixed solar panels should be tilted at an angle of 16 degrees facing south. This optimal angle takes into account the location's latitude, the Earth's elliptical orbit, and daily solar elevation angles, ensuring the panels capture the most sunlight possible throughout the year.

Peak Production Periods

The most ideal times for solar energy generation in San Ignacio are during the spring and summer months. These seasons offer longer daylight hours and more direct sunlight, resulting in higher energy yields. However, the relatively consistent output across all seasons indicates that solar PV systems can be effective year-round in this location.

Environmental Considerations

While San Ignacio's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. High humidity and rainfall: The region's wet season can lead to increased cloud cover and rainfall, potentially reducing solar panel efficiency. 2. Tropical storms: Although less frequent than in coastal areas, tropical storms can occasionally impact the region, posing a risk to solar installations. To mitigate these challenges, several preventative measures can be implemented:

• Use weather-resistant and high-quality solar panels designed for tropical climates
• Install robust mounting systems capable of withstanding strong winds
• Implement regular cleaning and maintenance routines to combat humidity and rainfall effects
• Consider a backup power system for periods of reduced solar output during extreme weather events

By addressing these factors, solar installations in San Ignacio can maintain high levels of energy production throughout the year, taking full advantage of the location's favorable solar conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 9 locations across Belize. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Belize by location

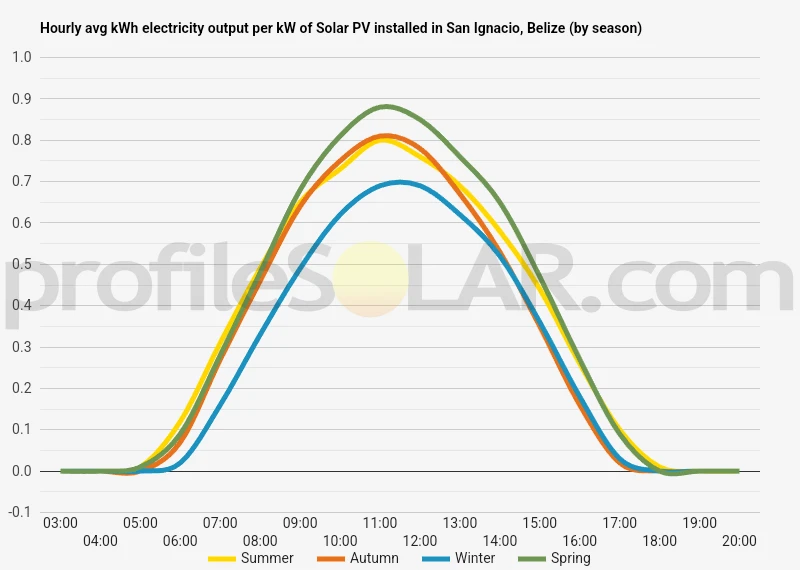

Solar output per kW of installed solar PV by season in San Ignacio

Seasonal solar PV output for Latitude: 17.1574, Longitude: -89.0685 (San Ignacio, Belize), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° South in San Ignacio, Belize

To maximize your solar PV system's energy output in San Ignacio, Belize (Lat/Long 17.1574, -89.0685) throughout the year, you should tilt your panels at an angle of 16° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Ignacio, Belize

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Ignacio, Belize. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° South in Summer	23° South in Autumn	33° South in Winter	11° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Ignacio, Belize

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Ignacio, Belize.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Ignacio, Belize

The area around San Ignacio, Belize, is characterized by diverse and picturesque topography. The town itself is situated in the Cayo District, which is part of the western region of Belize. San Ignacio lies in a valley along the banks of the Macal River, surrounded by rolling hills and lush tropical vegetation.

To the north and east of San Ignacio, the landscape is generally flatter, consisting of lowland areas with some gentle hills. This terrain gradually transitions into the coastal plains as you move further east towards the Caribbean Sea. To the south and west, the topography becomes more dramatic, with the Maya Mountains rising in the distance. These mountains, though not extremely high, create a striking backdrop and contribute to the region's varied landscape.

The area immediately surrounding San Ignacio features a mix of cleared agricultural land, patches of dense forest, and scattered limestone hills. These hills, known locally as "karst" formations, are remnants of ancient coral reefs and contribute to the region's unique geological character. The terrain is also dotted with numerous caves and underground river systems, which are typical of karst landscapes.

Regarding areas suitable for large-scale solar PV (photovoltaic) installations, the most promising locations would likely be found to the north and east of San Ignacio. These areas tend to have more open, flatter terrain that would be ideal for solar farms. The lowlands and cleared agricultural areas in these directions offer larger expanses of land with good sun exposure, which is crucial for efficient solar energy production.

However, it's important to note that while the topography in these areas may be suitable, other factors need to be considered for solar PV installations. These include proximity to existing power infrastructure, environmental impact assessments, and local land use regulations. Additionally, care should be taken to avoid areas of ecological importance or those with significant archaeological value, as the region around San Ignacio is rich in both natural and cultural heritage.

In contrast, the areas to the south and west of San Ignacio, with their more rugged and forested terrain, would generally be less suitable for large-scale solar projects. The hilly landscape and denser vegetation in these directions would pose challenges in terms of land clearing and consistent sun exposure.
