Cazin, Federation of Bosnia and Herzegovina, Bosnia and Herzegovina, located at coordinates 44.9607°N, 15.9435°E in the Northern Temperate Zone, presents a moderately favorable location for solar photovoltaic energy generation, though with significant seasonal variations that affect year-round viability.

Seasonal Solar Performance

The solar energy output at this location shows dramatic seasonal differences. Summer provides the strongest performance at 7.24 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring offers good production levels at 5.21 kWh per day per kW, representing the second-best season for energy harvest. Autumn sees a notable decline to 3.19 kWh per day per kW, while winter presents the most challenging conditions with only 1.72 kWh per day per kW. This winter figure is particularly low and represents less than 25% of summer production, indicating that solar installations would need to account for extended periods of minimal energy generation.

Optimal Panel Configuration

For fixed panel installations at Cazin, Federation of Bosnia and Herzegovina, the ideal tilt angle is 38 degrees facing south to maximize total year-round solar production. This angle has been calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to determine the optimal compromise for annual energy harvest.

Local Environmental and Weather Challenges

Several factors in the Cazin region could significantly impact solar energy production:

• Snow accumulation: Winter conditions in this mountainous region of northwestern Bosnia can bring heavy snowfall that covers panels and blocks sunlight completely
• Fog and low cloud cover: The area's proximity to rivers and valleys can create persistent fog, particularly during autumn and winter months
• Air quality issues: Seasonal wood burning for heating and industrial activities can create haze that reduces solar irradiance
• Temperature extremes: Both hot summers and cold winters can affect panel efficiency and system components

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be considered:

• Steeper tilt angles: Installing panels at angles slightly steeper than the optimal 38 degrees can help snow slide off more easily
• Elevated mounting: Raising panels well above ground level reduces snow accumulation and improves air circulation
• Regular maintenance access: Design systems with safe access for cleaning panels of snow, debris, and accumulated dust or soot
• Quality components: Use panels and inverters rated for the temperature ranges experienced in this continental climate
• Battery storage: Given the low winter production, energy storage systems become particularly valuable for maintaining power supply during extended low-production periods

The location shows promise for solar energy, particularly during the warmer months, but the significant seasonal variation and local weather patterns require careful system design and realistic expectations about winter performance.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 39 locations across Bosnia And Herzegovina. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Bosnia And Herzegovina by location

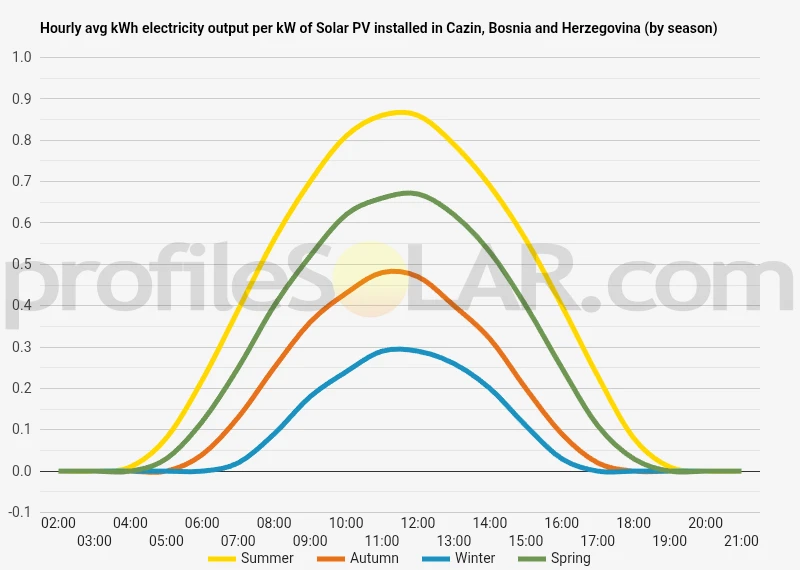

Solar output per kW of installed solar PV by season in Cazin

Seasonal solar PV output for Latitude: 44.9607, Longitude: 15.9435 (Cazin, Bosnia And Herzegovina), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 38° South in Cazin, Bosnia And Herzegovina

To maximize your solar PV system's energy output in Cazin, Bosnia And Herzegovina (Lat/Long 44.9607, 15.9435) throughout the year, you should tilt your panels at an angle of 38° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cazin, Bosnia And Herzegovina

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cazin, Bosnia And Herzegovina. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 38° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° South in Summer	48° South in Autumn	59° South in Winter	37° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cazin, Bosnia And Herzegovina

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cazin, Bosnia And Herzegovina.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cazin, Bosnia And Herzegovina

Topographical Features Around Cazin

The landscape surrounding Cazin in northwestern Bosnia and Herzegovina presents a diverse topographical profile characterized by rolling hills, river valleys, and moderately elevated terrain. This region sits within the Dinaric Alps system, where the topography transitions from the flatter Pannonian influences to the north toward the more mountainous terrain that dominates much of Bosnia and Herzegovina's interior. The immediate area around Cazin features undulating terrain with elevations typically ranging from 200 to 600 meters above sea level. The Una River valley creates significant topographical variation, carving through the landscape and creating both fertile lowlands and steeper valley sides. To the east and south of Cazin, the terrain becomes progressively more mountainous as it approaches the central Bosnian highlands. The region's topography includes numerous gentle slopes and plateaus interspersed with deeper valleys and gorges. Agricultural areas occupy much of the available flat and gently sloping land, while steeper slopes remain largely forested. The landscape shows typical karst characteristics common throughout the Dinaric region, including occasional limestone outcroppings and irregular drainage patterns.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Cazin would be the gently sloping hillsides and plateau areas that face south or southwest. These elevated positions typically offer better exposure to solar radiation throughout the day while avoiding the shadowing effects that can occur in the deeper valleys during morning and evening periods. The agricultural plateaus northwest and southeast of Cazin present particularly attractive opportunities for solar development. These areas combine relatively flat or gently undulating terrain with good accessibility for construction and maintenance activities. The moderate elevations in these zones help minimize atmospheric interference while maintaining practical access for equipment installation and grid connection. Areas along the broader sections of the Una River valley could also prove suitable, particularly where the valley floor widens and creates expanses of relatively flat terrain. However, careful consideration would be needed to avoid prime agricultural land and areas prone to seasonal flooding or high humidity that might affect panel performance. The rolling hills to the south and east of Cazin offer additional potential, especially on south-facing slopes with gradients between 5 and 15 degrees. These natural slopes can actually enhance solar collection efficiency when properly oriented, though they may present greater challenges for installation and maintenance compared to flatter sites. When evaluating potential solar sites in this region, developers should prioritize areas with minimal shading from surrounding topographical features, good road access for construction equipment, and proximity to existing electrical infrastructure. The varied topography around Cazin provides multiple options for solar development, with the key being to select sites that balance optimal solar exposure with practical construction and operational considerations.
