The location of Novi Travnik, Federation of Bosnia and Herzegovina, Bosnia and Herzegovina, situated at latitude 44.1678 and longitude 17.6563, presents varying potential for solar energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal fluctuations in solar power output, which affects the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Energy Production

Solar energy production in Novi Travnik reaches its peak during the summer months, with an impressive average of 6.84 kWh per day for each kilowatt of installed solar capacity. This high output makes summer an ideal time for solar energy generation in the area.

Spring follows as the second most productive season, yielding an average of 4.74 kWh per day. This moderate output still provides substantial energy generation potential.

Autumn sees a notable decrease in solar energy production, with an average of 2.93 kWh per day. While less efficient than summer and spring, autumn still offers some solar energy potential.

Winter presents the greatest challenge for solar energy production in Novi Travnik, Federation of Bosnia and Herzegovina, with a significantly lower output of 1.69 kWh per day. This reduced efficiency is due to shorter daylight hours and potentially overcast conditions typical of the season.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Novi Travnik, Federation of Bosnia and Herzegovina, fixed solar panels should be installed at a tilt angle of 37 degrees facing south. This optimal angle has been calculated to capture the most sunlight throughout the year, considering the location's latitude and seasonal sun positions.

Environmental and Weather Considerations

While Novi Travnik's location is generally suitable for solar energy production, there are some factors that could potentially impact efficiency:

• Snow accumulation during winter months may temporarily reduce panel efficiency
• Occasional fog or mist, particularly in autumn and winter, could slightly decrease solar radiation reaching the panels

To mitigate these issues, consider installing panels at a steeper angle to encourage snow sliding off and using self-cleaning, hydrophobic panel coatings to reduce the impact of moisture accumulation. Regular maintenance and cleaning of the panels, especially after snowfall, can also help maintain optimal performance.

In conclusion, while Novi Travnik experiences significant seasonal variations in solar energy potential, proper panel placement and maintenance can still make solar PV a viable energy option, particularly during the more productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 39 locations across Bosnia And Herzegovina. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Bosnia And Herzegovina by location

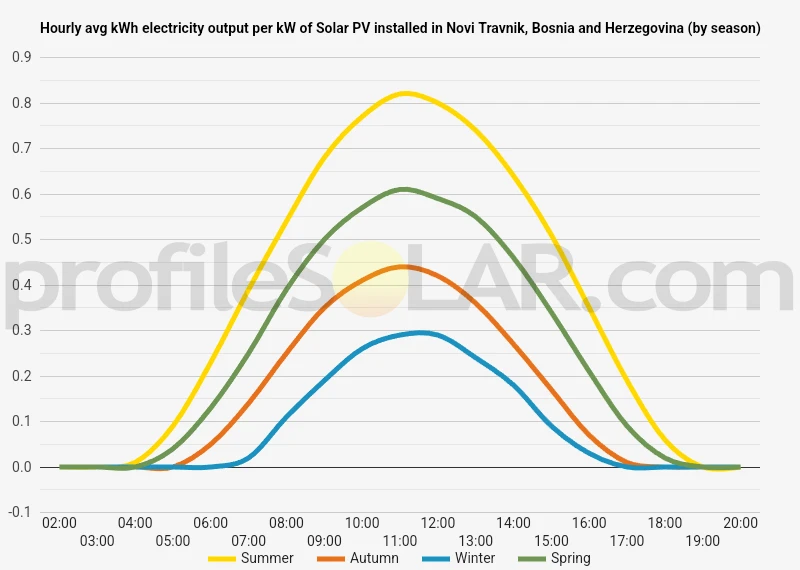

Solar output per kW of installed solar PV by season in Novi Travnik

Seasonal solar PV output for Latitude: 44.1678, Longitude: 17.6563 (Novi Travnik, Bosnia And Herzegovina), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Novi Travnik, Bosnia And Herzegovina

To maximize your solar PV system's energy output in Novi Travnik, Bosnia And Herzegovina (Lat/Long 44.1678, 17.6563) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Novi Travnik, Bosnia And Herzegovina

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Novi Travnik, Bosnia And Herzegovina. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	47° South in Autumn	58° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Novi Travnik, Bosnia And Herzegovina

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Novi Travnik, Bosnia And Herzegovina.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Novi Travnik, Bosnia And Herzegovina

The area surrounding Novi Travnik in Bosnia and Herzegovina is characterized by a diverse and picturesque topography. Situated in the heart of central Bosnia, this region features a mix of rolling hills, valleys, and mountainous terrain. The town itself lies in a valley at an elevation of approximately 500 meters above sea level, nestled between higher elevations to the north and south. To the north and northeast of Novi Travnik, the landscape gradually rises into the foothills of the Vlašić mountain range. These hills are often covered with lush forests and meadows, creating a verdant backdrop for the town. The southern and southwestern areas are marked by steeper slopes that lead up to the Vranica mountain range, with peaks reaching over 2,000 meters in height. The immediate vicinity of Novi Travnik is comprised of gentler slopes and small plateaus, which are interspersed with agricultural land and scattered settlements. Several small rivers and streams flow through the area, carving shallow valleys and contributing to the region's water resources.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would have relatively flat or gently sloping terrain, good sun exposure, and minimal shading from surrounding mountains or forests. The most promising areas for solar PV development near Novi Travnik would likely be found in the lower-lying regions to the east and southeast of the town. These areas tend to have more open, less forested landscapes with gentler topography. The slightly elevated plateaus in this direction could offer excellent sun exposure throughout the day, making them potentially suitable for large solar arrays. Additionally, some of the cleared agricultural lands to the north and northeast of Novi Travnik, where the terrain begins to rise but remains relatively gentle, could also be considered for solar PV installations. These areas might provide a good balance between elevation for sun exposure and accessibility for construction and maintenance. It's important to note that while the mountainous regions surrounding Novi Travnik receive ample sunlight, their steep slopes and forested nature make them less practical for large-scale solar developments. The valleys, while more accessible, may experience more shading from the surrounding hills, potentially reducing their suitability for solar PV projects. Any large-scale solar development in the region would need to carefully consider the balance between optimal sun exposure, land availability, and the preservation of the area's natural beauty and agricultural resources. Environmental impact assessments and detailed site surveys would be crucial in determining the most appropriate locations for such projects.
