Kuala Belait, Brunei, located at 4.5854° N, 114.2333° E, presents a favorable environment for solar PV energy generation throughout the year. Situated in the tropics, this location benefits from consistent sunlight and experiences wet and dry seasons rather than traditional four-season cycles.

Solar Energy Production Potential

The solar energy output at Kuala Belait demonstrates remarkable consistency across all seasons. Spring yields the highest production at 5.96 kWh/day per kW installed, followed closely by summer at 5.75 kWh/day. Autumn maintains strong performance with 5.62 kWh/day, while winter sees a slight dip but still delivers a respectable 5.05 kWh/day.

This minimal seasonal variation makes Kuala Belait an excellent location for year-round solar energy generation. The region's proximity to the equator ensures steady sunlight throughout the year, with only minor fluctuations in day length and sun angle.

Optimal Panel Installation

For fixed panel installations in Kuala Belait, the ideal tilt angle to maximize year-round solar production is 4 degrees facing South. This nearly flat orientation takes advantage of the sun's high position in the sky throughout the year at this latitude.

Environmental Considerations

While Kuala Belait's tropical climate is generally conducive to solar energy production, there are a few environmental factors to consider:

1. High humidity and rainfall: The region's wet seasons can lead to increased cloud cover and rainfall, potentially reducing solar panel efficiency.
2. Dust and pollutants: Being in a coastal area, salt spray and industrial pollutants from nearby oil and gas facilities may accumulate on panels, affecting their performance.

Preventative Measures

To mitigate these environmental challenges and ensure optimal solar energy production, consider the following measures:

• Install a reliable cleaning system or schedule regular manual cleaning to remove dust, salt, and other contaminants from panel surfaces.
• Use corrosion-resistant materials for mounting hardware and panel frames to withstand the humid, salty air.
• Implement a robust drainage system to prevent water accumulation on panels during heavy rainfall.
• Consider slightly increasing the tilt angle to promote natural cleaning by rainwater runoff.

By addressing these factors, solar installations in Kuala Belait can take full advantage of the location's excellent year-round solar potential, making it an ideal site for sustainable energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 2 locations across Brunei. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brunei by location

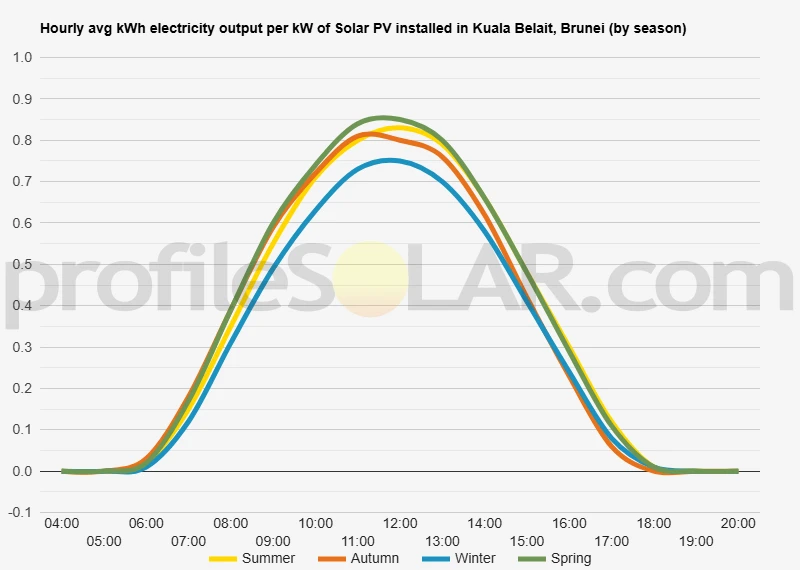

Solar output per kW of installed solar PV by season in Kuala Belait

Seasonal solar PV output for Latitude: 4.5854, Longitude: 114.2333 (Kuala Belait, Brunei), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° South in Kuala Belait, Brunei

To maximize your solar PV system's energy output in Kuala Belait, Brunei (Lat/Long 4.5854, 114.2333) throughout the year, you should tilt your panels at an angle of 4° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kuala Belait, Brunei

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kuala Belait, Brunei. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	11° South in Autumn	20° South in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kuala Belait, Brunei

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kuala Belait, Brunei.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kuala Belait, Brunei

The topography around Kuala Belait, Brunei, is characterized by a primarily flat, coastal landscape. This area is situated in the southwestern part of Brunei, near the border with Malaysia's Sarawak region. The terrain is predominantly low-lying, with extensive areas of coastal plain and swampy lowlands. The nearby South China Sea influences the landscape, creating a mix of sandy beaches, estuaries, and mangrove forests along the coastline. Inland from the coast, the terrain gradually rises, transitioning into gently rolling hills and tropical rainforests. These forested areas are part of the larger Bornean rainforest ecosystem, which is known for its rich biodiversity. However, the immediate vicinity of Kuala Belait remains relatively flat, with only slight elevation changes as one moves away from the coast.

Suitable Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Kuala Belait, several factors come into play. The most suitable areas would likely be found inland, away from the immediate coastal zone and its associated wetlands. These inland areas offer more stable ground conditions and reduced risk of flooding or storm surge damage. The gently rolling hills and cleared areas just beyond the town limits could provide ideal locations for solar farms. These sites would benefit from relatively unobstructed sunlight exposure, which is crucial for maximizing solar energy production. Additionally, areas where deforestation has already occurred might be repurposed for solar installations, avoiding further impact on the remaining rainforest. It's important to note that while Brunei has abundant sunshine, the high humidity and frequent cloud cover in this tropical region can affect solar panel efficiency. Therefore, site selection would need to carefully consider local microclimates and weather patterns to identify the most favorable locations for solar PV deployment. Any large-scale solar project would also need to take into account the need for transmission infrastructure to connect to the existing power grid. Areas closer to existing power lines and substations would be advantageous from this perspective. Lastly, it's worth mentioning that Brunei's economy is heavily dependent on its oil and gas industry. As such, any significant solar energy development would likely need to be part of a broader national strategy to diversify the country's energy sources and reduce its carbon footprint.
