Solar PV Analysis of Langley, Canada
Based on the provided data, Langley, British Columbia, Canada is a fairly decent location for year-round energy production through solar photovoltaic (PV) systems. However, it's not ideal throughout the entire year due to the seasonal variations in sunlight.
During summer and spring, there's more sunlight available which results in higher electricity output from solar PV systems - 6.67kWh/day and 4.67kWh/day respectively per kW of installed solar. These are good times for generating solar power at this location.
However, during autumn and winter months when days are shorter with less sunlight available, the electricity output drops significantly to 2.08kWh/day and 1.21kWh/day respectively per kW of installed solar.
For a fixed panel installation at this location, tilting panels at an angle of about 40 degrees towards south is recommended to maximize total year-round production from your solar PV system.
As far as environmental or weather factors that could impede solar production go: Langley has a temperate oceanic climate with significant rainfall throughout most of the year which could potentially obstruct direct sunlight onto your panels reducing their efficiency especially during wetter seasons like fall and winter.
To mitigate these issues:
1) Regular maintenance including cleaning off debris or dust on your panels can help ensure they're working efficiently.
2) Installing them in an area where they’re least likely to be shaded by buildings or trees can also improve performance.
3) Using high-quality equipment designed to withstand harsh weather conditions will help ensure greater energy production over time.
4) Lastly considering adjustable mounts that allow you change the tilt angle seasonally might be beneficial since it allows you capture maximum sun exposure across different seasons.
Remember though that while these measures can help enhance productivity they come with additional costs so consider them carefully against potential benefits before making investment decisions!
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 453 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Canada by location

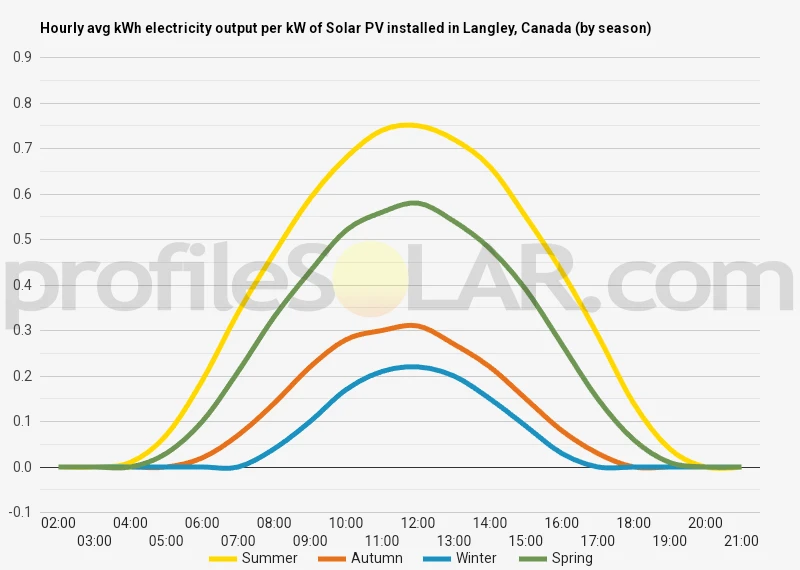

Solar output per kW of installed solar PV by season in Langley
Seasonal solar PV output for Latitude: 49.1024, Longitude: -122.6536 (Langley, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 40° South in Langley, Canada
To maximize your solar PV system's energy output in Langley, Canada (Lat/Long 49.1024, -122.6536) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Langley, Canada
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Langley, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 32° South in Summer | 52° South in Autumn | 63° South in Winter | 41° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Langley, Canada
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Langley, Canada.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Langley, Canada
Langley, Canada is located in the Fraser Valley region of British Columbia. The topography of this area is relatively flat with gentle rolling hills. It's surrounded by mountains to the north and south but they are at a considerable distance.
The region has a mix of urban areas, farmland, and forested areas. The soil in the farming areas is generally fertile and well-drained which could be beneficial for ground-mounted solar PV installations.
As for large-scale solar PV installations, open spaces such as unused farmlands or industrial lands would be most suited due to their size and lack of shading from buildings or trees. However, it's important to note that Langley lies within a temperate rainforest climate zone which may not offer optimal sunlight conditions year-round compared to more arid regions.
In terms of specific nearby locations suitable for large-scale solar PV:
1) Abbotsford: Located east of Langley, it has significant amounts of unused agricultural land that could potentially be used for large-scale solar projects.
2) Surrey: To the west of Langley, it has several industrial zones where rooftop solar on warehouses could be feasible.
3) Delta: South-west from Langley across Fraser River; its flat open terrain can also accommodate large scale Solar PV systems.
However, any decision about installing largescale Solar PV should consider various factors including local regulations regarding land use and environmental impact assessments etc., apart from just geographical suitability.
Canada solar PV Stats as a country
Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Canada?
There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:
1. Federal Tax Incentives:- Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.
- Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
- Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
- British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
- Nova Scotia: Solar Electricity for Community Buildings Program.
Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.
4. Grants and Loans:Some provinces offer grants or low-interest loans for renewable energy projects.
5. Carbon Pricing:The federal carbon pricing system can make solar more competitive compared to fossil fuels.
6. Municipal Incentives:Some cities offer additional incentives or property tax reductions for solar installations.
7. Reduced Operating Costs:While not a direct incentive, businesses can significantly reduce their long-term energy costs.
Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
Citation Guide
Article Details for Citation
Author: Aaron Robinson
Publisher: profileSOLAR.com
First Published: Saturday 6th of April 2024
Last Updated: Wednesday 26th of June 2024
