Bongor Hahanga, Chad, situated in the tropics, offers a promising location for solar energy generation throughout the year. This area experiences consistent sunlight and is characterized by wet and dry seasons rather than traditional four-season cycles.

Seasonal Solar Performance

The solar energy output at Bongor Hahanga demonstrates remarkable consistency across all seasons. Spring sees the highest production at 6.95 kWh per day for each kilowatt of installed solar capacity. Winter follows closely with 6.74 kWh/day, while autumn generates 6.33 kWh/day. Even during summer, which shows the lowest output, the system still produces a respectable 5.50 kWh/day.

Optimal Installation Angle

For fixed panel installations in Bongor Hahanga, the ideal tilt angle to maximize year-round solar production is 10 degrees facing South. This angle has been carefully calculated to account for the location's latitude and the Earth's elliptical orbit, ensuring optimal exposure to sunlight throughout the year.

Peak Generation Periods

The data suggests that spring and winter are the most productive seasons for solar energy generation in Bongor Hahanga. However, the relatively small variation between seasons indicates that this location is suitable for consistent solar power production throughout the year.

Environmental Considerations

While Bongor Hahanga's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. Dust and sand: The region's dry seasons may lead to increased dust and sand in the air, which can accumulate on solar panels and reduce their efficiency. 2. Heavy rainfall: During the wet season, intense rainstorms could temporarily reduce solar output. To mitigate these issues, several preventative measures can be taken:

• Install automated cleaning systems or implement regular manual cleaning to remove dust and sand from panels.
• Use high-quality, weather-resistant panels designed to withstand heavy rainfall and potential flooding.
• Implement a slight tilt on panel installations to facilitate natural cleaning by rainwater.
• Consider using tracking systems to maximize sun exposure and potentially increase energy production by up to 30%.

By addressing these environmental factors, solar installations in Bongor Hahanga can maintain high efficiency and capitalize on the location's excellent solar potential throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 2 locations across Chad. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chad by location

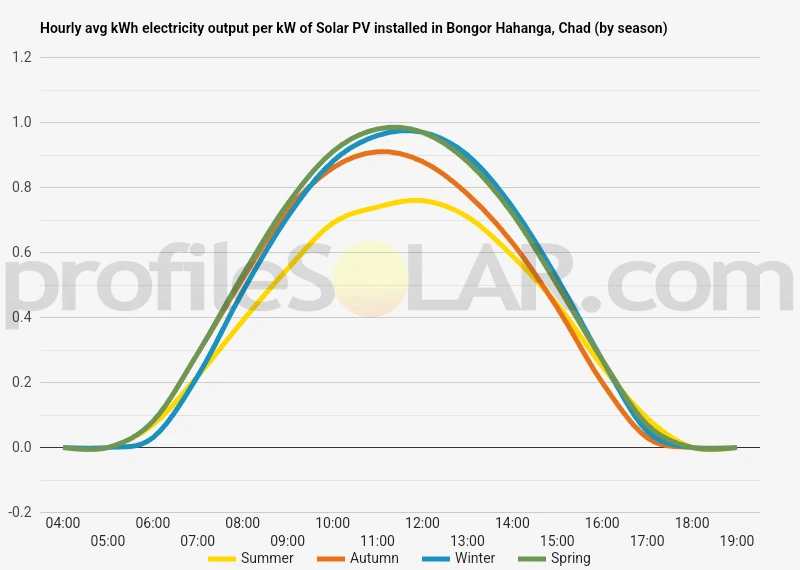

Solar output per kW of installed solar PV by season in Bongor Hahanga

Seasonal solar PV output for Latitude: 9.7197, Longitude: 15.2251 (Bongor Hahanga, Chad), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Bongor Hahanga, Chad

To maximize your solar PV system's energy output in Bongor Hahanga, Chad (Lat/Long 9.7197, 15.2251) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bongor Hahanga, Chad

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bongor Hahanga, Chad. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	25° South in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bongor Hahanga, Chad

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bongor Hahanga, Chad.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bongor Hahanga, Chad

The topography around Bongor Hahanga, Chad, is characterized by a relatively flat and low-lying landscape typical of the Sahel region. This area is situated in the southern part of Chad, near the border with Cameroon, and forms part of the broader Chad Basin. The terrain is predominantly composed of gently rolling plains with occasional small hills and shallow depressions. The region experiences a semi-arid climate, which has shaped its topography over time. The landscape is marked by sparse vegetation, including scattered trees and shrubs adapted to the dry conditions. During the brief rainy season, temporary streams and shallow pools may form, but these typically dry up quickly as the hot, dry season sets in.

Suitability for Large-Scale Solar PV

The areas surrounding Bongor Hahanga offer several favorable conditions for large-scale solar photovoltaic (PV) installations. The flat terrain and lack of significant geographical obstacles make it easier to construct and maintain solar arrays over large areas. Additionally, the region receives abundant sunlight throughout the year, which is crucial for maximizing solar energy production. The most suitable locations for large-scale solar PV projects would be the expansive, open plains that stretch out from Bongor Hahanga. These areas provide ample space for solar panel deployment without the need for extensive land clearing or topographical modifications. The absence of tall vegetation or geographical features that could cast shadows on the panels is another advantage. However, developers would need to consider factors such as soil stability, access to water for panel cleaning, and proximity to existing infrastructure. Areas slightly elevated above potential flood zones would be preferable to protect the installations during the rainy season. Additionally, sites with good road access for construction and maintenance would be advantageous. It's important to note that while the topography is generally favorable, detailed site surveys would be necessary to identify the optimal locations. These surveys would assess factors such as exact elevation, soil composition, and local microclimates to ensure the long-term success and efficiency of any large-scale solar PV project in the region.
