Solar Energy Potential in Chengde, Hebei, China

Chengde, Hebei, located in northern China at 40.9513° N, 117.9535° E, offers promising conditions for solar energy generation throughout the year. This location in the Northern Temperate Zone experiences distinct seasonal variations in solar energy production. The solar energy potential shows interesting seasonal patterns. Spring yields the highest daily energy output at 5.63 kWh per kilowatt of installed capacity. Summer follows closely with 5.51 kWh/day. Energy production decreases significantly during autumn to 3.42 kWh/day, with winter showing the lowest output at 3.13 kWh/day.

Seasonal Considerations

The data reveals that Chengde experiences its peak solar production during spring and summer months. These seasons offer nearly twice the daily energy output compared to winter. This pattern suggests that solar installations in this area would be most productive from March through August, with May likely being the optimal month based on the high spring values. For fixed solar panel installations in Chengde, Hebei, the ideal tilt angle to maximize year-round energy production is 37 degrees facing South. This specific angle has been calculated to optimize annual solar capture based on Chengde's latitude and seasonal solar patterns.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar production in Chengde:

• Dust and air pollution: Chengde's proximity to industrial areas and Beijing may result in air quality issues that can reduce panel efficiency by creating a film on panel surfaces.
• Seasonal snow: Winter snowfall can completely block panels from receiving sunlight if not cleared promptly.
• Temperature extremes: The region experiences cold winters which can actually benefit panel efficiency, while hot summer days might slightly reduce performance.

To mitigate these challenges, installations should include regular cleaning protocols to address dust accumulation. Panels should be installed at the recommended 37-degree angle not only for optimal sun exposure but also to facilitate natural snow shedding. Additionally, ensuring adequate airflow beneath panels can help maintain cooler operating temperatures during summer months. The significant seasonal variation suggests that hybrid energy systems might be worth considering to supplement the lower winter production, though spring and summer offer excellent solar harvesting opportunities that could potentially offset the reduced winter output.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

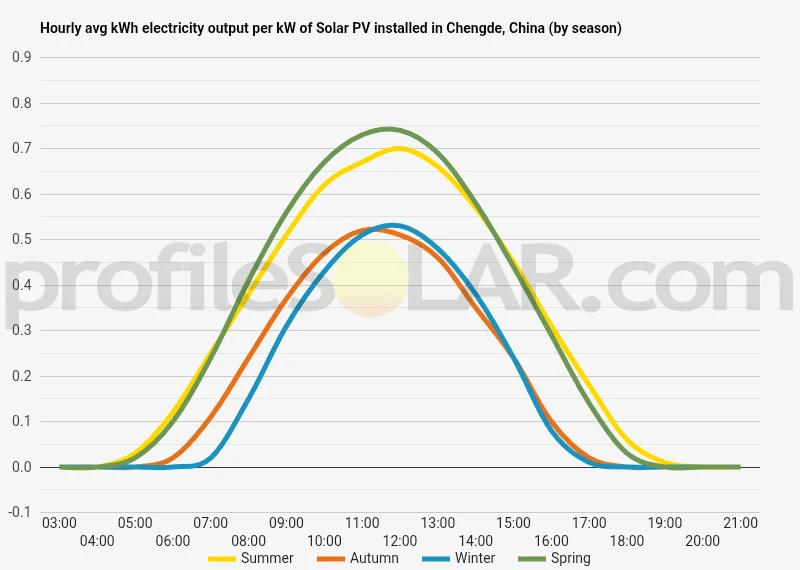

Solar output per kW of installed solar PV by season in Chengde

Seasonal solar PV output for Latitude: 40.9513, Longitude: 117.9535 (Chengde, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Chengde, China

To maximize your solar PV system's energy output in Chengde, China (Lat/Long 40.9513, 117.9535) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chengde, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chengde, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	46° South in Autumn	56° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chengde, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chengde, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chengde, China

Chengde, located in the northeastern part of Hebei Province, China, features a diverse and dramatic topographical landscape characterized by mountains, valleys, and plateaus. The city sits in a basin surrounded by mountains on three sides, creating a natural amphitheater-like setting. The terrain around Chengde is predominantly mountainous, with the Yanshan Mountain Range serving as a prominent feature to the south and southeast.

Mountain Ranges

The Yanshan Mountains form a significant part of Chengde's topography, with elevations typically ranging from 1,000 to 1,500 meters above sea level. These mountains create a natural boundary and influence the local climate patterns. The mountain slopes vary in steepness, with some areas featuring gentle inclines while others present more rugged terrain with steep cliffs and deep valleys. To the north and northeast of Chengde lies the southern edge of the Inner Mongolian Plateau, which introduces a different topographical character with more open, elevated plains. This transition zone between mountainous terrain and plateau creates interesting geological features throughout the region.

River Valleys

The Wulie River flows through Chengde, carving valleys and creating flatter areas within the otherwise mountainous landscape. These river valleys provide some of the few naturally flat expanses in the region. The river system has shaped the land over millennia, creating alluvial plains in certain sections that contrast with the surrounding elevated terrain. Several tributaries join the main river, creating a network of smaller valleys that cut through the mountains. These valleys historically served as natural pathways for transportation and human settlement in this challenging terrain.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas around Chengde show particular promise based on topographical considerations: The southern edges of the Inner Mongolian Plateau to the north of Chengde offer extensive flat or gently rolling terrain that would be ideal for large solar arrays. These areas provide the necessary space for industrial-scale installations without requiring significant terrain modification. The elevated nature of these plateaus also potentially reduces issues with morning and evening shadowing. The broader river valleys, particularly those carved by the Wulie River, present another opportunity for solar development. These relatively flat areas nestled between mountains offer accessible terrain for construction and maintenance of solar facilities. The valley orientation should be carefully considered to maximize sun exposure throughout the day. Some of the more gradual south-facing mountain slopes in the region could also support solar installations. While requiring more engineering work than flat terrain, these slopes naturally face toward the sun's path, potentially increasing energy capture efficiency. Modern solar mounting systems can accommodate moderate slopes without excessive grading requirements. The areas to avoid for solar development would include the steeper mountain faces, densely forested regions, and narrow valleys where shadowing from surrounding peaks would significantly reduce direct sunlight exposure. The northern faces of mountains would also be poor candidates due to reduced solar radiation. Any large-scale solar development would need to balance topographical advantages with other considerations such as proximity to existing electrical infrastructure, environmental impacts, and land use regulations. The varied terrain around Chengde means that site-specific assessments would be crucial for optimal placement of solar facilities.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.
