Solar Energy Potential in Chenzhou, Hunan, China

Chenzhou, Hunan, China, located in the Northern Sub Tropics at coordinates 25.7993, 113.0387, offers reasonable conditions for solar photovoltaic (PV) energy generation throughout the year, though with notable seasonal variations. The location experiences its peak solar production during summer months, with a significant drop during other seasons. The seasonal solar energy production shows that summer is clearly the most productive period, generating 5.59kWh per day for each kilowatt of installed solar capacity. This drops to 4.00kWh/day in autumn, further decreasing to 3.44kWh/day in winter and reaching its lowest at 3.29kWh/day during spring. For those considering solar installation in Chenzhou, Hunan, it's worth noting that the optimal tilt angle for fixed solar panels to maximize year-round energy production is 23 degrees facing South. This specific angle has been calculated to capture the maximum possible solar radiation throughout the year at this particular latitude.

Environmental and Weather Considerations

Several significant factors could impact solar production in Chenzhou:

• Seasonal monsoon rains: Chenzhou experiences a subtropical monsoon climate with abundant rainfall, particularly during late spring and summer. These rainy periods can reduce solar efficiency despite occurring during otherwise high-production months.
• Air pollution and haze: As with many Chinese industrial regions, air quality issues can reduce solar irradiance reaching panels.
• Occasional typhoons: The region may experience typhoon effects, though less severely than coastal areas.

To mitigate these challenges, solar installations in Chenzhou should incorporate robust mounting systems capable of withstanding strong winds. Regular cleaning schedules are essential to remove dust and pollution deposits, which can significantly reduce efficiency. Additionally, installing slightly more capacity than needed can help compensate for the reduced production during the lengthy spring and winter periods. Despite these challenges, Chenzhou's location still provides viable conditions for solar energy production, especially from late spring through early autumn when production peaks. The relatively mild winter temperatures also prevent snow accumulation issues that plague solar installations in more northern regions.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

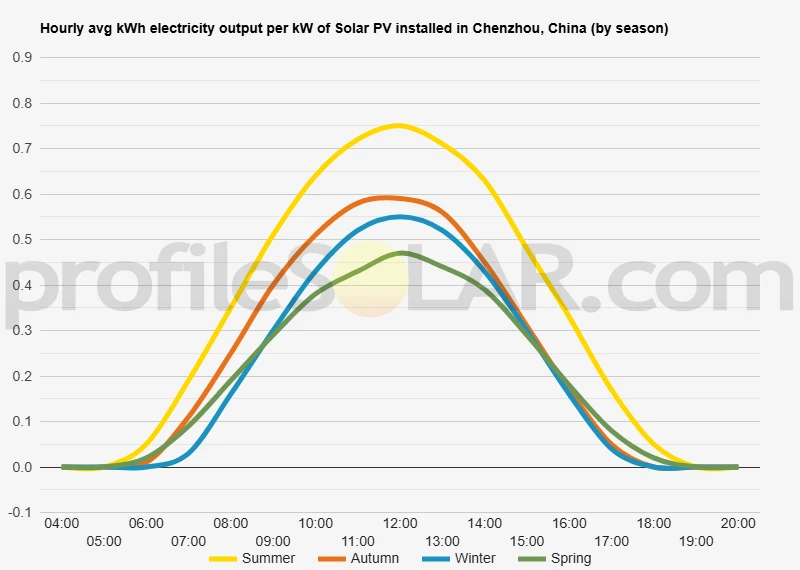

Solar output per kW of installed solar PV by season in Chenzhou

Seasonal solar PV output for Latitude: 25.7993, Longitude: 113.0387 (Chenzhou, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° South in Chenzhou, China

To maximize your solar PV system's energy output in Chenzhou, China (Lat/Long 25.7993, 113.0387) throughout the year, you should tilt your panels at an angle of 23° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chenzhou, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chenzhou, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	30° South in Autumn	41° South in Winter	18° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chenzhou, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chenzhou, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chenzhou, China

Chenzhou, located in the southern part of Hunan province in China, presents a diverse topographical landscape characterized by mountains, hills, valleys, and plains. The region is part of the broader Nanling Mountain Range, which creates a natural boundary between Hunan and Guangdong provinces. This mountainous terrain dominates the southern and eastern portions of Chenzhou, with elevations gradually decreasing as one moves northward. The city is situated in what geographers describe as a transitional zone between the Hunan Basin and the Pearl River Delta. This position has resulted in a complex landscape where mountain ranges intersect with river valleys, creating a tapestry of varying elevations. The Xiang River and its tributaries have carved numerous valleys throughout the region, forming natural corridors between the mountainous areas.

Mountain Features

The mountains surrounding Chenzhou are typically medium in height, with rounded peaks rather than sharp summits. These mountains are part of ancient geological formations that have been weathered over millions of years. The Nanling range, which runs through the area, creates a series of parallel ridges extending in a northeast to southwest direction. These mountains are not extremely high by Chinese standards but provide significant variation in the local topography.

River Valleys and Plains

Between the mountain ranges lie numerous river valleys and small plains. These lower-elevation areas have historically been centers of agriculture and human settlement. The Lei River, a major waterway in the region, flows through Chenzhou and has created fertile valleys along its course. These valleys feature gentler slopes and more level terrain compared to the surrounding highlands.

Suitability for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several areas near Chenzhou present favorable conditions. The most suitable locations would be: The southern-facing slopes of hills and lower mountains throughout the region offer excellent potential for solar development. These locations benefit from reduced shadowing effects while still being accessible for construction and maintenance. The gentle slopes also minimize the need for extensive grading and earthwork. Several plateau areas in the northern parts of Chenzhou prefecture provide relatively flat terrain at higher elevations. These plateaus combine the advantages of clear exposure to sunlight with sufficient land area for large installations. The higher elevation may also reduce potential fog and haze issues that can affect solar efficiency. The broader valley floors, particularly in areas that are less suitable for agriculture or have been previously disturbed by human activities, represent practical locations for solar development. These areas typically have existing road access and are closer to transmission infrastructure.

Topographical Challenges

Despite these opportunities, the topography around Chenzhou does present certain challenges for solar development. The mountainous nature of much of the region means that flat land is at a premium. Additionally, the complex terrain can create localized weather patterns, including increased cloud cover in certain valleys or on specific mountain slopes. The region also experiences a subtropical monsoon climate, which brings substantial rainfall. This climate factor, combined with the mountainous topography, means that careful site selection is necessary to avoid areas prone to landslides or excessive erosion.

Optimal Development Areas

Considering all topographical factors, the most promising areas for large-scale solar PV development near Chenzhou would be: The transitional zones between mountains and plains in the northern parts of the prefecture, where sufficient flat or gently sloping land exists while still maintaining good solar exposure. Elevated plateaus and broader ridgelines, particularly those with southern or western exposures, which would maximize solar gain throughout the day. Previously developed or disturbed lands, such as former mining areas, which are common in the region due to its history of mineral extraction. These sites often combine favorable topography with reduced environmental impact concerns. The careful selection of sites based on topographical considerations, along with proper engineering to address slope stability and drainage issues, would be essential for successful large-scale solar development in the Chenzhou region.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
