Chifeng, Inner Mongolia, China, located in the Northern Temperate Zone at coordinates 42.2683, 118.9636, offers moderately favorable conditions for solar PV energy generation throughout the year, though with significant seasonal variations.

Seasonal Solar Production

Solar energy output in Chifeng follows a predictable seasonal pattern. Spring delivers the highest energy production at 5.98 kWh per day for each kilowatt of installed capacity. Summer follows closely behind at 5.88 kWh/day. Energy generation drops considerably during autumn to 3.68 kWh/day and reaches its lowest point in winter at 3.08 kWh/day per kilowatt installed.

The substantial difference between the high-production seasons (spring and summer) and low-production seasons (autumn and winter) means that Chifeng residents would need to plan for supplementary energy sources during the colder months when solar output diminishes by nearly 50% compared to peak production periods.

Optimal Installation Setup

For fixed solar panel installations in Chifeng, Inner Mongolia, the ideal tilt angle to maximize year-round energy production is 38 degrees facing South. This specific angle has been calculated to optimize annual solar energy capture based on Chifeng's geographical position in the Northern Hemisphere, accounting for the Earth's elliptical orbit and seasonal sun path variations.

Environmental Challenges

Several environmental factors in Chifeng can potentially impact solar energy production. The region experiences cold, dry winters with occasional snowfall that can cover panels and reduce efficiency. Dust storms from the nearby Gobi Desert, particularly in spring, can deposit significant amounts of particulate matter on solar panels, reducing their effectiveness.

Additionally, Chifeng's industrial activity contributes to air pollution that can diminish solar irradiance reaching the panels. The region's temperature extremes—hot summers and very cold winters—can also affect panel efficiency, as solar PV typically performs best at moderate temperatures.

Mitigation Strategies

To address these challenges, several preventative measures can be implemented:

• Install panels with a steeper tilt than the optimal 38 degrees in areas prone to heavy snowfall, allowing snow to slide off more easily
• Implement automated cleaning systems or regular maintenance schedules to remove dust deposits, especially after dust storm events
• Select high-quality panels with better temperature coefficients to minimize efficiency losses during temperature extremes
• Consider anti-soiling coatings for panels to reduce dust adhesion and make cleaning more effective
• Install micro-inverters or power optimizers to minimize the impact of partial shading or soiling on overall system performance

With proper system design and maintenance protocols that address these regional challenges, solar PV installations in Chifeng can achieve performance closer to their theoretical potential throughout the year, though seasonal variations will remain significant.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

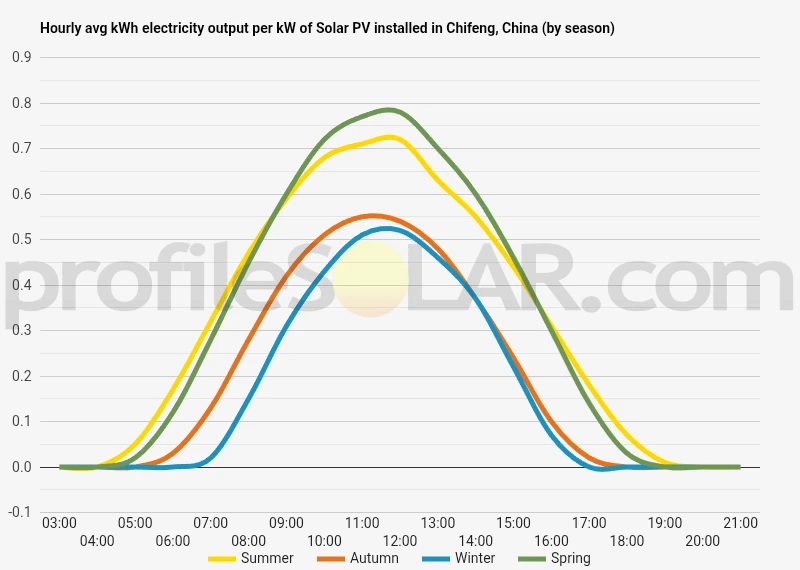

Solar output per kW of installed solar PV by season in Chifeng

Seasonal solar PV output for Latitude: 42.2683, Longitude: 118.9636 (Chifeng, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 38° South in Chifeng, China

To maximize your solar PV system's energy output in Chifeng, China (Lat/Long 42.2683, 118.9636) throughout the year, you should tilt your panels at an angle of 38° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chifeng, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chifeng, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 38° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	47° South in Autumn	57° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chifeng, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chifeng, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chifeng, China

Chifeng, located in the Inner Mongolia Autonomous Region of China, presents a diverse topographical landscape characterized by a transition between the vast Mongolian Plateau and the North China Plain. The terrain around Chifeng (42.2683°N, 118.9636°E) features a mix of rolling hills, grasslands, plateaus, and river valleys, creating a varied elevation profile that ranges from approximately 500 to 1,500 meters above sea level. The northern and western areas of Chifeng consist primarily of the southeastern extension of the Mongolian Plateau, with gently undulating grasslands and scattered low mountains. These open, elevated areas receive abundant sunlight throughout the year, making them potentially suitable for solar photovoltaic development. The relatively flat terrain in these plateau regions would minimize construction challenges and shadow effects that can reduce solar panel efficiency.

River Valleys and Plains

The Xilamulun River flows through the region, creating fertile valleys that contrast with the surrounding higher terrain. These river valleys feature alluvial plains with relatively flat topography, though they are more valuable for agricultural purposes than for solar installations. The city center of Chifeng itself sits in one such valley area, surrounded by higher terrain on multiple sides. To the south and southeast of Chifeng, the landscape gradually transitions toward the North China Plain, with decreasing elevation and more agricultural development. These areas feature gentler slopes and more human settlement, with a mixture of farmland and semi-arid conditions.

Optimal Areas for Solar PV Development

The most promising areas for large-scale solar PV development near Chifeng would be the elevated grassland regions to the north and northwest of the city. These areas combine several favorable characteristics: First, they feature relatively flat or gently sloping terrain that would minimize grading and site preparation costs while allowing for efficient panel layout. The open nature of these grasslands means minimal natural obstacles or shadows that could interfere with solar collection. Second, these elevated plateau regions typically experience less atmospheric dust and pollution compared to the more densely populated valley areas, resulting in clearer skies and more direct solar radiation reaching ground level. Third, the semi-arid climate of these northern grasslands means they have limited agricultural value compared to the river valleys, making them more appropriate for alternative land uses such as energy generation. The western portions of Chifeng prefecture also offer promising locations, with similar grassland topography and relatively sparse population density. These areas provide substantial open space for large-scale installations while being close enough to existing transmission infrastructure to facilitate grid connection. Areas to avoid would include the steeper mountain slopes found in parts of the region, particularly in the eastern sections, as well as the fertile river valleys that have higher value for agricultural production. The southeastern portions of the region, with their transition to more densely populated lowlands, would also present more land-use conflicts and potentially higher land acquisition costs. In summary, the optimal locations for solar PV development around Chifeng would be the elevated, gently rolling grassland plateaus to the north and west of the city center, where the combination of favorable topography, abundant sunlight, and reduced competition with other land uses creates ideal conditions for utility-scale solar energy production.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
