Chizhou, Anhui, China presents a reasonably good location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should understand.

Seasonal Solar Performance

The solar energy output at Chizhou varies significantly throughout the year. Summer delivers the strongest performance at 4.85 kWh per day per kW of installed solar capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 3.97 kWh per day per kW, while autumn produces 4.05 kWh per day per kW. Winter presents the most challenging period for solar generation, dropping to just 3.04 kWh per day per kW of installed capacity. This represents a substantial decrease of nearly 40% compared to summer output, which is typical for locations in the Northern Sub Tropics at this latitude. For fixed panel installations at this location, the optimal tilt angle is 28 degrees facing south to maximize total year-round solar production.

Environmental and Weather Challenges

Several local factors in Chizhou can significantly impact solar panel performance and require careful consideration during installation:

• High humidity and monsoon conditions: The subtropical climate brings intense humidity and heavy rainfall, particularly during summer months, which can reduce solar irradiance and create maintenance challenges
• Air pollution: As an industrial region in China, Chizhou experiences periodic air quality issues that can reduce solar panel efficiency by blocking sunlight
• Dust accumulation: Fine particulate matter from industrial activities and seasonal dust can coat panels, significantly reducing their output
• Extreme weather events: The region is susceptible to typhoons and severe storms that can damage installations

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective:

• Enhanced drainage systems: Install panels with adequate spacing and drainage to prevent water pooling and ensure quick drying after rain
• Regular cleaning schedules: Implement frequent panel cleaning, especially during dusty periods, using automated cleaning systems where feasible
• Robust mounting systems: Use reinforced mounting structures designed to withstand high winds and storm conditions typical of the region
• Anti-reflective coatings: Apply specialized coatings that help panels maintain efficiency even when atmospheric conditions reduce direct sunlight
• Monitoring systems: Install performance monitoring to quickly identify when panels need cleaning or maintenance due to environmental factors

Despite these challenges, Chizhou's location offers decent solar potential, particularly during the warmer months when energy demand for cooling is typically highest.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

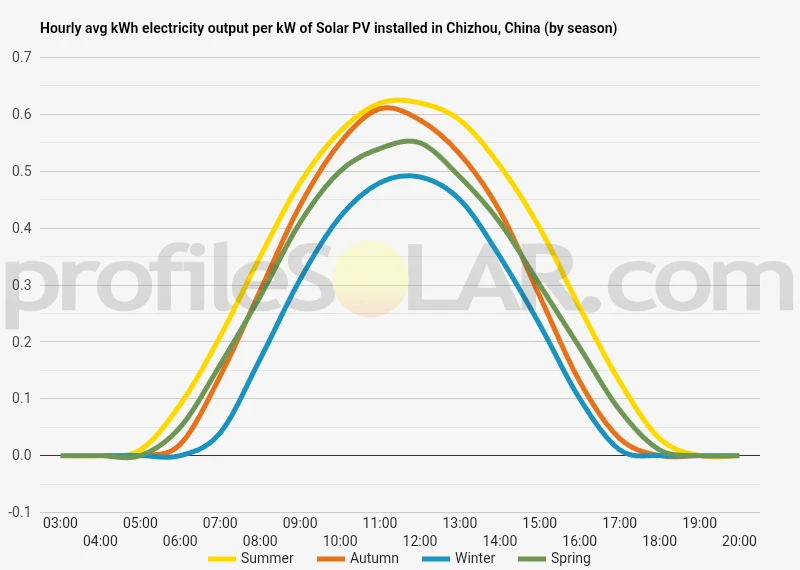

Solar output per kW of installed solar PV by season in Chizhou

Seasonal solar PV output for Latitude: 30.658, Longitude: 117.4731 (Chizhou, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Chizhou, China

To maximize your solar PV system's energy output in Chizhou, China (Lat/Long 30.658, 117.4731) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chizhou, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chizhou, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° South in Summer	36° South in Autumn	46° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chizhou, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chizhou, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chizhou, China

Topographical Features Around Chizhou

Chizhou sits in a geographically diverse region of Anhui Province, positioned along the southern bank of the Yangtze River. The city occupies a transitional zone where the relatively flat Yangtze River valley meets the mountainous terrain of southern Anhui. This creates a varied landscape that includes river plains, rolling hills, and significant mountainous areas.

The most prominent topographical feature in the region is Mount Jiuhua, one of China's four sacred Buddhist mountains, which rises dramatically to the southwest of the city center. This mountain range creates substantial elevation changes across the area, with peaks reaching over 1,300 meters above sea level. The mountain terrain extends across much of the southern portions of Chizhou's administrative area, characterized by steep slopes, deep valleys, and densely forested hillsides.

Moving northward toward the Yangtze River, the landscape gradually transitions into gentler terrain. The river valley itself features relatively flat alluvial plains that have been shaped by centuries of river activity. These plains are interspersed with low hills and gentle undulations, creating a more moderate topography that contrasts sharply with the mountainous south.

The region also contains numerous smaller waterways and tributaries that flow northward toward the Yangtze, creating additional valleys and drainage patterns throughout the landscape. These water features have carved out corridors of flatter land between the hills and provide natural boundaries that influence the overall topographical character of the area.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Chizhou would be found in the northern sections of the region, particularly in the areas closest to the Yangtze River. These river valley plains offer the essential combination of relatively flat terrain and minimal shading from surrounding topographical features. The gentle slopes and open expanses in these areas would allow for efficient panel placement and optimal solar exposure throughout the day.

The low-lying agricultural areas and former floodplains near the river present particularly attractive opportunities for solar development. These zones typically have fewer trees and natural obstructions, while their proximity to existing transportation infrastructure along the river corridor would facilitate construction and maintenance access. The relatively stable ground conditions in these alluvial areas would also provide suitable foundations for large solar arrays.

Areas with gentle south-facing slopes in the transitional zone between the river plains and the foothills could also prove viable for solar installations. These locations would benefit from natural drainage while avoiding the steeper gradients that would complicate construction and increase development costs. However, careful site selection would be necessary to avoid areas where nearby hills might create significant shadows during parts of the day.

The mountainous regions to the south, while offering potentially excellent solar exposure on properly oriented slopes, would generally be unsuitable for large-scale development due to the challenging terrain, limited access, and environmental sensitivity of these forested mountain areas. The steep gradients, rocky soils, and ecological importance of the Mount Jiuhua region would make such locations impractical for major solar installations.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
