Location estimate

Dali

Yunnan · China

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

5.23

kWh/day

Autumn

4.73

kWh/day

Winter

4.64

kWh/day

Spring

6.39

kWh/day

Shared scale: 0–7.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Dali, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 5.23 5.23 × 1 kWp = 5.23 kWh/day
Autumn 4.73 4.73 × 1 kWp = 4.73 kWh/day
Winter 4.64 4.64 × 1 kWp = 4.64 kWh/day
Spring 6.39 6.39 × 1 kWp = 6.39 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
5.23
Autumn · kWh/day
4.73
Winter · kWh/day
4.64
Spring · kWh/day
6.39

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 24 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
24°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
9°South
Autumn
Sep, Oct, Nov
31°South
Winter
Dec, Jan, Feb
41°South
Spring
Mar, Apr, May
19°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Dali, Yunnan, China.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 9 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

9° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 31 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

31° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 41 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

41° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 19 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

19° tilt · South

Illustrative direction; exact azimuth not recorded.

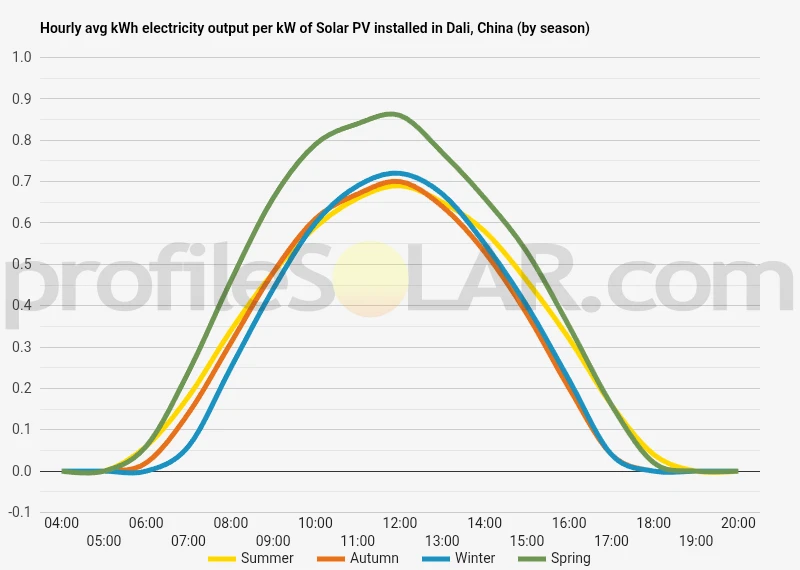

Historical hourly-by-season solar output chart for Dali, China. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Dali, China

Hourly profiles by season — Dali, China · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Dali, China · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Dali

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 2.76 m

Proportional side viewDesign sun: ≈ 40.96° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 0.94 m
Added margin
≈ 0 m
Gap including margin
≈ 0.94 m
Panel horizontal footprint
≈ 1.83 m
Panel vertical rise
≈ 0.81 m
Pitch before margin
≈ 2.76 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
24°
Added margin
0 m
Latitude from the catalogue
25.585900000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.8270909152852017 m
Panel vertical rise
0.8134732861516003 m
Calculated clear gap
0.936971860947091 m
Pitch before margin
2.7640627762322927 m
Gap including margin
0.936971860947091 m
Row pitch including margin
2.7640627762322927 m
Design solar elevation
40.96431715318635°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Dali

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

<h3>Solar Energy Production in Dali, China</h3>

Read the full article

Dali, China, located at latitude 25.5859° and longitude 100.2085° in the Northern Sub-Tropics, offers very favorable conditions for solar PV energy generation throughout the year. The seasonal electricity output shows strong potential across all four seasons, with some notable variations that make certain periods particularly productive. Spring stands out as the most productive season in Dali, with an impressive 6.39 kWh per day for each kilowatt of installed solar capacity. This exceptional spring performance is followed by summer with 5.23 kWh/day, autumn with 4.73 kWh/day, and winter with 4.64 kWh/day. Winter is about 11% below summer in these estimates, although spring is noticeably stronger than either. This gives Dali a smaller summer-to-winter contrast than many higher-latitude locations. For fixed solar panels in Dali, the recorded year-round reference is 24 degrees facing South. The reference uses simplified solar geometry and does not identify the best layout for each mountain-side or urban property. <h3>Environmental and Weather Considerations</h3> Dali’s mountain-and-lake setting creates an important distinction between regional solar potential and the hours of sunlight reaching a particular array. The Cangshan skyline, local ridges and nearby buildings can interrupt direct sunlight at different times of day. Moving up a slope does not necessarily open every part of that skyline. Cloud cover reduces incoming light, while ordinary photovoltaic modules can also use diffuse light. The seasonal averages do not attribute a particular share of lost generation to monsoon rain, industrial pollution or agricultural burning. Dust or other deposits on the glass can reduce transmission. Their actual accumulation, local rainfall and the panel tilt guide maintenance, rather than a universal cleaning interval or an assumed advantage from self-cleaning equipment. For homes and businesses around the cultivated plain and lakeside settlement, matching daytime demand to generation can make use of the stronger spring output. A larger array increases rated capacity but does not remove cloudy periods or the shadow of a mountain. The recorded winter output remains useful for comparing seasonal energy availability, rather than promising a constant daily supply.

Topography around Dali

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Dali lies in Yunnan Province at approximately 25.5859°N, 100.2085°E, in a landscape shaped by the contrast between Cangshan and Erhai Lake. The mountain range forms the western backdrop to the cultivated plain, while the lake opens the landscape to the east. Settlement, agriculture and the old Tea Horse Road corridor are part of this setting.

Read the full topography description

Cangshan has nineteen peaks along a range of about 50 kilometres. Malong, the highest, reaches 4,122 metres. Deep valleys, cliffs and creeks divide the mountain landscape, with vegetation changing from lower forest to alpine habitats. Around Erhai, lowland agriculture and animal husbandry occupy a very different terrain from the high ridges. <h3>Mountain Front and Lakeside Plain</h3> The contrast between steep mountain ground and the flatter settled plain matters more for array layout than a single elevation assigned to all of Dali. Creeks and ravines interrupt the mountain front; fields, roads and buildings divide the lower ground. A broad valley view and a locally open roof can therefore occur close to rising terrain. An array near the western mountain front can have a high western horizon. How long that skyline interrupts direct sun depends on the exact position and season. Moving east toward the lake changes the apparent height of Cangshan but does not remove nearby buildings, trees or other obstructions. <h3>Solar Development in a Working Landscape</h3> The eastern foothills cannot be ranked as a preferred development band merely because they have moderate slopes. A South-facing module surface can be supported on level ground; a hillside is not required to obtain the recorded facing direction. Conversely, a natural incline can introduce different row heights and uneven spacing needs. The agricultural lowlands and the Erhai shore have existing productive, community and ecological uses. Open-looking ground east of the lake is not evidence of negligible food-production effects or available land. Roads visible in the basin likewise do not establish an electrical connection for a new array. Higher ground around Dali does not automatically provide clearer skies, fewer shadows or more efficient modules. The local horizon, usable footprint and arrangement describe the physical solar opportunity more directly than a blanket claim that high-altitude plateaus are ideal.

Technical location reference

Approximate map point used for Dali, China

This coordinate is the calculation reference for Dali, China. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
25.585900000000000000, 100.208500000000000000
Originally displayed coordinate
lat25.5859 / long100.2085

How the estimate works

How this Dali estimate was calculated

Here is how I calculated the location estimate for Dali, China.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Dali Location estimate includes and leaves out

Use the Dali figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
