Location estimate

Haining

Zhejiang · China

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

4.92

kWh/day

Autumn

3.82

kWh/day

Winter

3.03

kWh/day

Spring

4.27

kWh/day

Shared scale: 0–5.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Haining, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 4.92 4.92 × 1 kWp = 4.92 kWh/day
Autumn 3.82 3.82 × 1 kWp = 3.82 kWh/day
Winter 3.03 3.03 × 1 kWp = 3.03 kWh/day
Spring 4.27 4.27 × 1 kWp = 4.27 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
4.92
Autumn · kWh/day
3.82
Winter · kWh/day
3.03
Spring · kWh/day
4.27

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 28 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
28°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
15°South
Autumn
Sep, Oct, Nov
36°South
Winter
Dec, Jan, Feb
46°South
Spring
Mar, Apr, May
23°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Haining, Zhejiang, China.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 15 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

15° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 36 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

36° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 46 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

46° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 23 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

23° tilt · South

Illustrative direction; exact azimuth not recorded.

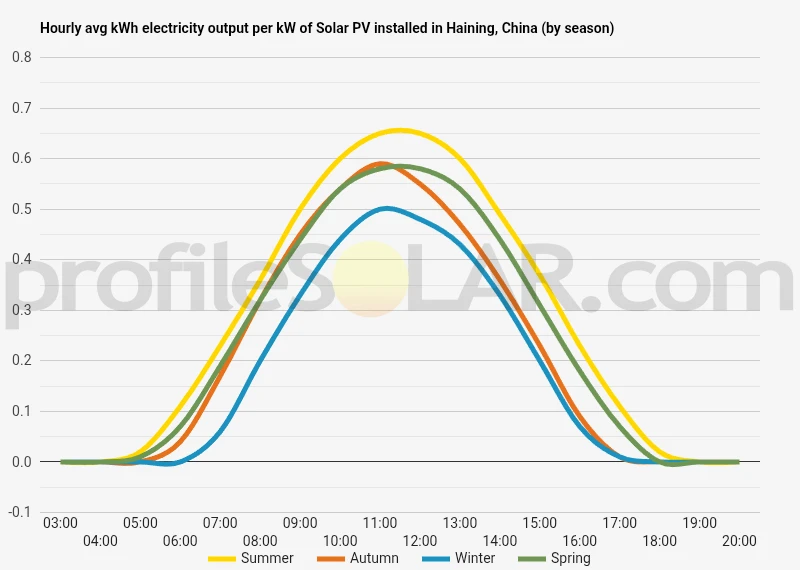

Historical hourly-by-season solar output chart for Haining, China. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Haining, China

Hourly profiles by season — Haining, China · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Haining, China · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Haining

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 3.06 m

Proportional side viewDesign sun: ≈ 36.01° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 1.29 m
Added margin
≈ 0 m
Gap including margin
≈ 1.29 m
Panel horizontal footprint
≈ 1.77 m
Panel vertical rise
≈ 0.94 m
Pitch before margin
≈ 3.06 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
28°
Added margin
0 m
Latitude from the catalogue
30.538400000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.765895185717854 m
Panel vertical rise
0.9389431255717816 m
Calculated clear gap
1.2917839801166988 m
Pitch before margin
3.0576791658345526 m
Gap including margin
1.2917839801166988 m
Row pitch including margin
3.0576791658345526 m
Design solar elevation
36.01181715318636°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Haining

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Haining’s recorded estimates at 30.5384° N, 120.6889° E show generation in every season, with a moderate summer-to-winter contrast. Average daily electrical output per kW of rated installed PV capacity is 4.92 kWh/day in summer, 3.82 in autumn, 3.03 in winter and 4.27 in spring. Summer is about sixty-two per cent above winter. Spring is the second-highest estimate, while autumn remains between spring and winter.

Read the full article

This pattern is useful for comparing solar with electricity use across the year. A building with steady daytime activity can receive a contribution in all four seasons, although the winter estimate is smaller. Seasonal averages smooth over individual days and do not establish a continuous supply. They also describe electrical yield, rather than a measured change in the conversion efficiency of the modules. The recorded fixed-panel reference is 28° from horizontal, facing South. It is a simplified, output-weighted solar-geometry reference for year-round orientation. The practical arrangement depends on the roof’s planes and obstacles, or on the spacing of rows on a ground site. A change to the reference tilt has no quantified benefit in the four seasonal figures alone. Haining lies on the southern part of the Hangzhou–Jiaxing–Huzhou plain, north of the Qiantang River. Most of the municipal terrain is low and level, with a dense river and canal network and isolated hills in the northeast and southeast. The city’s landscape is consequently more specific than a generic Yangtze Delta plain: water management, embankments, developed surfaces and small residual hills all influence individual installations. A roof above nearby buildings may retain a broad southern sky, while one beside a tree, parapet or taller industrial structure can experience partial shade. On low ground, a clear view across a canal or field does not establish drainage or access conditions. The Qiantang frontage is also a different setting from an inland canal-side neighbourhood; one description of atmospheric or structural exposure should not be applied to both without local evidence. Monitoring can help distinguish changes associated with shade, equipment behaviour and deposits on the glass. Cleaning should follow observed soiling and maintenance guidance, while module ventilation should be assessed for the actual mounting arrangement. Persistent winter smog, dense seasonal fog and a need for automated washing cannot be inferred from the location alone. Haining’s seasonal resource is best used with a roof or ground layout that recognises the nearby water network and the real skyline.

Topography around Haining

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Haining occupies the Hangzhou–Jiaxing–Huzhou plain on the north side of the Qiantang River. Its municipal landscape is predominantly flat, crossed by a dense network of rivers and canals. Primary local environmental descriptions identify a general fall from the higher southern ground towards the lower north, with isolated hills concentrated in the northeast and southeast. The Qiantang lies along the southern boundary; it is not a northern extension of the plain towards the sea.

Read the full topography description

The lowland surface reflects several processes. Local reports distinguish river deposition, marine deposition, erosion of residual hills and human alteration of the ground. The Qiantang estuary and the inland water network therefore provide a better framework than attributing all soils to sediment carried by the Yangtze. A municipal landform description still cannot identify the exact material beneath one building or foundation. The inland channels are organised principally through the canal and Shangtang River systems, with parts of the municipality also influenced by the Qiantang. Embankments and water-control works are important components of this low-relief landscape. Their presence shows that drainage is managed; it does not prove that a field has naturally excellent drainage or that a new installation can discharge water without affecting its neighbours. For roof-mounted panels, broad regional flatness can reduce distant terrain obstruction, but nearby structures and trees remain important. A parapet, adjacent factory or small hill can occupy a significant part of the useful sky from a particular roof. In a ground array, the panels themselves can create shade between rows, so flatness alone does not guarantee uniform exposure. For a larger installation, small elevation differences and drainage connections should be located before roads, cable routes and rows are fixed. A channel-side site, reclaimed or filled ground and the foot of a residual hill can have different ground and water relationships. Local environmental reports describe variable shallow fill along some works corridors, which further cautions against assigning stable foundations to the whole plain. Haining’s agricultural areas, industrial districts and waterways are established uses rather than an inventory of spare solar land. A north-western field cannot be ranked above another compass sector simply because it looks open. The useful topographic assessment is the relationship between the actual plot, the canal or river system, any engineered embankment and the immediate sun-facing horizon.

Technical location reference

Approximate map point used for Haining, China

This coordinate is the calculation reference for Haining, China. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
30.538400000000000000, 120.688900000000000000
Originally displayed coordinate
lat30.5384 / long120.6889

How the estimate works

How this Haining estimate was calculated

Here is how I calculated the location estimate for Haining, China.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Haining Location estimate includes and leaves out

Use the Haining figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
