Hanzhong, Shaanxi, China, located in the Northern Sub Tropics at coordinates 33.0765°N, 107.0305°E, presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations in output.

Seasonal Solar Performance

The solar energy production at this location shows significant seasonal fluctuation. Summer delivers the highest output at 5.04 kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows as the second-best season with 4.61 kWh per day per kW, offering excellent solar conditions as well. The challenging months occur during autumn and winter, when production drops considerably to 3.00 kWh and 2.99 kWh per day per kW respectively. This represents roughly a 40% decrease compared to summer peak performance, which is typical for locations at this latitude but requires careful consideration for energy planning. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 29 degrees facing south. This angle maximizes total annual production by accounting for the sun's changing position throughout the year and weighting the optimal angles based on actual solar irradiance potential.

Environmental and Weather Challenges

Several local factors in Hanzhong can significantly impact solar energy production and require preventative measures during installation:

• High humidity and frequent fog: Hanzhong's location in a river valley creates persistent moisture conditions that can reduce solar irradiance and cause condensation on panels
• Heavy seasonal rainfall: The region experiences substantial precipitation, particularly during summer months, which can obstruct sunlight and create soiling issues
• Air pollution: As an industrial city, Hanzhong faces air quality challenges that can create a haze layer reducing solar panel efficiency
• Dust accumulation: The continental climate brings dust storms and particulate matter that settles on panel surfaces

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented. Installing panels with adequate ventilation spacing prevents moisture buildup and improves cooling efficiency. Anti-reflective coatings can help panels perform better in hazy conditions caused by pollution or humidity. Regular cleaning systems or easy access for maintenance becomes crucial given the dust and pollution factors. Choosing panels with hydrophobic coatings can help rain naturally clean the surfaces more effectively. Additionally, installing monitoring systems allows for quick identification of performance drops due to environmental factors. The seasonal production pattern suggests that battery storage or grid-tie systems would be beneficial to balance the significant difference between summer peak production and winter low output periods.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

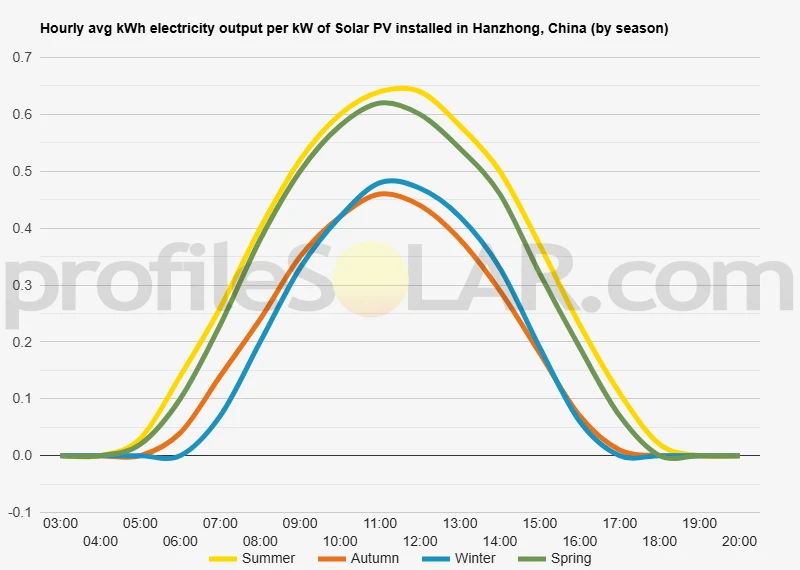

Solar output per kW of installed solar PV by season in Hanzhong

Seasonal solar PV output for Latitude: 33.0765, Longitude: 107.0305 (Hanzhong, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Hanzhong, China

To maximize your solar PV system's energy output in Hanzhong, China (Lat/Long 33.0765, 107.0305) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Hanzhong, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Hanzhong, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	38° South in Autumn	48° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Hanzhong, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Hanzhong, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Hanzhong, China

Topographical Features of Hanzhong Region

Hanzhong sits in a distinctive geographical position within Shaanxi Province, nestled in the Hanzhong Basin which forms part of the broader Han River valley system. This ancient city occupies a relatively flat plain surrounded by dramatic mountain ranges that create a natural amphitheater-like setting. The basin itself represents one of the most significant flat areas in this part of central China, with the urban center and surrounding agricultural lands sitting at approximately 500 meters above sea level.

The topography around Hanzhong is dominated by the imposing presence of the Qinling Mountains to the north and the Daba Mountains to the south. These mountain ranges rise steeply from the valley floor, with peaks reaching well over 2,000 meters in elevation. The Qinling range, in particular, serves as a major geographical and climatic divide between northern and southern China, creating a natural barrier that influences weather patterns and seasonal variations in the region.

The Han River flows eastward through the basin, creating additional flat alluvial plains along its course. These river plains extend both northeast and southeast from Hanzhong, forming corridors of relatively level terrain that contrast sharply with the mountainous terrain on either side. The river system has carved out these gentle valleys over millennia, depositing fertile sediments that have created some of the most productive agricultural land in the region.

Terrain Characteristics and Land Use

The immediate vicinity of Hanzhong features predominantly flat to gently rolling terrain, with agricultural fields, orchards, and urban development occupying much of the basin floor. Moving away from the city center, the landscape gradually transitions to more undulating hills before rising more dramatically toward the mountain slopes. The southern portions of the basin tend to have slightly more varied topography, with low hills and ridges creating a more complex terrain pattern.

Rice paddies, wheat fields, and various crop cultivation dominate the agricultural landscape, taking advantage of the fertile soils and relatively flat terrain. These agricultural areas are interspersed with small villages, rural roads, and irrigation infrastructure that has been developed to support intensive farming activities. The existing land use patterns reflect the practical advantages of the level terrain for both agriculture and transportation.

Optimal Areas for Large-Scale Solar Development

The Hanzhong Basin itself presents the most favorable topographical conditions for large-scale solar photovoltaic installations. The extensive flat areas currently used for agriculture offer ideal conditions for solar development, with minimal grading requirements and excellent accessibility for construction and maintenance activities. These plains provide the gentle slopes and consistent orientation that maximize solar collection efficiency while minimizing installation costs.

The areas extending northeast and southeast along the Han River valley represent particularly promising locations for solar development. These river plain corridors combine favorable topography with good transportation access, making them practical choices for large installations that require significant infrastructure support. The terrain in these areas is sufficiently flat to allow for optimal panel positioning while remaining elevated enough above the river to avoid flooding concerns.

The gently rolling hills on the southern edges of the basin also offer potential for solar development, particularly on south-facing slopes that can provide excellent solar exposure. While these areas may require more careful site planning and potentially more grading work, they could offer advantages in terms of land availability and potentially lower land costs compared to prime agricultural areas.

The mountainous terrain surrounding the basin would generally be unsuitable for large-scale solar installations due to steep slopes, challenging access, and the significant infrastructure requirements that would be needed to develop such remote and difficult terrain. However, some of the broader valley systems that extend into these mountains might offer smaller-scale opportunities where the topography permits and access can be reasonably achieved.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.
