Hebi, Henan, China, located at coordinates 35.7323, 114.2862 in the Northern Temperate Zone, offers a moderately favorable location for solar PV energy generation throughout the year. The city experiences seasonal variations in solar electricity output that follow predictable patterns.

Seasonal Solar Performance

Solar panels in Hebi perform best during the warmer months. Summer yields the highest electricity generation at 5.28kWh per day for each kilowatt of installed capacity. Spring follows closely behind with 5.20kWh/day per kW. Production decreases significantly in autumn (3.36kWh/day) and reaches its lowest point in winter (3.08kWh/day).

This seasonal pattern creates a year with two distinct production periods: a high-output period spanning spring and summer, and a lower-output period during autumn and winter. The difference between the best and worst seasons is substantial, with summer producing about 71% more electricity than winter.

Optimal Panel Installation

For fixed solar panel installations in Hebi, Henan, the ideal tilt angle to maximize year-round electricity production is 32 degrees facing South. This specific angle optimizes the capture of available sunlight throughout the year, balancing the seasonal variations in sun position.

Environmental Considerations

Several environmental factors may impact solar production in Hebi:

• Air pollution from nearby industrial activities and coal power plants can significantly reduce solar irradiance reaching panels, potentially decreasing efficiency by 10-25% on heavily polluted days.
• Seasonal dust storms in spring, common in northern China, can coat panels with particulate matter.
• Winter snow accumulation may temporarily cover panels, especially during December and January.

Preventative Measures

To maximize solar production in Hebi despite these challenges, several preventative measures are recommended:

• Install automated cleaning systems or implement regular manual cleaning schedules, especially before and after dust storm season.
• Consider slightly steeper panel angles (35-40 degrees) in areas prone to snow accumulation to promote natural snow shedding.
• Use anti-soiling glass coatings that reduce dust adhesion and make cleaning more effective.
• Implement air quality monitoring to correlate production drops with pollution events and adjust maintenance accordingly.

With proper installation at the recommended 32-degree south-facing angle and appropriate maintenance measures, solar PV systems in Hebi can effectively capitalize on the strong spring and summer production periods while minimizing losses during the challenging autumn and winter months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

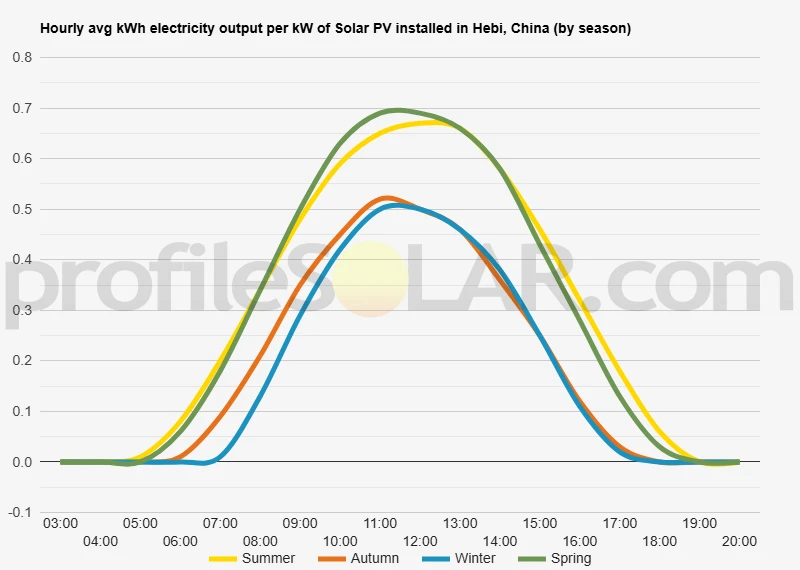

Solar output per kW of installed solar PV by season in Hebi

Seasonal solar PV output for Latitude: 35.7323, Longitude: 114.2862 (Hebi, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Hebi, China

To maximize your solar PV system's energy output in Hebi, China (Lat/Long 35.7323, 114.2862) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Hebi, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Hebi, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
19° South in Summer	41° South in Autumn	51° South in Winter	28° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Hebi, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Hebi, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Hebi, China

The region surrounding Hebi, located in Henan Province of central China, presents a diverse topographical landscape characterized by a transition from plains to mountains. Situated at the northern edge of the Henan Province, Hebi's terrain is primarily defined by the southern foothills of the Taihang Mountain Range to the north and northwest, which gradually gives way to the North China Plain extending southward. The northern portion of the Hebi area features low mountains and hills with elevations ranging from approximately 200 to 800 meters above sea level. These hills are often characterized by gentle slopes and rounded peaks, the result of centuries of erosion. The terrain becomes increasingly rugged as one moves northward into the Taihang Mountains proper.

Plains and River Valleys

To the south and southeast of Hebi city proper, the landscape flattens considerably into the expansive North China Plain. This area has an average elevation of about 50-100 meters above sea level and features fertile alluvial soils deposited by the region's river systems. The Qi River, a tributary of the Yellow River, flows through the region, creating valleys and floodplains that have historically supported intensive agriculture. The transition zone between the mountains and plains creates a varied landscape of rolling hills, terraced farmland, and small plateaus. This gradual descent from the Taihang foothills to the North China Plain creates numerous south-facing slopes throughout the region.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas around Hebi offer promising conditions: The southern and southeastern plains provide extensive flat terrain that would minimize site preparation costs for large solar arrays. These areas offer good solar exposure with minimal shadowing effects from topographical features. The flat nature of these lands also simplifies construction logistics and maintenance access. The gently rolling hills and plateaus in the transition zone between mountains and plains present particularly advantageous locations. South-facing slopes in this region would receive optimal solar radiation throughout the year. These elevated areas also typically experience less atmospheric dust and haze compared to the lower plains, potentially increasing solar efficiency. Some of the broad valley areas between the foothills could also serve as excellent solar farm locations, particularly where they offer southern exposure and protection from northern winds. These valleys often have already-established road access while being less suitable for intensive agriculture than the prime farmland of the plains. The more mountainous regions to the north, while having some suitable plateaus and south-facing slopes, generally present more challenges for large-scale installations due to difficult access, steeper terrain, and potential shadowing from adjacent peaks. However, some specific locations on southern mountain slopes with good road access could be suitable for smaller installations. It's worth noting that land use considerations are particularly important in this region. The fertile plains have historically been used for intensive agriculture, so solar development might be more appropriate on marginal agricultural lands in the transition zones or on south-facing hillsides that are less suitable for farming.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
