Huaihua, Hunan, China, located in the Northern Sub Tropics at coordinates 27.5583, 110.0046, offers varying potential for solar energy generation throughout the year. This location experiences significant seasonal fluctuations in solar electricity production that prospective solar installers should consider.

Seasonal Solar Production

Solar panels in Huaihua perform best during summer months, generating approximately 5.31kWh per day for each kilowatt of installed capacity. This production decreases to 3.66kWh/day in autumn, drops significantly to 2.43kWh/day during winter months, and recovers somewhat to 2.89kWh/day in spring.

Summer clearly represents the peak production period, with output more than double the winter generation. This substantial seasonal variation indicates that while solar energy is viable year-round, supplementary energy sources might be necessary during the less productive winter months.

Optimal Panel Installation

For fixed solar panel installations in Huaihua, Hunan, the ideal tilt angle to maximize year-round energy production is 24 degrees facing South. This angle has been calculated by analyzing solar elevation at this specific latitude, weighted by daily photovoltaic potential using NASA's solar irradiance data, and accounting for Earth's elliptical orbit.

Environmental Considerations

Several significant environmental factors could impact solar production in Huaihua:

• High humidity and frequent rainfall in this subtropical region can reduce panel efficiency and increase maintenance requirements
• Seasonal monsoons may bring extended cloudy periods, particularly affecting winter and spring production
• Air pollution from nearby industrial activities could deposit particulate matter on panels, decreasing their effectiveness

To mitigate these challenges, solar installations in Huaihua should incorporate self-cleaning panel technologies or regular maintenance schedules. Installing panels at the recommended 24-degree angle also helps with natural cleaning during rainfall. Additionally, quality inverters designed to perform efficiently in humid conditions should be selected.

While not ideal for year-round consistent production compared to more arid regions, Huaihua still offers viable solar potential, especially if systems are designed with these seasonal variations and environmental factors in mind.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

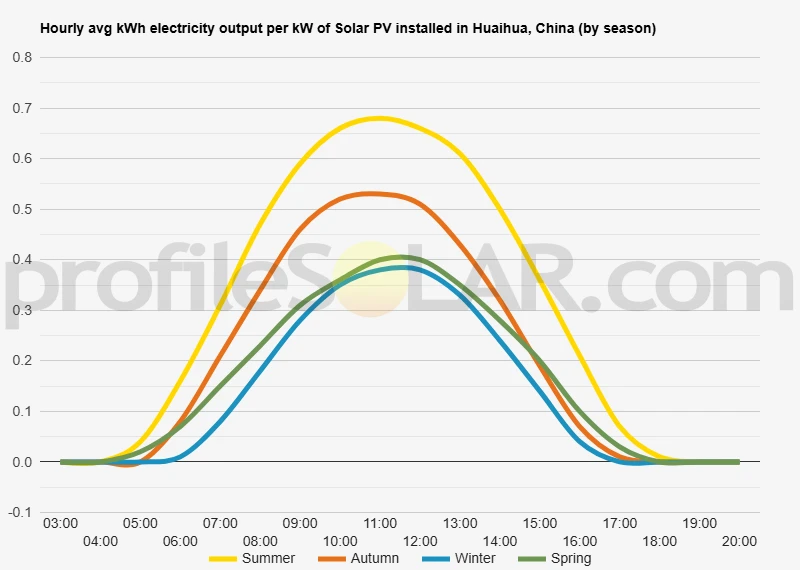

Solar output per kW of installed solar PV by season in Huaihua

Seasonal solar PV output for Latitude: 27.5583, Longitude: 110.0046 (Huaihua, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° South in Huaihua, China

To maximize your solar PV system's energy output in Huaihua, China (Lat/Long 27.5583, 110.0046) throughout the year, you should tilt your panels at an angle of 24° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Huaihua, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Huaihua, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	32° South in Autumn	43° South in Winter	20° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Huaihua, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Huaihua, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Huaihua, China

The topography around Huaihua, China presents a complex and varied landscape characteristic of the transition zone between the Yunnan-Guizhou Plateau and the hills of western Hunan Province. Situated in a mountainous region of central China, Huaihua is nestled within a landscape dominated by rolling hills, steep mountains, and river valleys that have been carved over millennia by the Yuan River and its tributaries. The terrain in this region is predominantly characterized by mid-elevation mountains interspersed with narrow valleys. Elevations typically range from approximately 200 meters above sea level in the river valleys to peaks reaching 1,500 meters in the surrounding mountains. This creates a rugged, undulating topography with significant variations in slope and aspect throughout the area.

Mountain Features

The mountains surrounding Huaihua are part of the greater Wuling Mountain range system, which stretches across parts of Hunan, Hubei, Guizhou, and Chongqing. These mountains are generally rounded rather than jagged, having been worn down by erosion over geological time. They are predominantly composed of limestone and sandstone formations, which have contributed to the development of karst topography in certain areas, featuring caves, sinkholes, and underground streams.

Valley Systems

The Yuan River valley provides one of the few relatively flat areas in the region, with the city of Huaihua itself situated along this important waterway. The river has created alluvial plains that stand in stark contrast to the surrounding highlands. These valley floors, while limited in extent, represent some of the most accessible and developed land in the region.

Land Use Patterns

The topographical diversity has significantly influenced land use patterns around Huaihua. The steeper slopes are predominantly covered with subtropical evergreen and deciduous forests, while gentler slopes and terraced hillsides have been converted to agricultural use over centuries of human habitation. The valley bottoms are intensively cultivated and also contain the region's urban centers and transportation infrastructure.

Solar PV Potential Areas

For large-scale solar photovoltaic (PV) development, several areas around Huaihua present promising opportunities despite the generally mountainous terrain: The south-facing slopes of hills and mountains offer good potential for solar energy capture, particularly those with inclinations between 15-30 degrees, which would naturally optimize the angle of solar panels toward the sun. These areas would require minimal site preparation for optimal panel orientation. The relatively flat terraces and plateaus that exist at various elevations throughout the region provide suitable locations for larger installations. These areas typically have already been partially modified by human activity, making further development less environmentally impactful. The broader valley floors, particularly in areas not suitable for agriculture or already developed for urban use, present opportunities for substantial solar farms. These locations offer the advantage of easier access for construction and maintenance, as well as proximity to existing electrical infrastructure. Abandoned mining sites and other previously disturbed lands in the region could be repurposed for solar development, providing environmental remediation alongside renewable energy production. The most ideal areas would combine favorable topography with proximity to existing electrical transmission infrastructure, minimizing the need for extensive new power lines across the challenging terrain. Areas near the outskirts of Huaihua city and along major transportation corridors would therefore be particularly advantageous for large-scale solar PV development. Despite these opportunities, developers would need to carefully consider the shadow effects created by the mountainous topography, which could significantly reduce the efficiency of solar installations in certain locations, particularly in narrow valleys or on north-facing slopes.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
