Solar Energy Potential in Huangpu, China

Huangpu, located in Shanghai, China, offers a promising location for solar energy generation throughout the year. Situated in the Northern Sub Tropics, this area experiences varying levels of solar potential across different seasons. Solar output is highest during the summer months, with an average daily production of 5.07 kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.73 kWh/day. Autumn sees a slight decrease in production at 4.08 kWh/day, while winter experiences the lowest output at 3.15 kWh/day. For fixed panel installations in Huangpu, the ideal tilt angle to maximize year-round solar production is 29 degrees facing South. This angle has been calculated taking into account the location's latitude, daily solar elevation angles, and Earth's elliptical orbit.

Optimal Periods for Solar Generation

The most favorable times for solar energy production in Huangpu are during the summer and spring seasons. These periods offer longer daylight hours and generally clearer skies, allowing for increased solar radiation to reach the panels. However, it's worth noting that even during the less productive autumn and winter months, the region still maintains a respectable level of solar output.

Environmental and Weather Factors

While Huangpu presents a generally suitable environment for solar energy production, there are some factors that could potentially impact efficiency: 1. Air pollution: As a major urban center, Shanghai occasionally experiences high levels of air pollution, which can reduce sunlight penetration and affect solar panel performance. 2. Monsoon season: The region is subject to a subtropical monsoon climate, which can bring increased cloud cover and rainfall, particularly during late spring and early summer. To mitigate these challenges, several preventative measures can be taken:

• Regular cleaning: Implement a consistent cleaning schedule to remove air pollution particles and other debris from panel surfaces.
• Anti-soiling coatings: Apply specialized coatings to solar panels to minimize the accumulation of dirt and pollutants.
• Weather-resistant equipment: Use high-quality, weather-resistant solar panels and components designed to withstand humid conditions.
• Smart inverters: Employ advanced inverter technology to optimize performance during periods of variable sunlight.

By considering these factors and implementing appropriate solutions, solar energy systems in Huangpu can achieve optimal performance and contribute significantly to the region's renewable energy portfolio.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

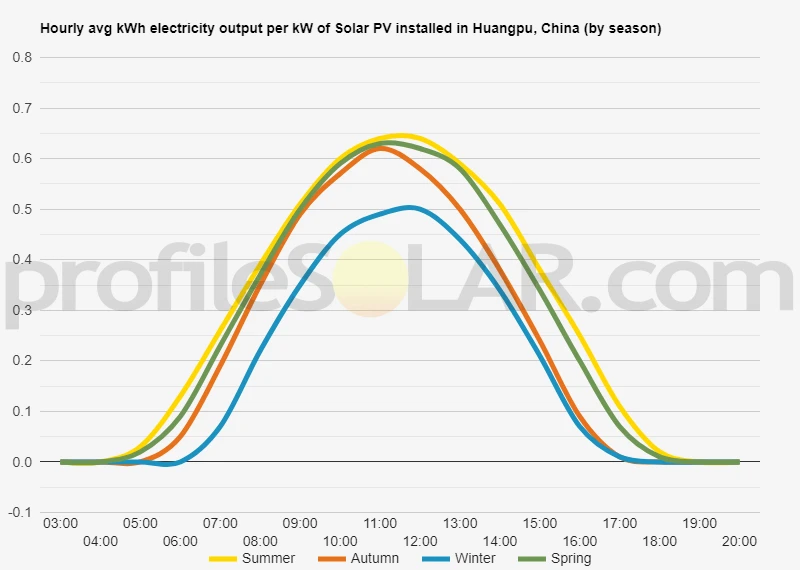

Solar output per kW of installed solar PV by season in Huangpu

Seasonal solar PV output for Latitude: 31.242, Longitude: 121.476 (Huangpu, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Huangpu, China

To maximize your solar PV system's energy output in Huangpu, China (Lat/Long 31.242, 121.476) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Huangpu, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Huangpu, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	47° South in Winter	24° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Huangpu, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Huangpu, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Huangpu, China

The topography around Huangpu, China, which is located in the heart of Shanghai, is predominantly flat and low-lying. This area is part of the Yangtze River Delta, a vast alluvial plain that has been shaped by centuries of river deposits. The terrain is characterized by its low elevation, with most of the land sitting just a few meters above sea level.

Huangpu itself is situated on the western bank of the Huangpu River, which bisects Shanghai. The surrounding landscape is highly urbanized, with dense clusters of skyscrapers and buildings dominating the skyline. Despite the urban development, the underlying topography remains essentially flat, with only minor variations in elevation throughout the immediate area.

As you move away from the city center, the landscape gradually transitions to more open areas, including agricultural land and wetlands. However, even these outlying regions maintain the generally flat character of the delta region. There are no significant hills or mountains in the vicinity of Huangpu.

Regarding areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, the options within the immediate urban area are limited due to the dense development. However, there are potential opportunities in the surrounding regions:

1. Chongming Island: Located north of central Shanghai, this large alluvial island offers more open space and could potentially accommodate solar farms. Its flat terrain and proximity to the city make it a viable option.

2. Western suburbs: As you move west from Huangpu, towards areas like Qingpu and Songjiang districts, there is more available land that could be suitable for solar installations. These areas still benefit from the flat topography while having less dense urban development.

3. Southern coastal areas: The regions south of Shanghai, such as parts of Fengxian and Jinshan districts, have some coastal plains that could be utilized for solar farms. These areas receive good sunlight exposure and have relatively flat terrain.

4. Rooftop installations: Given the limited ground space in urban areas, large-scale rooftop solar projects on industrial buildings, warehouses, and other expansive structures throughout Shanghai could collectively form a significant solar PV capacity.

It's important to note that while the flat terrain is generally favorable for solar installations, factors such as land availability, existing land use, environmental considerations, and local regulations would all play crucial roles in determining the feasibility of large-scale solar PV projects in these areas.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
