Solar Energy Potential in Hwang Chow, Hubei, China

Hwang Chow, Hubei, China, located in the Northern Sub Tropics at coordinates 30.4579, 114.868, presents a reasonably favorable location for solar PV energy generation throughout the year. The location experiences seasonal variations in solar energy production that are worth understanding when planning a solar installation. The seasonal solar energy production at this location shows distinct patterns. Summer is the most productive season, generating 4.97kWh per day for each kilowatt of installed capacity. Autumn follows with 4.24kWh/day, while spring produces 3.79kWh/day. Winter sees the lowest production at 3.01kWh/day per kW installed. This seasonal variation means that Hwang Chow experiences approximately 65% higher solar energy production in summer compared to winter months. Despite this variation, the location maintains reasonable production year-round, with no season dropping below 3kWh/day per kW of installed capacity, making it a viable location for solar energy throughout the year.

Optimal Panel Installation

For fixed solar panel installations in Hwang Chow, Hubei, the ideal tilt angle to maximize year-round energy production is 28 degrees facing South. This specific angle has been calculated by analyzing daily solar elevation angles at this latitude, calculating optimal daily panel tilts, and weighting these angles according to the solar energy potential for each day of the year.

Environmental and Weather Considerations

Several environmental factors may impact solar production in Hwang Chow:

• Seasonal monsoon rains and high humidity in summer months can reduce efficiency despite high solar radiation
• Air pollution and haze from nearby industrial areas may significantly reduce solar irradiance reaching panels
• Occasional dust storms from northern China can deposit particulate matter on panels

To mitigate these challenges, several preventative measures are recommended: Installing an automated cleaning system or implementing regular manual cleaning schedules will help maintain panel efficiency, particularly during dusty periods. Using high-quality panels with anti-reflective coatings can improve performance in hazy conditions. Additionally, ensuring proper drainage around ground-mounted systems will prevent water accumulation during monsoon seasons. With these considerations addressed, Hwang Chow remains a solid location for solar PV installations, with good year-round potential and particularly strong production from late spring through early autumn.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

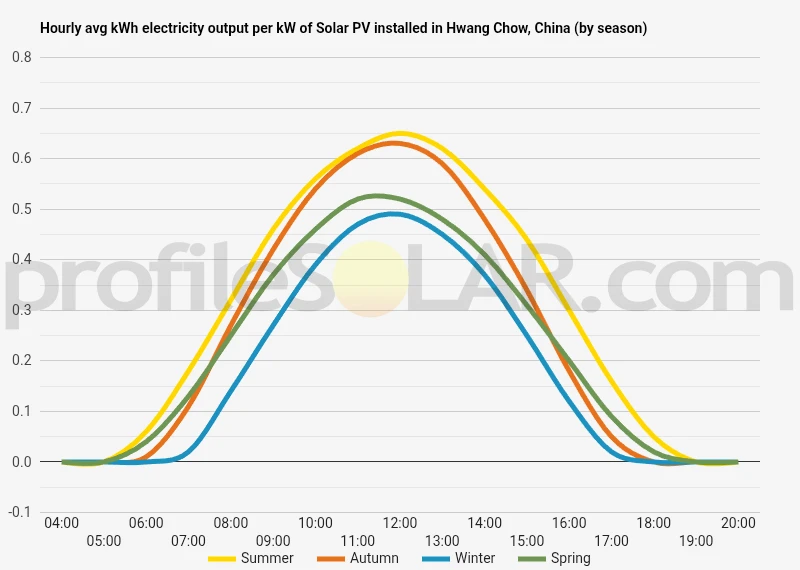

Solar output per kW of installed solar PV by season in Hwang Chow

Seasonal solar PV output for Latitude: 30.4579, Longitude: 114.868 (Hwang Chow, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Hwang Chow, China

To maximize your solar PV system's energy output in Hwang Chow, China (Lat/Long 30.4579, 114.868) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Hwang Chow, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Hwang Chow, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	46° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Hwang Chow, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Hwang Chow, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Hwang Chow, China

The topography around Hwang Chow (also known as Huangzhou) in China's Hubei Province presents a diverse landscape characterized by a mix of flat plains, rolling hills, and water bodies. This area sits within the middle reaches of the Yangtze River basin, one of China's most significant geographical features. The terrain gradually transitions from the relatively flat alluvial plains near the Yangtze River to more undulating landscapes as one moves away from the river system.

River Plains and Lowlands

The immediate vicinity of Hwang Chow features extensive lowland areas that form part of the Jianghan Plain. These flat expanses were formed by centuries of silt deposits from the Yangtze River and its tributaries. The elevation in these plains typically ranges from 20 to 50 meters above sea level, creating broad, open spaces with minimal obstruction. The soil in these regions tends to be fertile alluvium, which has historically supported intensive agriculture.

Rolling Hills and Elevated Terrain

Moving outward from the river plains, the landscape gradually gives way to rolling hills, particularly to the north and east of Hwang Chow. These hills generally rise to elevations between 100 and 300 meters, creating a more varied topographical profile. The hills feature gentler slopes rather than steep inclines, with numerous small valleys and depressions interspersed throughout. This transitional zone between plains and higher elevations creates a patchwork of different terrain types.

Water Features

The area is rich in water resources, with numerous lakes, ponds, and streams dotting the landscape. The most prominent water feature is the Yangtze River itself, which flows to the south of Hwang Chow. Additionally, there are several significant lakes in the region, including parts of the Liangzi Lake system. These water bodies create natural boundaries and divisions in the topography, influencing local climate conditions and land use patterns.

Potential for Solar PV Development

When considering areas near Hwang Chow for large-scale solar photovoltaic (PV) installations, several regions stand out as particularly suitable based on their topographical characteristics. The extensive flat plains of the Jianghan Plain offer ideal conditions for solar PV development. These areas provide large, continuous tracts of land with minimal need for terrain modification. The flat nature of these plains simplifies construction and installation processes, reducing development costs. Additionally, the open nature of the plains means there are fewer natural obstructions that might cast shadows on solar panels, maximizing potential energy capture. The gently rolling hills to the north and east also present opportunities for solar development, particularly on south-facing slopes. These elevated areas often receive more direct sunlight and experience less ground-level fog than the river plains. The moderate slopes can be advantageous for solar installations as they naturally orient panels toward the sun's path, potentially increasing efficiency. Areas of previously disturbed land, such as former industrial sites or less productive agricultural land, would be particularly suitable for solar development from an environmental perspective. Converting these areas to solar farms would minimize impact on natural habitats while providing economic value. It's worth noting that while the lowland areas near rivers and lakes offer flat terrain ideal for construction, they may face greater challenges related to seasonal flooding or high water tables. Solar developers would need to implement appropriate engineering solutions, such as elevated mounting systems, to mitigate these risks. The most promising regions for large-scale solar PV would be the higher elevation portions of the Jianghan Plain that sit safely above flood levels, as well as the gentler south-facing slopes of the hill systems to the north. These areas combine favorable topography with reduced risk from water-related challenges, creating optimal conditions for sustainable solar energy production.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
