Jiayuguan City in China offers a relatively effective location for solar PV energy generation throughout the year. Situated in the Northern Temperate Zone, this site experiences considerable seasonal variations in solar energy production that are worth understanding for anyone considering solar installation.

Seasonal Solar Production

The solar energy potential at Jiayuguan City shows significant seasonal fluctuations. Summer stands out as the most productive season, generating approximately 6.79kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 6.03kWh/day, while autumn produces a moderate 4.58kWh/day. Winter, as expected, delivers the lowest output at 3.28kWh/day per installed kilowatt.

These figures reveal that Jiayuguan City experiences almost twice the solar production in summer compared to winter months. This pattern aligns with its northern temperate location, where the sun's path varies considerably throughout the year.

Optimal Panel Installation

For fixed solar panel installations at this location, the ideal tilt angle to maximize year-round energy production is 36 degrees facing South. This specific angle has been calculated to optimize annual solar capture based on Jiayuguan's latitude and seasonal solar patterns.

Environmental Challenges

Jiayuguan City faces several environmental factors that could potentially impact solar production:

• Dust and sand: Located near the edge of the Gobi Desert, the area experiences dust storms that can significantly reduce panel efficiency by creating a layer of particles that block sunlight.
• Temperature extremes: The continental climate brings very hot summers and cold winters, which can affect panel efficiency, particularly during summer when excessive heat can reduce performance.
• Occasional snowfall: Winter snow accumulation can temporarily block panels if not removed promptly.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended:

• Regular cleaning systems: Installing automated cleaning systems or implementing a regular maintenance schedule to remove dust and sand deposits.
• Elevated mounting: Positioning panels higher off the ground to reduce dust accumulation and facilitate snow shedding.
• Temperature-resistant panels: Selecting panels with good temperature coefficients that maintain efficiency during extreme temperature conditions.
• Anti-soiling coatings: Applying specialized coatings to panel surfaces that reduce dust adhesion and make natural cleaning by rainfall more effective.

With proper installation techniques and regular maintenance, Jiayuguan's considerable solar potential can be effectively harnessed, particularly during the highly productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

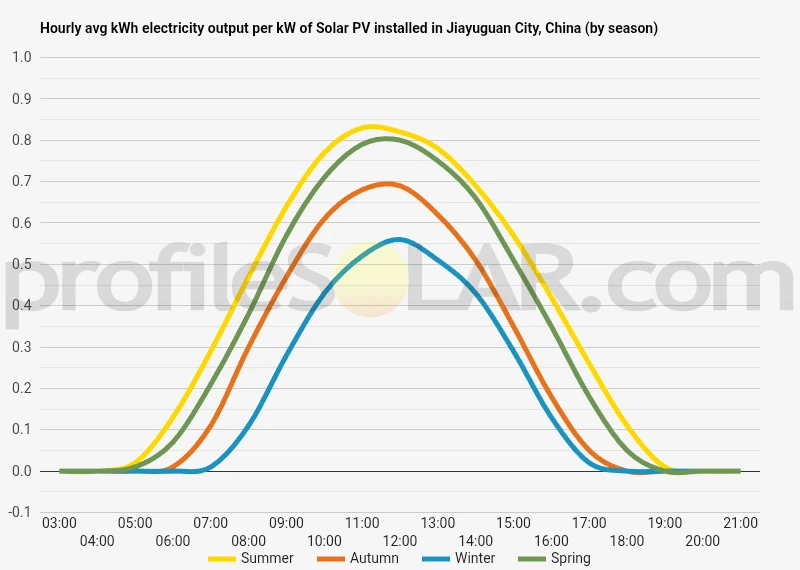

Solar output per kW of installed solar PV by season in Jiayuguan City

Seasonal solar PV output for Latitude: 39.8029, Longitude: 98.2769 (Jiayuguan City, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Jiayuguan City, China

To maximize your solar PV system's energy output in Jiayuguan City, China (Lat/Long 39.8029, 98.2769) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jiayuguan City, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jiayuguan City, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	55° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jiayuguan City, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jiayuguan City, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jiayuguan City, China

Jiayuguan City is situated in the Gansu Province of northwestern China, nestled in a significant geographical corridor between the Qilian Mountains and the vast expanse of the Gobi Desert. This unique positioning creates a striking topographical contrast that has shaped the region's historical and cultural significance as the western terminus of the Great Wall of China.

Surrounding Landscape

The terrain around Jiayuguan is characterized by a dramatic transition zone. To the south rise the majestic Qilian Mountains, forming a natural barrier with peaks reaching over 4,000 meters. These mountains create a rugged, elevated landscape with steep slopes and valleys. The northern and western horizons are dominated by the flat, arid expanses of the Gobi Desert, presenting a stark contrast to the mountainous south. The city itself sits in what is known as the Hexi Corridor, a relatively narrow passage of more level ground between these two imposing geographical features. This corridor has historically served as a crucial channel for the Silk Road trade routes, connecting China to Central Asia. The immediate vicinity of Jiayuguan experiences an arid continental climate with minimal precipitation. The land is predominantly desert steppe, featuring sparse vegetation adapted to the dry conditions. Small rivers and streams flowing from the Qilian Mountains provide limited water resources to the region before disappearing into the desert landscape.

Optimal Areas for Solar PV Development

The desert plains stretching north and northwest of Jiayuguan present ideal conditions for large-scale solar photovoltaic installations. These areas offer several advantageous characteristics: The flat, open terrain of the Gobi Desert provides extensive uninterrupted spaces that could accommodate large solar arrays without significant land modification. The natural topography minimizes shading issues that might otherwise reduce energy capture efficiency. The region experiences minimal cloud cover throughout the year, with clear skies dominating the weather patterns. This translates to consistent solar exposure, maximizing potential energy generation. The desert areas have limited competing land uses, with sparse vegetation and minimal agricultural activity due to the arid conditions. This reduces potential land-use conflicts that might arise in more densely populated or agriculturally productive regions. The relatively stable ground conditions of the desert plains also present fewer engineering challenges for foundation work compared to mountainous or unstable terrain. The firm desert soil provides good structural support for solar installation infrastructure. Several areas within approximately 30-50 kilometers north and northwest of the city center would be particularly suitable, where the terrain flattens completely into desert plains. These locations combine accessibility from the city's infrastructure with optimal topographical conditions. The elevated benchlands between the mountains and desert might also offer strategic positioning, potentially capturing both direct sunlight and reflected light from the surrounding landscape, though these would require more careful engineering considerations.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
