Langfang, Hebei, China, located at latitude 39.5208° and longitude 116.7147° in the Northern Temperate Zone, presents a moderately favorable location for solar PV energy generation throughout the year, with notable seasonal variations.

Seasonal Solar Energy Production

Solar energy production in Langfang follows a distinct seasonal pattern. Spring yields the highest output at 5.42 kWh per day for each kilowatt of installed capacity, closely followed by summer at 5.35 kWh/day. There's a significant drop during autumn (3.24 kWh/day) and winter (2.96 kWh/day), when production falls to nearly half the spring/summer levels.

These figures indicate that Langfang experiences excellent solar generation potential during approximately half the year, from March through August, with more limited but still viable production during the cooler months.

Optimal Panel Installation

For fixed solar panel installations in Langfang, Hebei, the ideal tilt angle to maximize year-round production is 35 degrees facing South. This angle optimizes the annual solar energy capture by balancing seasonal variations in the sun's position.

Environmental and Weather Challenges

Several significant environmental factors can impact solar production in Langfang:

• Air pollution and smog from nearby industrial areas and Beijing can reduce solar irradiance reaching panels, particularly during winter months when coal heating increases pollution levels
• Seasonal dust storms in spring, typical in Northern China, can deposit particulate matter on panels
• Winter snowfall, though moderate, can temporarily cover panels
• Summer monsoon season brings increased cloud cover and rainfall

Mitigation Strategies

To address these challenges and optimize solar production in Langfang, Hebei, several preventative measures can be implemented:

• Install automated cleaning systems or schedule regular manual cleaning to remove dust and pollution deposits
• Use anti-soiling coatings on panel surfaces to reduce dust adhesion and improve natural cleaning from rainfall
• Consider slightly steeper panel angles during winter (40-45°) to facilitate snow sliding off panels
• Implement microinverters or power optimizers to minimize production losses from partial shading due to pollution or snow
• Select high-efficiency panels that perform better in diffuse light conditions common during hazy days

With proper system design accounting for these local factors, Langfang can still achieve good solar energy production, particularly capitalizing on the excellent spring and summer conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

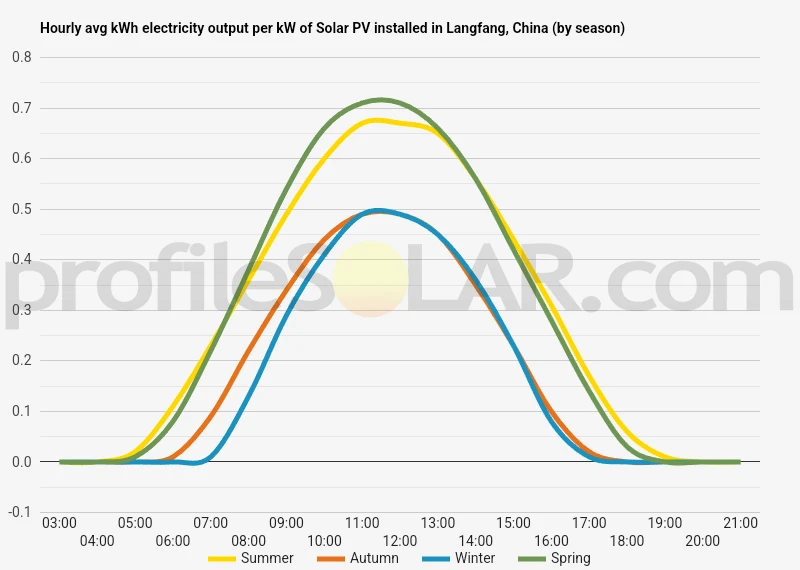

Solar output per kW of installed solar PV by season in Langfang

Seasonal solar PV output for Latitude: 39.5208, Longitude: 116.7147 (Langfang, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Langfang, China

To maximize your solar PV system's energy output in Langfang, China (Lat/Long 39.5208, 116.7147) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Langfang, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Langfang, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	55° South in Winter	31° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Langfang, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Langfang, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Langfang, China

The topography around Langfang, China presents a predominantly flat landscape characteristic of the North China Plain. Situated between Beijing and Tianjin, Langfang occupies a strategic position in the Hebei Province within a vast alluvial plain formed by sediment deposits from rivers flowing from the western mountains. The elevation across the region is relatively uniform, averaging approximately 20-30 meters above sea level, with minimal variation in the immediate vicinity. This flatness extends in most directions from the city center, creating an expansive plain that stretches for many kilometers. The terrain features few natural barriers or significant elevation changes, which has historically facilitated agricultural development and, more recently, industrial expansion and urbanization. The soil composition is primarily alluvial, consisting of silt and clay deposits accumulated over centuries from the nearby river systems.

Hydrological Features

The area's hydrology is influenced by several waterways, including branches of the Hai River system. These rivers have shaped the landscape over time, contributing to the flat topography and fertile soil conditions. Some shallow depressions and former riverbed features can be found throughout the region, though these represent relatively minor variations in the otherwise level terrain. Water bodies in the area include artificial reservoirs and irrigation channels that support the agricultural activities prevalent in the rural areas surrounding Langfang. These water management systems have further modified the natural landscape, creating a mosaic of agricultural plots across the plain.

Solar PV Suitability

The flat topography around Langfang presents several advantages for large-scale solar photovoltaic (PV) installations. The areas to the south and southeast of Langfang offer particularly favorable conditions for solar development due to several factors: The rural areas extending southward toward Cangzhou feature extensive agricultural land with minimal shading obstacles. These locations benefit from the consistently flat terrain that minimizes installation complexities and reduces construction costs. The absence of significant elevation changes means uniform solar exposure across large installations. The southwestern regions, while still maintaining the characteristic flatness, provide substantial undeveloped land parcels that could accommodate large-scale solar arrays without major land use conflicts. These areas also benefit from proximity to existing electrical infrastructure, which could reduce interconnection costs. Eastern sectors toward Tianjin's outskirts combine favorable topography with strategic proximity to major energy consumption centers. The flat terrain in these areas would require minimal grading for solar installation, preserving the natural drainage patterns of the land.

Topographical Considerations for Solar Development

When evaluating specific sites for solar PV development around Langfang, several topographical factors deserve consideration. The uniform elevation minimizes concerns about uneven shading that might otherwise reduce system efficiency. The flat terrain also simplifies construction logistics and reduces the need for extensive earthworks during installation. Drainage considerations remain important despite the flat landscape. During the summer monsoon season, some low-lying areas may experience temporary ponding or waterlogging. Solar developments would benefit from selecting slightly elevated sections of the plain or implementing appropriate drainage systems to protect equipment. Wind exposure is another relevant factor in this open landscape. Without significant natural windbreaks, solar installations would need robust mounting systems designed to withstand occasional strong winds that sweep across the plain, particularly during seasonal transitions. The agricultural nature of much of the surrounding land presents both challenges and opportunities. While conversion of productive farmland may face regulatory hurdles, there are also possibilities for dual-use systems that allow continued agricultural activities beneath or between solar arrays, particularly in the less intensively farmed areas to the south and southwest.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
