Qinhuangdao, Hebei, located in China's Northern Temperate Zone, presents a moderately favorable location for year-round solar photovoltaic energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The location demonstrates strong solar production during the warmer months, with summer delivering the highest output at 5.56 kWh per day per kW of installed capacity. Spring follows closely behind at 5.45 kWh per day, making these two seasons the ideal times for solar energy generation at this location. However, the colder months present notably reduced performance, with autumn dropping to 3.37 kWh per day and winter reaching the lowest point at just 2.87 kWh per day per kW installed. This seasonal variation means that while Qinhuangdao can be productive for solar energy, system owners should expect approximately half the energy output during winter months compared to peak summer performance. The location's annual average would be reasonable for solar investment, but the winter months will require supplementary energy sources or battery storage for consistent power needs.

Optimal Panel Installation

For maximum year-round energy production at Qinhuangdao, Hebei, solar panels should be installed at a fixed tilt angle of 36 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Environmental and Weather Challenges

Several local factors in Qinhuangdao can significantly impact solar panel performance and require careful consideration during installation:

• Dust and Sand Storms: Being located in northern China near desert regions, Qinhuangdao experiences periodic dust storms that can coat solar panels and dramatically reduce their efficiency
• Heavy Snow and Ice: Winter conditions can lead to snow accumulation and ice formation on panels, blocking sunlight and potentially damaging equipment
• Air Pollution: Industrial activity in the region can create haze and particulate matter that reduces solar irradiance reaching the panels
• Coastal Salt Air: Qinhuangdao's proximity to the Bohai Sea means salt-laden air can cause corrosion of metal components over time

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented. Regular cleaning systems or easy access for manual cleaning can address dust and pollution buildup effectively. Installing panels with anti-reflective coatings and hydrophobic surfaces helps minimize dirt accumulation and makes cleaning more efficient. For winter weather protection, panels should be installed at the optimal 36-degree angle, which naturally helps snow slide off more easily. Additionally, heating elements or snow removal systems can be integrated for areas with heavy snowfall. Choosing panels and mounting systems with marine-grade corrosion resistance will help combat the effects of coastal salt air. Proper spacing between panel rows ensures adequate airflow for cooling and reduces shadowing effects from accumulated debris. Installing monitoring systems allows for quick identification of performance drops due to environmental factors, enabling prompt maintenance responses. While Qinhuangdao faces some environmental challenges for solar installation, these can be effectively managed through proper system design and regular maintenance, making it a viable location for solar energy generation with appropriate planning and investment in protective measures.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

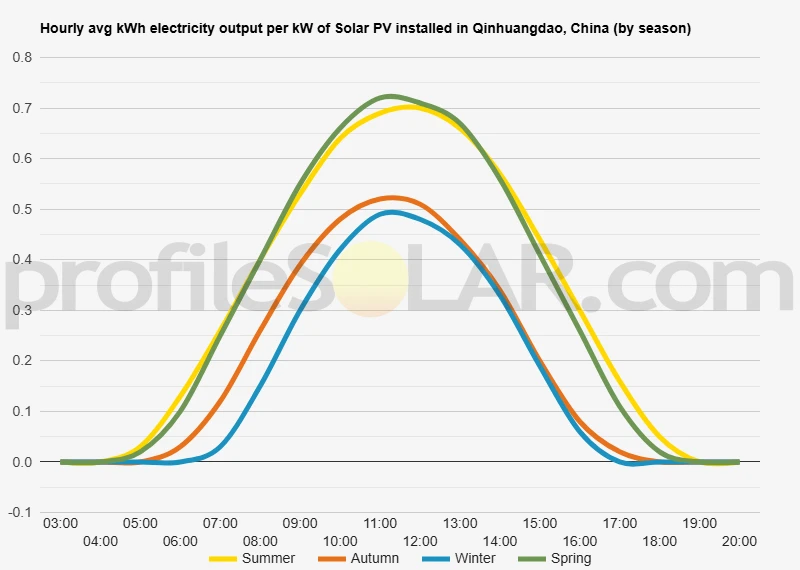

Solar output per kW of installed solar PV by season in Qinhuangdao

Seasonal solar PV output for Latitude: 39.9357, Longitude: 119.5884 (Qinhuangdao, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Qinhuangdao, China

To maximize your solar PV system's energy output in Qinhuangdao, China (Lat/Long 39.9357, 119.5884) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Qinhuangdao, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Qinhuangdao, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	55° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Qinhuangdao, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Qinhuangdao, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Qinhuangdao, China

Topographical Features of Qinhuangdao

Qinhuangdao sits in a geographically diverse region of northeastern China where the Yanshan Mountains meet the Bohai Sea. The city is positioned along the coastal plain of Hebei Province, creating a landscape that transitions from flat coastal areas to rolling hills and mountainous terrain as one moves inland. The immediate coastline features sandy beaches and relatively flat terrain, while the western and northern areas gradually rise into the foothills of the Yanshan mountain range.

The Bohai Sea forms the southern boundary of the region, providing a maritime influence on the local climate and geography. Moving northward from the coast, the elevation increases progressively, with the terrain becoming more undulating and eventually mountainous. The area includes several river valleys and coastal plains that create pockets of flatter land interspersed with hillier sections.

The regional topography is characterized by a mix of coastal lowlands, agricultural plains, and forested hills. The elevation changes are generally gradual rather than steep, creating a landscape of gentle slopes and rolling terrain in many areas. This varied topography includes both developed urban areas near the coast and more rural, less developed regions further inland.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found in the flatter coastal plains and agricultural areas surrounding Qinhuangdao. These regions offer the dual advantages of relatively level terrain and lower land costs compared to prime urban real estate. The coastal plains extending both east and west of the city center provide expansive areas with minimal slope variations, making them ideal for large solar arrays that require consistent panel orientation.

Areas slightly inland from the immediate coastline would be particularly well-suited for solar development. These locations benefit from stable ground conditions while avoiding the potential complications of salt air corrosion that can affect equipment directly on the coast. The agricultural plains in these areas often feature large, unobstructed parcels of land that could accommodate utility-scale solar installations without significant grading or terrain modification.

The gently rolling hills in the western portions of the region could also support solar development, particularly on south-facing slopes that would naturally optimize panel positioning. However, the flatter coastal and near-coastal areas would likely prove more economical for large-scale development due to reduced installation complexity and lower infrastructure costs.

Industrial zones and less densely populated areas around the city periphery represent additional opportunities for solar development. These locations often have existing electrical infrastructure and road access, which reduces the overall project development costs while providing suitable terrain for large-scale installations.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
