Solar Energy Potential in Qinzhou, Guangxi, China

Qinzhou, Guangxi, China, located at latitude 21.9864° North and longitude 108.6499° East in the tropics, offers considerable potential for solar energy generation throughout the year. This tropical location provides relatively consistent sunlight patterns compared to regions at higher latitudes, with variations primarily influenced by wet and dry seasons rather than dramatic changes in daylight hours. The solar electricity production in Qinzhou demonstrates seasonal variations. During summer, solar panels can generate an impressive 5.63 kWh per day for each kilowatt of installed capacity, representing the peak production period. Autumn yields 4.56 kWh/day, while winter shows the lowest output at 3.79 kWh/day. Spring performance recovers to 4.33 kWh/day per kilowatt installed.

Optimal Panel Installation

For fixed solar panel installations in Qinzhou, Guangxi, the ideal tilt angle is 19 degrees facing South. This specific angle maximizes year-round solar energy production by optimizing the panels' exposure to the sun's path throughout the year. This calculation accounts for the Earth's elliptical orbit and the specific solar conditions at Qinzhou's latitude.

Environmental Challenges and Solutions

Several environmental factors could potentially impact solar energy production in Qinzhou:

• Typhoons and strong storms: The coastal location makes Qinzhou vulnerable to typhoons during summer and early autumn. These weather events can physically damage panels and mounting systems.
• High humidity and rainfall: The tropical climate brings significant rainfall, particularly during the wet season, which can temporarily reduce solar efficiency.
• Salt corrosion: Proximity to the Gulf of Tonkin means salt-laden air can accelerate corrosion of solar equipment and electrical connections.
• Dust and pollution: Industrial activities in the region may contribute to air pollution and dust accumulation on panels.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures should be considered: Installing storm-resistant mounting systems with reinforced foundations can help withstand typhoon-force winds. Using marine-grade materials and proper sealants will protect against salt corrosion and humidity damage. Regular cleaning systems, either automated or through maintenance schedules, can address dust accumulation problems. Additionally, installing micro-inverters or power optimizers rather than string inverters can minimize production losses during partial shading from cloud cover during the rainy season. Finally, implementing a slight increase in the tilt angle beyond the optimal 19 degrees might help with natural cleaning during rainfall, though this would come with a small trade-off in overall production efficiency.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

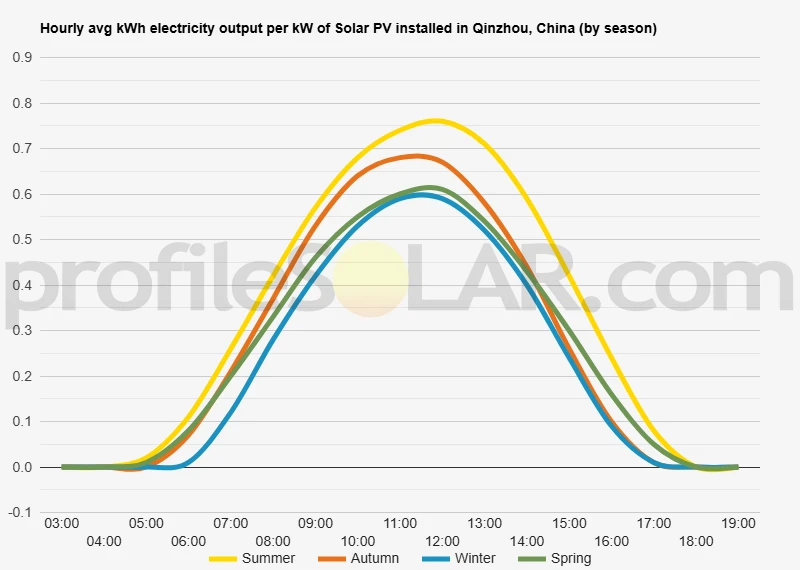

Solar output per kW of installed solar PV by season in Qinzhou

Seasonal solar PV output for Latitude: 21.9864, Longitude: 108.6499 (Qinzhou, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in Qinzhou, China

To maximize your solar PV system's energy output in Qinzhou, China (Lat/Long 21.9864, 108.6499) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Qinzhou, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Qinzhou, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	27° South in Autumn	37° South in Winter	14° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Qinzhou, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Qinzhou, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Qinzhou, China

The topography surrounding Qinzhou, China presents a diverse landscape characterized by a mixture of coastal plains, rolling hills, and mountainous terrain. Located in the southern part of Guangxi Zhuang Autonomous Region facing the Gulf of Tonkin, Qinzhou sits at the transition zone between the coastal lowlands and the more elevated interior regions.

Coastal Features

The immediate coastal areas of Qinzhou consist of relatively flat alluvial plains with numerous bays, inlets, and estuaries. These lowland areas gradually rise inland, creating a gentle topographic gradient. The coastline itself is quite irregular, featuring several natural harbors and small peninsulas. Mangrove forests and tidal flats are common natural features along this coastal zone, which has an elevation typically less than 50 meters above sea level.

Interior Landscape

Moving inland from the coast, the terrain becomes progressively more undulating with low rolling hills dominating the landscape. These hills generally range from 100 to 300 meters in elevation and are often covered with subtropical vegetation. The soil in these areas tends to be lateritic, reflecting the region's warm, humid climate. Further inland to the north and northwest of Qinzhou, the landscape transitions into more pronounced hills and eventually into mountainous terrain that forms part of the larger Nanling mountain system. These mountains, while not extremely high by Chinese standards, reach elevations of 500 to 1,000 meters in the broader region.

Hydrological Features

The area is well-watered, with several rivers flowing through the region including the Qinjiang River and its tributaries. These waterways have carved valleys through the hilly terrain, creating natural corridors that historically facilitated transportation and settlement. The river systems eventually empty into the Beibu Gulf (Gulf of Tonkin), forming deltas and estuaries near the coast.

Potential Solar PV Development Areas

For large-scale solar photovoltaic (PV) installations, several areas around Qinzhou present favorable conditions: The gently sloping hillsides to the north and northwest of the urban center offer promising locations for solar farms. These areas benefit from reduced flooding risk compared to the lowlands while still maintaining reasonable accessibility. The southern-facing slopes in particular would receive optimal sun exposure throughout the year. The coastal plains, while valuable for agriculture and urban development, do contain some less productive land parcels that could be repurposed for solar installations. These areas have the advantage of being relatively flat, requiring minimal site preparation, and being close to existing transmission infrastructure and population centers. Some of the more elevated plateau areas in the northern reaches of Qinzhou territory also present opportunities for solar development. These locations often have less competing land use pressure and can offer excellent exposure to sunlight with minimal shadowing from surrounding terrain features. Areas to avoid would include the prime agricultural lands in the river valleys, ecologically sensitive mangrove zones along the coast, and the steeper mountainous terrain where installation would be technically challenging and environmentally disruptive. The region's subtropical monsoon climate does present challenges for solar energy development in the form of seasonal cloud cover and occasional typhoons, but these factors can be mitigated through proper engineering and site selection focusing on areas with optimal topographic exposure.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
