Solar Energy Potential in Shaoyang, Hunan, China

Shaoyang, Hunan, located in the Northern Sub Tropics of China, offers varying potential for solar energy generation throughout the year. This location experiences significant seasonal fluctuations in solar electricity production that prospective solar panel owners should consider. The summer months provide the most abundant solar energy, with each kilowatt of installed solar capacity generating approximately 5.41 kWh per day. This makes summer the prime season for solar energy production in Shaoyang. Autumn sees a moderate decrease in production to 3.80 kWh per day per kilowatt installed. This still represents reasonable energy generation potential, though noticeably less than summer levels. Winter brings the lowest solar productivity at this location, with daily generation dropping to just 2.59 kWh per kilowatt installed. This significant seasonal drop means winter production is less than half of summer capacity. Spring shows a slight improvement over winter conditions, with daily generation at 2.84 kWh per kilowatt installed, but still remains well below summer and autumn production levels.

Optimal Installation Considerations

For maximum year-round solar energy production in Shaoyang, Hunan, fixed solar panels should be installed at a 24-degree tilt facing South. This carefully calculated angle optimizes the annual solar harvest by accounting for the location's specific latitude and seasonal solar patterns.

Environmental and Weather Challenges

Several significant factors may impede solar production in Shaoyang:

• Seasonal monsoon rains, particularly during late spring and summer, can reduce solar efficiency despite this being the period with highest potential output
• Air pollution from nearby industrial activities may create haze that diminishes solar irradiance reaching panels
• Occasional typhoons in late summer and autumn pose risks of physical damage to installations

To mitigate these challenges, solar installations in Shaoyang should incorporate:

• Robust mounting systems designed to withstand typhoon-force winds
• Regular cleaning protocols to remove pollution deposits and maximize panel efficiency
• Weather-resistant panel technologies with high humidity tolerance
• Consider micro-inverter or power optimizer systems that minimize production losses when some panels are shaded or dirty

With proper planning and preventative measures, solar energy remains viable in Shaoyang despite these challenges, particularly during the highly productive summer months.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

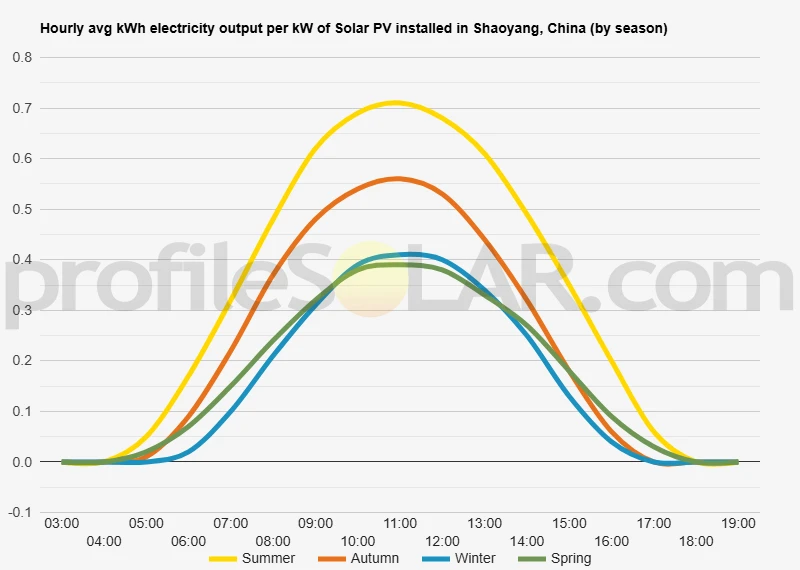

Solar output per kW of installed solar PV by season in Shaoyang

Seasonal solar PV output for Latitude: 27.2416, Longitude: 111.4656 (Shaoyang, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° South in Shaoyang, China

To maximize your solar PV system's energy output in Shaoyang, China (Lat/Long 27.2416, 111.4656) throughout the year, you should tilt your panels at an angle of 24° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Shaoyang, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Shaoyang, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° South in Summer	31° South in Autumn	43° South in Winter	20° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Shaoyang, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Shaoyang, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Shaoyang, China

The topography surrounding Shaoyang, situated in the province of Hunan in south-central China, presents a diverse landscape characterized primarily by hilly terrain and river valleys. The city lies within the transitional zone between the Xuefeng Mountains to the west and the Nanling Mountains to the south, creating a topographical basin surrounded by elevated terrain. The elevation in the Shaoyang area typically ranges from approximately 200 to 800 meters above sea level, with some surrounding peaks reaching higher elevations. The Zi River, a tributary of the Yangtze River system, flows through the region, carving valleys and creating alluvial plains that interrupt the otherwise predominantly hilly landscape. This river network has historically shaped both the physical geography and human settlement patterns in the area, with most population centers concentrated along these waterways and in the flatter basin areas.

Surrounding Mountain Ranges

The western portions of the Shaoyang region feature more pronounced relief as they transition into the Xuefeng Mountain range, with steeper slopes and higher elevations. These mountains form part of the larger Wuling Mountain system, creating a natural boundary between Hunan and its neighboring provinces. The eastern and northern sections generally display more moderate hills and broader valleys. The overall topography can be described as a basin-and-range landscape, where relatively flat valley bottoms are interspersed between parallel ridges of hills and mountains. This creates a corrugated effect across the landscape when viewed from above.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, the most suitable areas near Shaoyang would be the south-facing slopes of the numerous hills and the broader valley floors that receive minimal shadowing from surrounding terrain. The gently sloping hillsides to the south and southeast of the city present particularly favorable conditions, as they combine good solar exposure with land that may be less suitable for intensive agriculture. The elevated plateaus found in the region, particularly those to the northeast of Shaoyang proper, offer another promising option for solar development. These areas typically experience less fog than the river valleys and have relatively consistent elevation, which simplifies construction and maintenance of large-scale installations. Areas to avoid would include the steeper western mountain slopes, where construction challenges and potential environmental impacts would be significant, as well as the prime agricultural lands along the river valleys, which serve important food production functions. The moderately elevated areas between 300-500 meters above sea level that feature gentle slopes (less than 15 degrees) represent the optimal balance of solar exposure, construction feasibility, and minimal conflict with other land uses. Several such areas can be found within a 30-50 kilometer radius of Shaoyang city center, particularly in the eastern and southern directions.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
