Xiaogan, Hubei, China, located in the Northern Sub Tropics at coordinates 30.9269, 113.9222, offers a reasonably good location for solar PV energy generation throughout the year, though with significant seasonal variations.

Solar energy production at this location shows clear seasonal patterns. Summer is the most productive season with an average of 5.11kWh per day for each kilowatt of installed capacity. Autumn follows with 4.13kWh/day, while spring generates 3.66kWh/day. Winter shows the lowest production at 2.92kWh/day per kW installed.

For anyone installing fixed solar panels in Xiaogan, Hubei, the ideal tilt angle to maximize year-round energy production is 28 degrees facing South. This angle has been calculated based on the site's latitude and weighted by the daily PV potential, accounting for Earth's elliptical orbit.

Environmental and Weather Factors

Several significant factors could impact solar production at this location. Xiaogan, Hubei, like much of central China, experiences monsoon-influenced weather patterns that bring substantial precipitation, particularly during summer months. This region also faces air pollution challenges that can reduce solar irradiance reaching panels.

Additionally, the area may experience occasional typhoons and severe storms that could physically damage installations if not properly secured. Seasonal temperature variations are substantial, with hot summers that can reduce panel efficiency and cold winters that may include occasional snow cover.

Preventative Measures

To maximize solar production in Xiaogan despite these challenges, consider these preventative measures:

• Install panels with robust mounting systems designed to withstand strong winds from seasonal storms
• Use self-cleaning panel technologies or implement regular cleaning schedules to address dust and pollution buildup
• Select panels with good high-temperature performance ratings to maintain efficiency during hot summers
• Consider snow-shedding panel arrangements for winter months
• Implement micro-inverters or power optimizers to minimize the impact of partial shading from cloud cover

With proper installation accounting for these factors, Xiaogan can provide reliable solar energy production, particularly from spring through autumn when output is strongest.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

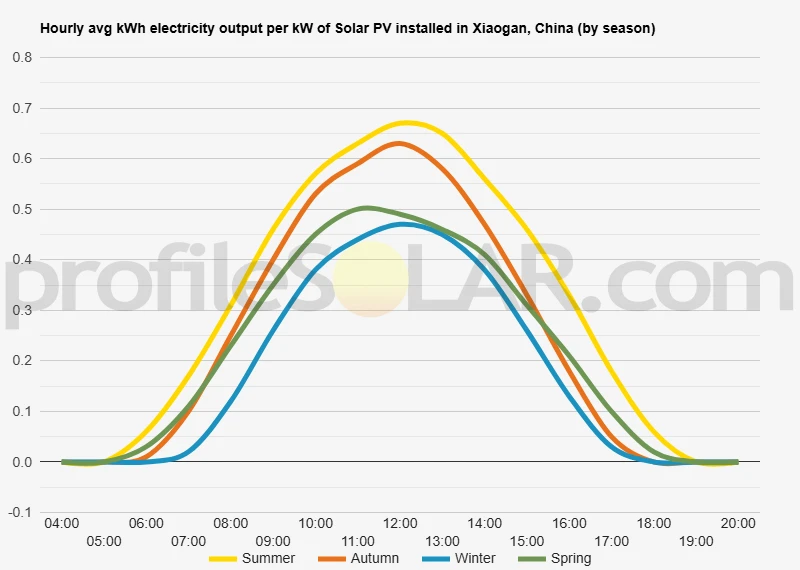

Solar output per kW of installed solar PV by season in Xiaogan

Seasonal solar PV output for Latitude: 30.9269, Longitude: 113.9222 (Xiaogan, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Xiaogan, China

To maximize your solar PV system's energy output in Xiaogan, China (Lat/Long 30.9269, 113.9222) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Xiaogan, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Xiaogan, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° South in Summer	35° South in Autumn	46° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Xiaogan, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Xiaogan, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Xiaogan, China

Xiaogan, situated in Hubei Province of central China, presents a varied topographical landscape that influences its suitability for solar energy development. The terrain around Xiaogan (30.9269°N, 113.9222°E) consists primarily of gently rolling hills transitioning to plains, particularly as one moves eastward toward the Yangtze River basin.

Topographical Features

The western portions of the Xiaogan region feature more pronounced hills and elevated terrain, with some areas reaching moderate heights. These western highlands gradually give way to the eastern plains that characterize much of the region's landscape. The area sits within the Middle-Lower Yangtze Plain, one of China's major agricultural regions, with elevations generally ranging from 20 to 100 meters above sea level across most of the municipality. The region is interspersed with numerous water bodies, including rivers, streams, and lakes that are part of the broader Yangtze River watershed. These water features have shaped the landscape over millennia, creating fertile valleys and flat floodplains throughout the region.

Solar PV Suitability

For large-scale solar photovoltaic development, the eastern plains of Xiaogan offer the most promising terrain. These areas combine several advantageous characteristics: The relatively flat topography minimizes the costs associated with land preparation and construction. This flatness also reduces shading issues that might otherwise compromise solar panel efficiency in more varied terrain. Agricultural plains that are less productive or areas of previously disturbed land would be particularly suitable for solar development, creating opportunities for dual land use through agrivoltaic systems where appropriate. The southern portions of Xiaogan municipality generally receive more direct solar radiation compared to the northern areas, making them marginally more productive for solar energy generation. Areas to avoid include the western hills where installation would be more challenging and costly, as well as any locations near water bodies that might be subject to seasonal flooding or have particular ecological significance. Land adjacent to existing electrical infrastructure would offer additional advantages, reducing transmission costs and losses. The eastern regions of Xiaogan, with better developed infrastructure networks connecting to major population centers like Wuhan (approximately 60 kilometers to the southeast), present logistical advantages for large-scale solar deployment. The region experiences a subtropical monsoon climate with distinct seasons, which must be factored into solar installation designs to withstand seasonal weather patterns including summer monsoon rains and occasional winter frost.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
