Xiaohekou, Yunnan, China, located in the Northern Sub Tropics, offers a promising location for solar PV energy generation throughout the year. With its geographical coordinates at 24.576 latitude and 102.5491 longitude, this area experiences varying levels of solar potential across different seasons.

Seasonal Solar Performance

The solar energy output in Xiaohekou fluctuates across the four meteorological seasons. Spring stands out as the most productive period, with an impressive 6.44 kWh per day for each kilowatt of installed solar capacity. Summer follows with a respectable 5.14 kWh/day, while both autumn and winter maintain a steady output of 4.15 kWh/day.

This seasonal pattern indicates that Xiaohekou is particularly well-suited for solar energy production during the spring months. The extended daylight hours and favorable sun angles during this time contribute to the heightened energy output. Summer also proves to be a strong season for solar generation, benefiting from long, sunny days.

Year-Round Potential

Despite the seasonal variations, Xiaohekou demonstrates consistent solar potential throughout the year. Even during the less productive autumn and winter months, the energy output remains substantial. This year-round reliability makes the location ideal for continuous solar power generation, reducing the need for alternative energy sources during off-peak seasons.

Optimal Panel Installation

To maximize the total year-round production from solar PV in Xiaohekou, Yunnan, fixed panels should be installed at a tilt angle of 22 degrees facing South. This optimal angle has been calculated taking into account the location's latitude, the Earth's elliptical orbit, and daily solar elevation angles, ensuring the panels capture the maximum amount of sunlight throughout the year.

Environmental Considerations

While Xiaohekou generally presents favorable conditions for solar energy production, there are some environmental factors to consider. The region's subtropical climate may bring periods of increased cloud cover and rainfall, particularly during the monsoon season. These weather patterns could temporarily reduce solar panel efficiency.

To mitigate these effects, installers should consider using high-efficiency panels that perform well in diffuse light conditions. Additionally, implementing a robust cleaning and maintenance schedule can help combat any potential buildup of dust or debris that may accumulate during dry periods, ensuring optimal panel performance year-round.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

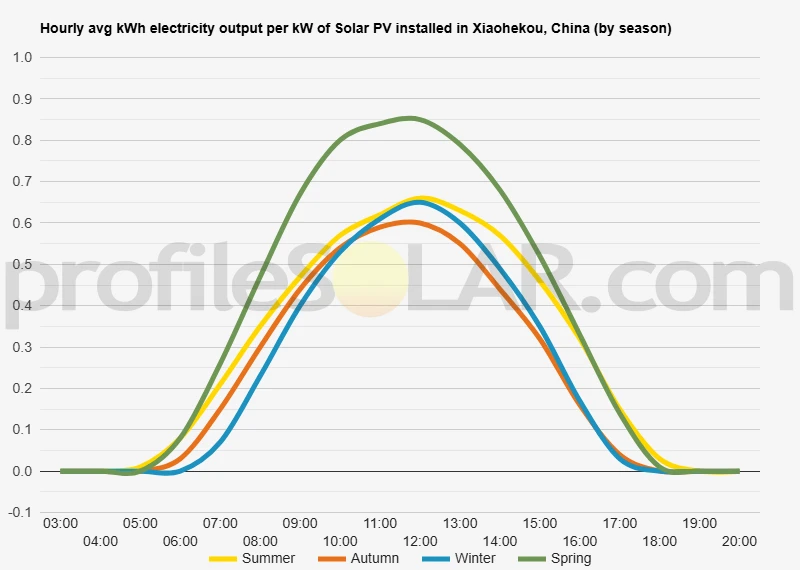

Solar output per kW of installed solar PV by season in Xiaohekou

Seasonal solar PV output for Latitude: 24.576, Longitude: 102.5491 (Xiaohekou, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° South in Xiaohekou, China

To maximize your solar PV system's energy output in Xiaohekou, China (Lat/Long 24.576, 102.5491) throughout the year, you should tilt your panels at an angle of 22° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Xiaohekou, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Xiaohekou, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	29° South in Autumn	40° South in Winter	18° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Xiaohekou, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Xiaohekou, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Xiaohekou, China

The area surrounding Xiaohekou, China, located at approximately 24.576 degrees north latitude and 102.5491 degrees east longitude, is characterized by a diverse and rugged topography. This region is part of Yunnan Province, known for its varied landscape that includes mountains, valleys, and plateaus. The terrain around Xiaohekou is predominantly hilly and mountainous, with significant elevation changes throughout the area. The landscape is marked by steep slopes, deep valleys, and narrow ridges, creating a complex topographical pattern. These features are part of the larger Yunnan-Guizhou Plateau, which extends across much of southwestern China. Interspersed among the hills and mountains are small valleys and basins, where flat or gently sloping land can be found. These areas often contain agricultural fields and small settlements. Rivers and streams cut through the landscape, further contributing to the varied topography and creating picturesque gorges in some locations.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors must be taken into account. The ideal locations for solar PV projects typically require relatively flat terrain, good sun exposure, and minimal shading from surrounding features. In the vicinity of Xiaohekou, the most suitable areas for large-scale solar PV would likely be found in the broader, flatter valleys or on the gentler slopes of hills. These locations would offer more space for panel arrays and easier access for construction and maintenance. South-facing slopes could be particularly advantageous, as they would receive more direct sunlight throughout the day. However, it's important to note that the mountainous nature of the region may limit the availability of large, contiguous areas suitable for extensive solar farms. Smaller-scale installations or distributed solar projects might be more feasible in this type of terrain. Additionally, any potential solar PV sites would need to be evaluated for their proximity to existing power infrastructure, roads for access, and their impact on local ecosystems and land use. The complex topography of the area means that careful site selection and planning would be crucial for successful large-scale solar PV implementation in this region.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
