Xinjiang, Shanxi, located in northwestern China in the Northern Temperate Zone, offers varying potential for solar power generation throughout the year. The region experiences distinct seasonal differences in solar energy production, with the highest output occurring during summer months.

Seasonal Solar Production

Solar panels in this location produce significantly more electricity during warmer months. In summer, each kilowatt of installed solar capacity generates approximately 5.70 kWh per day, making it the most productive season. Spring follows closely with 5.39 kWh daily production per kilowatt installed.

Energy generation decreases considerably during colder months. Autumn yields about 3.43 kWh per day, while winter produces the least at 3.28 kWh daily per kilowatt of installed capacity. This creates a notable seasonal disparity, with summer producing nearly 74% more energy than winter.

Optimal Panel Installation

For fixed solar panel installations in this Xinjiang location, the ideal tilt angle is 32 degrees facing South. This specific angle maximizes year-round solar energy production by optimizing the capture of available sunlight across all seasons.

Environmental Challenges

Several environmental factors could potentially impact solar production at this location:

• Dust storms are common in Xinjiang, Shanxi, particularly during spring. Accumulated dust can reduce panel efficiency by up to 40% if not regularly cleaned.
• Extreme temperature variations between seasons may affect panel performance, as photovoltaic efficiency typically decreases when panels overheat.
• Possible snowfall in winter might temporarily cover panels, though the region's generally arid climate limits this concern.

Recommended Mitigation Measures

To maximize solar energy production in this environment, several preventative measures are advisable. Installing automated cleaning systems or implementing regular maintenance schedules can address dust accumulation. Using bifacial panels can help capture reflected light from the ground, increasing overall efficiency.

Temperature-related efficiency losses can be mitigated by ensuring adequate airflow beneath panels and selecting high-temperature-rated equipment. For winter conditions, installing panels at the recommended 32-degree tilt helps shed snow naturally in most cases.

Overall, while Xinjiang offers excellent solar potential, particularly in summer and spring, addressing these environmental factors through proper system design and maintenance is essential for optimal year-round performance.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

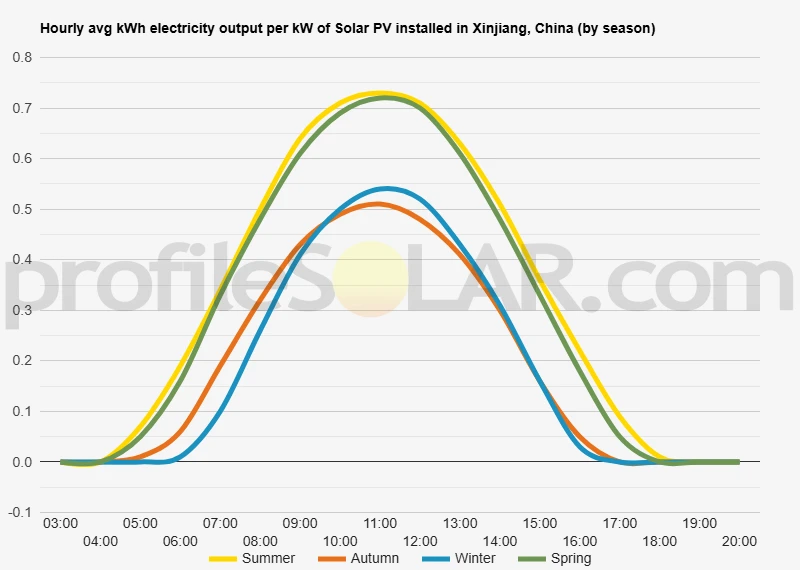

Solar output per kW of installed solar PV by season in Xinjiang

Seasonal solar PV output for Latitude: 35.6159, Longitude: 111.225 (Xinjiang, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Xinjiang, China

To maximize your solar PV system's energy output in Xinjiang, China (Lat/Long 35.6159, 111.225) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Xinjiang, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Xinjiang, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
19° South in Summer	41° South in Autumn	51° South in Winter	28° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Xinjiang, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Xinjiang, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Xinjiang, China

The topography around Xinjiang, China is characterized by dramatic contrasts and extreme landscapes. This vast autonomous region in northwestern China is bordered by multiple mountain ranges that effectively create a basin-like structure. The Tianshan Mountains, often called the "Heavenly Mountains," cut through the center of Xinjiang, effectively dividing it into two distinct basins: the Junggar Basin in the north and the Tarim Basin in the south. The Tarim Basin contains the formidable Taklamakan Desert, the world's second-largest shifting sand desert, while the Altai Mountains form the northern border with Mongolia and Russia. To the southwest, the Kunlun Mountains and the Pamir Plateau create natural boundaries with Tibet and Central Asian countries.

Major Topographical Features

The Tianshan Mountain range is particularly significant, with peaks reaching over 7,000 meters above sea level. These mountains capture moisture from westerly winds, creating a stark contrast between their relatively lush slopes and the arid basins below. The mountains contain numerous glaciers that feed important river systems supporting oasis settlements throughout the region. The Taklamakan Desert dominates the southern Tarim Basin with its vast expanse of sand dunes, some reaching heights of 100-300 meters. This harsh environment has historically limited human settlement to the edges of the basin where rivers emerging from the surrounding mountains create fertile oases. The Junggar Basin in the north, while still arid, experiences a slightly more moderate climate than the Tarim Basin. It features grasslands, semi-desert landscapes, and the unique geological depression of Turpan, which at 154 meters below sea level is one of the lowest points in China and experiences extreme heat.

Potential for Solar PV Development

The desert regions of Xinjiang offer exceptional potential for large-scale solar photovoltaic development due to several favorable factors. The Taklamakan Desert and the surrounding basin areas receive abundant solar radiation throughout the year with minimal cloud cover. The flat terrain of these desert basins provides ideal conditions for the installation of extensive solar arrays with minimal need for land preparation. The Turpan Depression, with its extremely low precipitation and abundant sunshine, represents one of the most promising areas for solar development. Its location below sea level creates a natural heat trap that could enhance solar efficiency, though extreme summer temperatures might necessitate specialized cooling systems for optimal performance. Areas around the edges of the Tarim Basin, particularly the northern and eastern margins where some basic infrastructure already exists due to oasis settlements, offer practical advantages for solar development. These locations balance the excellent solar resources of the desert interior with greater accessibility to transportation networks and potential grid connections. The relatively flat expanses of the Junggar Basin also present significant opportunities, particularly in its central and western portions. These areas combine favorable solar conditions with somewhat less extreme environments than the Taklamakan, potentially reducing maintenance challenges. It's worth noting that while the mountainous regions receive less consistent solar radiation due to terrain shadowing and increased cloud cover, the high-altitude plateaus between mountain ranges can also offer good solar potential with cooler operating temperatures that may benefit photovoltaic efficiency. The vast uninhabited areas of these basins provide opportunities for development with minimal displacement of human populations or agricultural activities. However, the remoteness of many optimal solar locations presents challenges for grid connection and transmission infrastructure, which would need significant investment to fully utilize Xinjiang's solar potential.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
