Xinxiang, Henan, China, located in the Northern Temperate Zone at coordinates 35.1874, 113.8025, offers a moderately favorable location for solar PV energy generation throughout the year, with seasonal variations in energy production.

Seasonal Solar Production

Solar panels in Xinxiang demonstrate distinct seasonal performance patterns. Summer and spring are equally productive periods, both generating an impressive 5.19 kWh per day for each kilowatt of installed capacity. In contrast, autumn yields 3.34 kWh/day while winter produces the lowest output at 3.11 kWh/day per kilowatt installed.

This seasonal pattern creates a favorable situation where half the year (spring and summer combined) offers excellent solar generation potential, while the other half (autumn and winter) provides moderate but still useful energy production.

Optimal Panel Installation

For fixed solar panel installations in Xinxiang, Henan, the ideal tilt angle to maximize year-round energy production is 31 degrees facing South. This specific angle has been calculated to optimize solar capture throughout the changing seasons, accounting for the Earth's elliptical orbit and Xinxiang's position in the Northern Hemisphere.

Environmental Considerations

Several environmental factors in Xinxiang could potentially impact solar energy production:

• Air pollution from industrial activities and coal burning in northern China can significantly reduce solar irradiance reaching panels, potentially decreasing efficiency by 10-25% on heavily polluted days.
• Seasonal dust storms from the Gobi Desert, particularly in spring, can coat panels with fine particulate matter.
• Winter snow accumulation may temporarily cover panels, though the recommended 31-degree tilt helps with natural snow shedding.

Preventative Measures

To mitigate these environmental challenges, several practical measures can be implemented:

• Installing automated cleaning systems or establishing regular manual cleaning schedules, particularly after dust storms
• Using anti-soiling coatings on panel surfaces to reduce dust adhesion and improve rain-washing effects
• Incorporating slightly higher tilt angles in areas prone to heavy snow to improve self-clearing capabilities
• Considering microinverters or power optimizers to minimize system-wide production losses when some panels are partially shaded or soiled

With proper installation at the recommended angle and appropriate maintenance protocols, Xinxiang's solar potential can be effectively harnessed despite these environmental challenges, taking full advantage of the excellent production periods in spring and summer.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

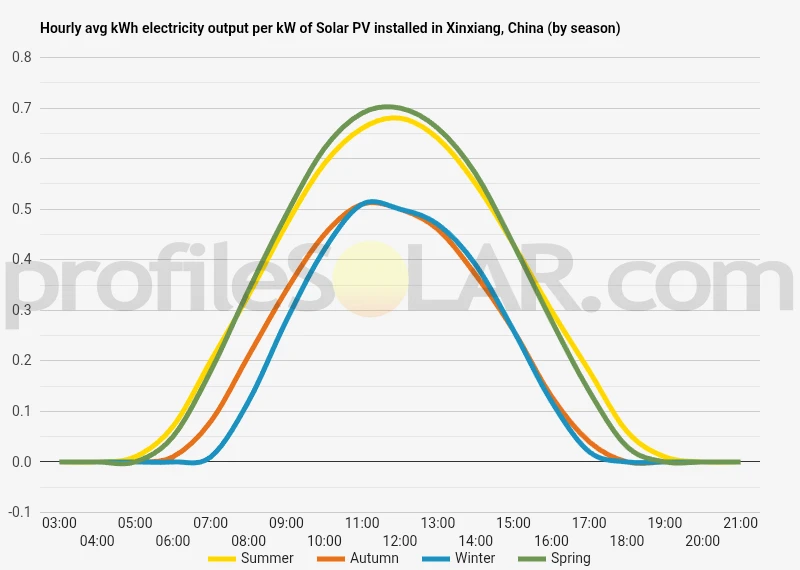

Solar output per kW of installed solar PV by season in Xinxiang

Seasonal solar PV output for Latitude: 35.1874, Longitude: 113.8025 (Xinxiang, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° South in Xinxiang, China

To maximize your solar PV system's energy output in Xinxiang, China (Lat/Long 35.1874, 113.8025) throughout the year, you should tilt your panels at an angle of 31° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Xinxiang, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Xinxiang, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
19° South in Summer	40° South in Autumn	50° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Xinxiang, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Xinxiang, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Xinxiang, China

Xinxiang is situated in the northern part of Henan Province in central China, nestled within a distinctive topographical transition zone. The city itself lies on the North China Plain, characterized by predominantly flat terrain with elevations generally ranging between 70 and 100 meters above sea level. This relatively level landscape extends throughout much of the immediate vicinity around Xinxiang proper. Moving outward from the city center, the topography begins to show more variation. To the west and northwest, the terrain gradually rises as it approaches the eastern foothills of the Taihang Mountains. These foothills represent the beginning of a significant mountain range that forms a natural boundary between Henan and Shanxi provinces. The elevation increases progressively in this direction, with rolling hills giving way to more pronounced ridges and valleys.

Surrounding Waterways and Lowlands

The Yellow River flows approximately 30 kilometers to the south of Xinxiang, influencing the regional hydrology and creating fertile alluvial plains. This river valley contributes to the generally flat character of the southern approaches to the city. The eastern portions of the Xinxiang region maintain this level character, continuing as part of the vast North China Plain that extends toward Shandong Province. Numerous smaller waterways, including tributaries of the Yellow River and various irrigation channels, crisscross the landscape around Xinxiang. These water features have historically supported the agricultural activities that dominate land use in the region.

Potential for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several areas surrounding Xinxiang present favorable conditions based on topographical considerations. The most suitable zones would be: The expansive flat areas to the east and southeast of Xinxiang offer ideal conditions for solar PV development. These sections of the North China Plain provide large, continuous tracts of level terrain that would minimize site preparation costs and complexity. The absence of significant elevation changes reduces concerns about shading from natural features and simplifies the layout of solar arrays. The gently rolling terrain to the northeast also presents opportunities for solar development. These areas maintain sufficient flatness while potentially offering slightly elevated positions that might receive less fog compared to the lowest-lying areas of the plain. The transitional zones between the plain and the western foothills contain moderately sloping land that could be suitable for solar installations, particularly on south-facing gradients. These locations might benefit from reduced dust accumulation compared to the flattest sections of the plain.

Topographical Limitations

Areas less suited for large-scale solar development include the more rugged western approaches to the Taihang Mountains, where increased slope angles, variable aspects, and potential shading from higher elevations would complicate installation and reduce efficiency. Additionally, the immediate flood plains of the Yellow River and its tributaries pose risks of seasonal inundation and should generally be avoided for major infrastructure projects. The urban and peri-urban zones around Xinxiang city proper, while topographically suitable, face competing land use demands and higher land costs that may make them less economically viable for extensive solar developments. Agricultural productivity across much of the surrounding plain presents another consideration, as the conversion of fertile farmland to solar installations involves complex economic and food security tradeoffs that would need careful assessment.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
