Xinyang, Henan, China, located in the Northern Sub Tropics at 32.1188° N, 114.0623° E, presents a moderately favorable location for solar photovoltaic (PV) energy generation throughout the year, with seasonal variations in electricity production.

Seasonal Solar Production

Solar panels in Xinyang perform best during summer months, generating approximately 4.85 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.30 kWh/day per kilowatt. Autumn yields a moderate 3.74 kWh/day, while winter shows the lowest output at 3.00 kWh/day per kilowatt of installed capacity.

This seasonal pattern creates a yearly average of approximately 3.97 kWh/day per kilowatt, indicating that Xinyang has reasonable solar potential, though with noticeable seasonal fluctuations. The difference between the highest-producing summer months and lowest-producing winter months is about 38%, which is significant but manageable for system planning.

Optimal Panel Installation

For fixed solar panel installations in Xinyang, Henan, the ideal tilt angle to maximize year-round energy production is 29 degrees facing South. This angle optimizes the annual solar capture by balancing seasonal variations in sun position and intensity throughout the year.

Environmental and Weather Considerations

Several environmental factors could impact solar production in Xinyang:

• Seasonal monsoon rains, particularly during summer, can temporarily reduce solar output despite it being the highest production season
• Winter fog and haze common in this region of China can significantly diminish solar radiation reaching panels
• Air pollution from nearby industrial centers may deposit particulate matter on panels, gradually reducing efficiency
• Occasional dust storms from northern China can coat panels with fine dust

Preventative Measures

To maximize solar energy production in Xinyang despite these challenges, several preventative measures are recommended:

Installing automated cleaning systems or implementing regular manual cleaning schedules will help mitigate the effects of dust, pollution, and pollen accumulation. Using panels with anti-soiling glass coatings can reduce dust adhesion and make cleaning more effective.

Consider slightly oversizing the system to compensate for seasonal production dips, particularly during winter months. Implementing micro-inverters or power optimizers can help maintain higher system efficiency during partial shading conditions common during foggy or hazy periods.

For new installations, elevating panels slightly higher than standard height can reduce impacts from ground-level dust and potential flooding during heavy monsoon rains. Finally, using high-efficiency bifacial panels may increase overall production by capturing reflected light, particularly beneficial during overcast conditions.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

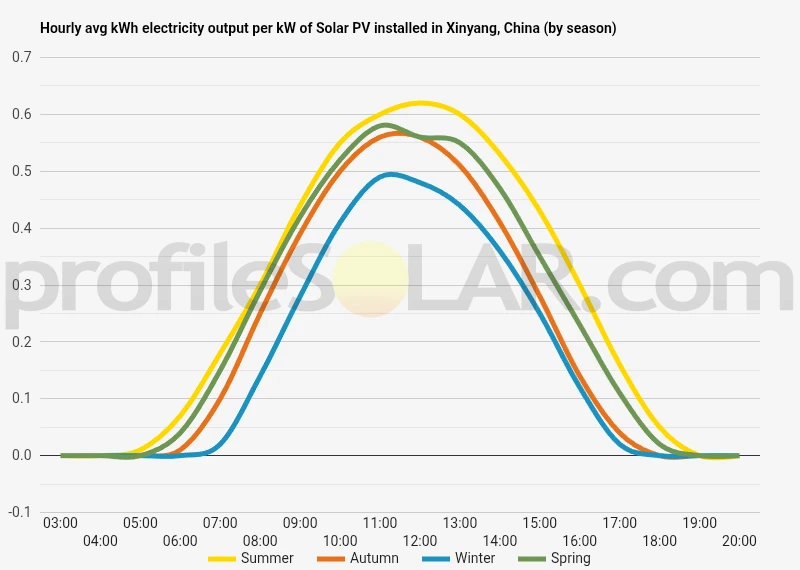

Solar output per kW of installed solar PV by season in Xinyang

Seasonal solar PV output for Latitude: 32.1188, Longitude: 114.0623 (Xinyang, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Xinyang, China

To maximize your solar PV system's energy output in Xinyang, China (Lat/Long 32.1188, 114.0623) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Xinyang, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Xinyang, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	47° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Xinyang, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Xinyang, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Xinyang, China

The region surrounding Xinyang, located in the southern part of Henan Province in central China, presents a diverse topographic landscape characterized by a transition between the North China Plain and the mountainous regions of central China. This area sits at the northern foothills of the Dabie Mountains, creating a varied terrain that includes rolling hills, valleys, river plains, and some more elevated mountainous sections.

General Topography

Xinyang's terrain can be broadly described as a basin surrounded by higher elevations. The central and northern parts of Xinyang feature relatively flat or gently undulating plains, particularly along the Huai River and its tributaries which flow through the region. These plains gradually give way to more pronounced hills and low mountains as one moves southward toward the Dabie Mountain range, where elevations can reach several hundred meters above sea level. The Dabie Mountains, forming part of the boundary between Henan, Hubei, and Anhui provinces, influence the southern portion of the Xinyang region significantly. These mountains are not extremely high by Chinese standards but create a distinct topographic boundary with numerous valleys and ridges. Water features are abundant throughout the area, with the Huai River basin being particularly significant for agriculture and local ecosystems.

Suitability for Solar PV Development

When considering large-scale solar photovoltaic (PV) development in the Xinyang region, several areas stand out as particularly promising based on topographic considerations: The northern plains and gently sloping areas of Xinyang offer excellent potential for solar PV installations. These relatively flat regions provide large, contiguous spaces that would minimize grading costs and simplify construction logistics. The open terrain also reduces concerns about shading from natural features like mountains or hills, which can significantly impact solar energy production. The rolling hill country in the central parts of the region presents a moderate opportunity. While requiring more site preparation than flat plains, these areas often have south-facing slopes that can optimize solar exposure in the Northern Hemisphere. Such topography can sometimes be advantageous for solar collection, particularly when panels can be oriented to maximize direct sunlight capture. The river plains along the Huai River and its tributaries present another viable option for solar development. These areas typically feature level ground and good accessibility via existing transportation networks, which would facilitate construction and maintenance of solar facilities. However, flood risk assessment would be crucial for installations in these lowland areas.

Less Suitable Areas

The more mountainous southern portions near the Dabie Mountains present challenges for large-scale solar development. The steeper terrain would significantly increase construction costs and complicate maintenance access. Additionally, the varied topography could create shading issues as mountains and ridges might block sunlight during certain parts of the day, reducing overall energy production efficiency. Dense forest areas, which are more common in the southern mountainous regions, would require clearing, raising both environmental concerns and project costs. Valley bottoms, particularly narrow ones between higher ridges, may experience reduced direct sunlight due to shading from surrounding elevations.

Topographic Considerations Beyond Terrain

Beyond pure terrain features, the Xinyang region's topography influences other factors relevant to solar development. The area's watersheds and drainage patterns must be considered when planning large installations to avoid disrupting natural water flows or creating erosion issues. The varied elevation also creates microclimates that might affect local cloud cover patterns and fog formation, which could impact solar productivity in specific locations. Land use patterns shaped by the topography are another important consideration. The flatter northern areas tend to be more extensively used for agriculture, potentially creating land-use competition for solar development, while some of the hillier regions might offer less productive agricultural land that could be more readily converted to solar energy production.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
