Solar Energy Potential in Yichang, Hubei, China

Yichang, Hubei, China, located in the Northern Sub Tropics at coordinates 30.7159, 111.2744, offers reasonably good conditions for solar power generation throughout the year, though with notable seasonal variations. The location experiences moderate to good solar production potential across all four seasons. The seasonal energy output from solar PV systems in Yichang shows a predictable pattern. Summer is the most productive season, generating 4.83kWh per day for each kilowatt of installed capacity. Autumn follows with 3.75kWh/day, while spring produces 3.55kWh/day per kW installed. Winter sees the lowest output at 2.85kWh/day, which is still reasonable but significantly lower than summer production. For maximizing year-round solar energy production in Yichang, Hubei, fixed solar panels should be installed at a tilt angle of 28 degrees facing South. This optimal angle has been calculated by analyzing the solar elevation throughout the year, weighted by the daily PV potential at this specific location.

Environmental and Weather Considerations

Several environmental factors in Yichang could potentially impact solar energy production:

• Seasonal monsoon rains, particularly during summer months, may reduce solar efficiency through cloud cover and direct rainfall
• Air pollution from nearby industrial activities can diminish solar radiation reaching panels
• Occasional dust storms from northern China can deposit particulate matter on panels
• High humidity levels, common in this subtropical climate, can cause condensation on panels

To mitigate these challenges, solar installations in Yichang should incorporate several preventative measures. Regular cleaning systems are essential to remove dust and pollution deposits. Self-cleaning panel technologies or scheduled maintenance programs can be particularly effective. Additionally, high-quality inverters with good low-light performance will help maintain output during cloudy or hazy conditions. Elevated mounting systems can also help prevent issues with morning dew and condensation, allowing water to run off more effectively. For maximum efficiency, consider supplementing fixed-angle installations with tracking systems that could capture more energy during the clearer days, especially in winter when output is naturally lower.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

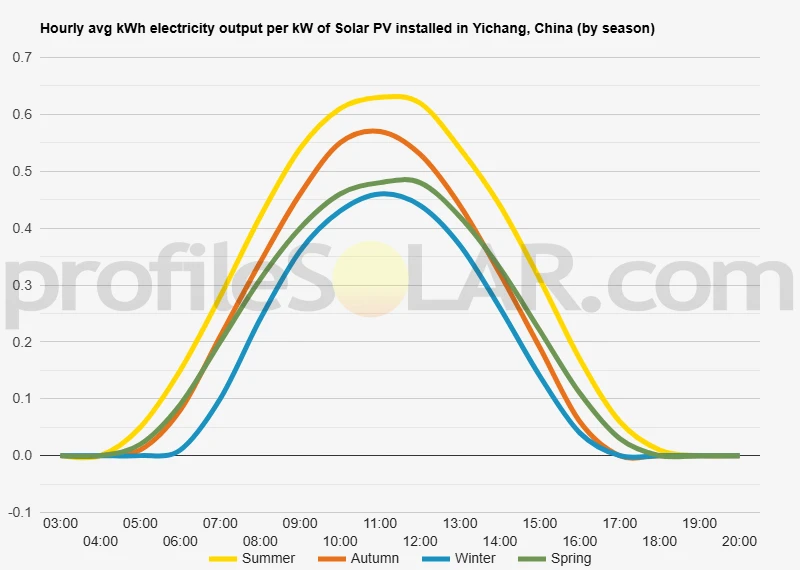

Solar output per kW of installed solar PV by season in Yichang

Seasonal solar PV output for Latitude: 30.7159, Longitude: 111.2744 (Yichang, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Yichang, China

To maximize your solar PV system's energy output in Yichang, China (Lat/Long 30.7159, 111.2744) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Yichang, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Yichang, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	46° South in Winter	24° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Yichang, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Yichang, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Yichang, China

The topography around Yichang, China presents a diverse landscape characterized by significant elevation changes, river systems, and varying terrain features. Yichang is situated in western Hubei Province along the middle reaches of the Yangtze River, at the eastern edge of the Three Gorges region. This location marks a transitional zone between the mountainous western China and the flatter eastern plains.

Mountainous Terrain

The area surrounding Yichang features considerable mountainous topography, particularly to the west and northwest. These mountains form part of the eastern extension of the Daba Mountain Range, with elevations ranging from approximately 500 to 2,000 meters above sea level. The terrain is characterized by steep slopes, deep valleys, and numerous ridgelines that create a complex topographical profile. These mountains have historically presented challenges for transportation and development but contribute to the region's scenic beauty.

River Valleys and Floodplains

The Yangtze River cuts through this mountainous region, creating a prominent valley system. The famous Three Gorges section begins just upstream from Yichang, where the river narrows dramatically as it passes through steep limestone cliffs. Downstream from Yichang, the Yangtze River valley gradually widens, forming flatter alluvial plains with more gentle topography. These lower-lying areas typically range from 50 to 200 meters above sea level and provide more accessible terrain for human settlement and agriculture.

Karst Landforms

Parts of the region exhibit karst topography, a distinctive landscape formed by the dissolution of soluble rocks such as limestone. This results in sinkholes, caves, underground streams, and irregularly shaped hills. These features are particularly prevalent in the areas north and south of Yichang, creating a terrain with numerous small hills and depressions that can complicate large-scale land development projects.

Areas Suitable for Solar PV Development

For large-scale solar photovoltaic installations, several areas near Yichang present favorable conditions based on topographical considerations: The relatively flat terraces and plateaus east and southeast of Yichang offer promising locations for solar development. These areas have gentler slopes, reducing the costs associated with land preparation and construction. The elevation is sufficient to avoid most flooding concerns while maintaining good solar exposure. The moderately sloped hillsides facing south, particularly in the less densely forested areas to the north and northeast of the city, could be advantageous for solar installations. South-facing slopes in the northern hemisphere naturally receive more direct sunlight throughout the year, potentially increasing energy generation efficiency. Some of the broader valley floors away from immediate flood risks provide substantial contiguous land areas that could accommodate large solar arrays. These locations often have existing road access, simplifying construction logistics and ongoing maintenance requirements.

Topographical Challenges

Despite these opportunities, the topography around Yichang presents several challenges for solar development. The steep mountainous terrain to the west and northwest would require significant grading and engineering work, substantially increasing development costs. These areas also experience more cloud cover due to orographic effects, potentially reducing solar efficiency. Areas immediately adjacent to the Yangtze River and its tributaries face periodic flooding risks that could damage solar infrastructure. The Three Gorges Dam, located near Yichang, has altered the region's hydrology, but flooding remains a consideration for development in lower-lying areas. The karst topography in parts of the region creates uneven surfaces with variable soil depths and stability issues that would require careful site assessment and potentially more complex foundation systems for solar arrays. In conclusion, while the varied topography around Yichang presents challenges for large-scale solar development, the region does offer several promising areas, particularly on the eastern plateaus, south-facing hillsides, and stable valley floors away from flood zones. Any development would require careful site selection that balances topographical considerations with other factors such as grid connectivity, land availability, and environmental impact.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
