Yining, China presents a moderately favorable location for solar PV energy generation, though with significant seasonal variations that make it less than ideal for year-round solar production.

Seasonal Solar Performance

The solar energy output at this Northern Temperate Zone location shows dramatic fluctuations throughout the year. Summer provides the strongest performance at 7.06kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring offers solid production at 5.75kWh per day per kW, representing the second-best season for solar energy harvesting. However, the location faces considerable challenges during colder months. Autumn production drops significantly to 3.77kWh per day per kW, while winter presents the most challenging conditions with only 2.59kWh per day per kW of output. This represents a nearly three-fold difference between peak summer and winter production.

Optimal Panel Configuration

For maximum year-round energy production at Yining, solar panels should be installed at a fixed tilt angle of 38 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's varying position throughout the year and weighting for actual solar irradiance potential at this specific latitude.

Environmental and Weather Challenges

Several local factors at Yining can significantly impact solar panel performance and require careful consideration during installation:

• Dust and Sand Accumulation: Yining's location in western Xinjiang exposes it to frequent dust storms and airborne particles that can coat solar panels, reducing efficiency by 10-25% if left unaddressed
• Snow and Ice Coverage: Winter weather can cover panels completely, eliminating production during critical low-light periods
• Temperature Extremes: Both hot summers and cold winters can affect panel efficiency and component longevity
• High Altitude UV Exposure: Increased ultraviolet radiation can accelerate panel degradation over time

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Easy Access Design: Install panels with safe, convenient access for regular cleaning to combat dust accumulation
• Steeper Tilt Angles: Consider slightly steeper angles than the optimal 38 degrees in areas with heavy snowfall to encourage natural snow shedding
• Quality Components: Use panels and mounting systems rated for extreme temperature variations and high UV exposure
• Automated Cleaning Systems: For larger installations, consider automated cleaning systems to maintain panel efficiency
• Snow Guards and Heating: Install snow management systems or heating elements for critical applications requiring winter production

While Yining can generate substantial solar energy during peak seasons, the significant winter production decline and environmental challenges make it a moderately suitable rather than ideal location for consistent year-round solar PV generation.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

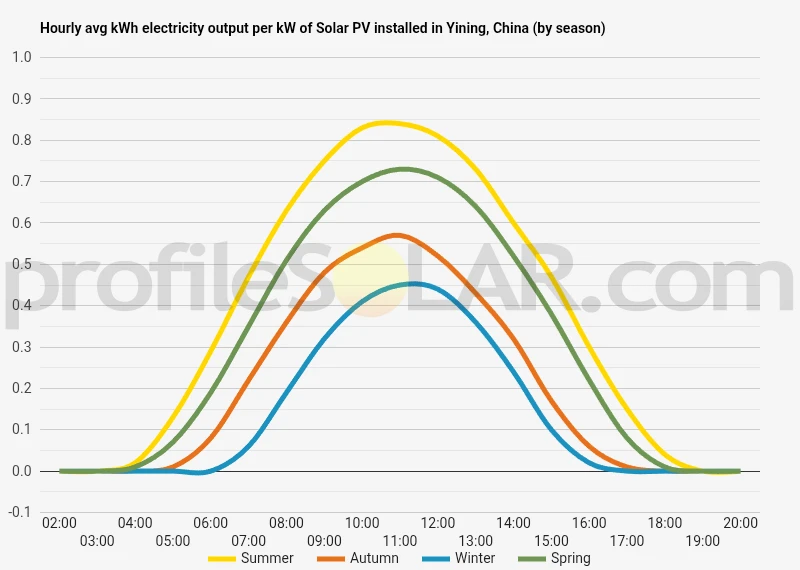

Solar output per kW of installed solar PV by season in Yining

Seasonal solar PV output for Latitude: 43.9809, Longitude: 81.5122 (Yining, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 38° South in Yining, China

To maximize your solar PV system's energy output in Yining, China (Lat/Long 43.9809, 81.5122) throughout the year, you should tilt your panels at an angle of 38° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Yining, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Yining, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 38° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° South in Summer	48° South in Autumn	59° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Yining, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Yining, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Yining, China

Topographical Features Around Yining

Yining sits in a remarkable geographical setting within the Ili River Valley of northwestern Xinjiang, China. The city is positioned at an elevation of approximately 660 meters above sea level, nestled in a broad valley that stretches between imposing mountain ranges. To the north, the Borohoro Mountains rise dramatically from the valley floor, while the Tianshan mountain range dominates the southern horizon with its snow-capped peaks reaching well over 4,000 meters in elevation.

The Ili River Valley itself is characterized by relatively flat to gently rolling terrain, making it one of the most fertile and accessible regions in this part of Central Asia. The valley floor extends for considerable distances in both east-west and north-south directions, creating expansive areas of open land with minimal topographical obstacles. This broad valley formation results from ancient geological processes that carved out a natural corridor between the surrounding mountain systems.

The immediate surroundings of Yining feature predominantly flat agricultural land interspersed with gentle hills and terraced slopes. The terrain gradually rises as it approaches the foothills of both mountain ranges, but the transition is generally gradual rather than abrupt. Small streams and irrigation channels crisscross the landscape, supporting the region's agricultural activities and creating a patchwork of cultivated fields and grasslands.

Climate and Environmental Characteristics

The valley's position creates a semi-arid continental climate with distinct seasonal variations. The surrounding mountains provide some shelter from extreme weather patterns while also influencing local wind patterns and precipitation distribution. The area experiences relatively low rainfall compared to more eastern regions of China, with most precipitation occurring during spring and early summer months.

Temperature variations between seasons are significant, with warm summers and cold winters typical of the continental climate zone. The clear atmospheric conditions prevalent in this region, combined with the high elevation and dry air, create favorable conditions for solar radiation throughout much of the year. Cloud cover tends to be minimal during many months, particularly in autumn and winter.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie in the flat to gently sloping areas south and southwest of Yining city. These zones offer several key advantages including minimal grading requirements, excellent solar exposure, and sufficient distance from residential areas to avoid conflicts with urban development. The terrain in these areas is predominantly open with sparse vegetation, reducing environmental impact concerns.

The broad valley floor extending eastward from Yining presents another excellent opportunity for solar development. This area features consistent flat topography over large continuous areas, which would allow for efficient installation and maintenance of solar arrays. The relatively uniform elevation across these zones minimizes shading issues that might arise from topographical variations.

Areas to the north of the city, while also relatively flat, are less ideal due to their proximity to the Borohoro Mountains, which could create shading effects during certain times of the year. The southern portions of the valley, despite being closer to the Tianshan range, actually benefit from better solar exposure due to the orientation of the slopes and the greater distance to the mountain bases.

The western sections of the valley floor offer perhaps the most promising locations for massive solar installations. These areas combine optimal topographical conditions with minimal competing land uses and excellent accessibility via existing transportation infrastructure. The terrain here is characterized by vast open spaces with gentle, consistent slopes that would facilitate both construction and long-term maintenance operations.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
