Solar Energy Potential in Yongjiawan, Hunan, China

Yongjiawan, Hunan, China, situated in the Northern Sub Tropics, presents a generally favorable location for solar PV energy generation, though with seasonal variations. This location experiences moderate to good solar energy production potential throughout the year, with distinct seasonal patterns. The solar energy production at Yongjiawan follows a predictable seasonal cycle. Summer stands out as the most productive season, generating approximately 5.19kWh per day for each kilowatt of installed solar capacity. Autumn follows with a still respectable 4.13kWh/day, while spring produces 3.34kWh/day. Winter shows the lowest production at 2.88kWh/day per kW of installed capacity. For fixed solar panel installations at this location, the ideal tilt angle to maximize year-round energy production is 26 degrees facing South. This specific angle has been calculated to optimize solar capture across all seasons, taking into account the location's latitude and seasonal sun paths.

Seasonal Considerations

The substantial difference between summer and winter production (nearly 45% less in winter) suggests that Yongjiawan experiences significant seasonal variation. This pattern is typical for locations in the Northern Sub Tropics, where summer sun angles are higher and days are longer compared to winter. The relatively strong autumn performance (4.13kWh/day) indicates that clear skies likely extend well into the fall months, making this a good secondary production period. Spring's moderate production (3.34kWh/day) suggests it may experience more cloud cover or atmospheric conditions that somewhat reduce solar efficiency compared to autumn.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar production in Yongjiawan:

• Air pollution and haze from industrial activities in the broader region may reduce solar irradiance reaching panels, particularly during winter months when atmospheric inversion can trap pollutants.
• Seasonal monsoon patterns could bring extended periods of cloud cover and rain, especially during transitional seasons.
• Dust accumulation is likely a concern, as the region can experience dust storms from northern China.

To mitigate these challenges, solar installations should incorporate several preventative measures: Regular cleaning schedules should be implemented, particularly after dust events. Self-cleaning panel technologies or hydrophobic coatings can help maintain efficiency. Installing panels at the recommended 26-degree tilt also helps with natural cleaning during rainfall. For larger installations, tracking systems could be considered to boost production, especially during the lower-output winter months. However, the fixed 26-degree south-facing orientation provides a good compromise for year-round production if tracking systems aren't feasible. Overall, Yongjiawan offers a moderately good location for solar PV generation, with summer and autumn being particularly productive seasons, while winter output drops significantly but remains viable for continued energy production.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

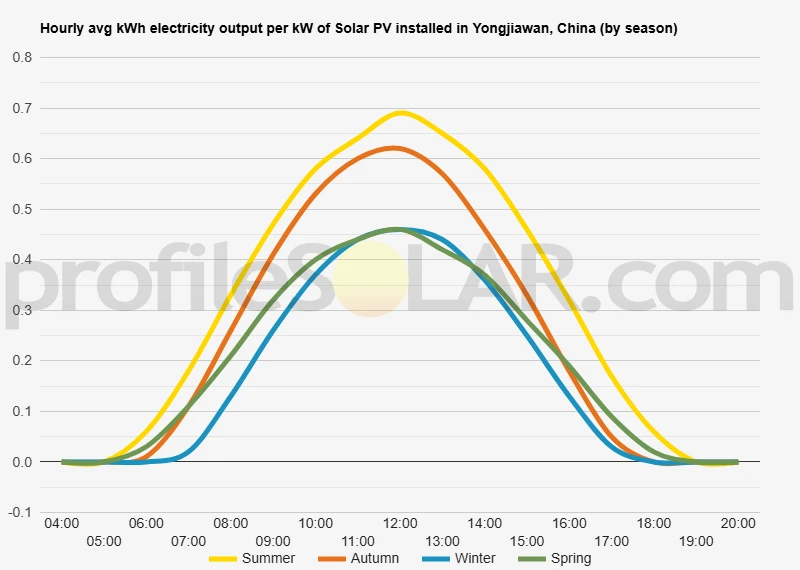

Solar output per kW of installed solar PV by season in Yongjiawan

Seasonal solar PV output for Latitude: 29.1439, Longitude: 113.1059 (Yongjiawan, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° South in Yongjiawan, China

To maximize your solar PV system's energy output in Yongjiawan, China (Lat/Long 29.1439, 113.1059) throughout the year, you should tilt your panels at an angle of 26° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Yongjiawan, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Yongjiawan, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	34° South in Autumn	45° South in Winter	22° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Yongjiawan, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Yongjiawan, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Yongjiawan, China

The topography around Yongjiawan, China, located at approximately 29.1439°N, 113.1059°E, is characterized by diverse terrain features typical of central Hunan Province. This area sits within the transitional zone between the Xuefeng Mountains to the west and the Dongting Lake Plain to the east. The landscape consists of rolling hills, scattered low mountains, and river valleys that gradually descend toward the eastern plains.

Local Terrain Features

The immediate vicinity of Yongjiawan presents a mixture of gently sloping hills and relatively flat areas, with elevations typically ranging from 100 to 400 meters above sea level. The region is part of the larger Yangtze River basin system, with numerous smaller rivers and streams cutting through the landscape, creating natural valleys and alluvial plains. These waterways eventually feed into the larger Yuan River system, which flows eastward toward Dongting Lake. The hills in this region tend to have rounded tops rather than sharp peaks, the result of centuries of erosion and weathering in the subtropical climate. Vegetation is abundant, with natural forest cover on many hillsides, while the flatter areas and gentler slopes have largely been converted to agricultural use, including rice paddies on the valley floors and terraced cultivation on the hillsides.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installation, several nearby areas present favorable conditions based on topographical considerations: The south-facing slopes of the gentle hills to the north of Yongjiawan offer promising locations for solar development. These areas receive consistent sunlight throughout the day and have suitable gradients that allow for effective panel placement without excessive earthwork. The moderate elevation also helps minimize potential shading from adjacent terrain features. Several plateau-like areas within 10-15 kilometers of Yongjiawan present relatively flat expanses that would require minimal grading for solar installation. These higher flat areas avoid the flood risks associated with the lower valleys while maintaining good solar exposure. Some of these plateaus have already seen agricultural development, indicating accessible terrain and existing road infrastructure. The broader valleys to the east, where the landscape begins to flatten as it transitions toward the Dongting Lake Plain, offer extensive level areas. While some of these lands are currently used for agriculture, the less productive sections could be repurposed for solar development with minimal topographical challenges. These valley areas benefit from reduced fog compared to the lowest-lying regions near major waterways.

Topographical Challenges

Despite these favorable areas, the region does present certain topographical challenges for solar development. The more rugged terrain to the west includes steeper slopes and deeper valleys that would complicate construction and increase costs. These areas also experience more significant shading throughout the day as surrounding hills block direct sunlight during morning and evening. The lowest portions of the river valleys, while flat, may be susceptible to seasonal flooding and tend to accumulate morning fog during certain times of the year, potentially reducing solar efficiency. Additionally, some areas with ideal topography may currently support productive agriculture or settlements, creating land-use conflicts. The complex mixture of hills and valleys means that large, contiguous flat areas are limited, potentially necessitating a distributed approach to large-scale solar development rather than a single massive installation. However, this same topographical diversity offers the advantage of multiple suitable sites within relatively close proximity, allowing for strategic placement to maximize solar resource utilization throughout the day.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
