Yuxi, Yunnan, China, located in the Northern Sub Tropics at coordinates 24.3493, 102.5481, offers a generally favorable location for solar PV energy generation throughout the year, with some seasonal variations in output.

Seasonal Solar Production

Spring stands out as the most productive season in Yuxi, Yunnan, with an impressive 6.44kWh per day for each kilowatt of installed solar capacity. Summer follows with a solid 5.16kWh/day, while autumn and winter show similar, slightly lower outputs of 4.11kWh/day and 4.09kWh/day respectively.

This pattern indicates that Yuxi experiences its peak solar generation potential during spring months, making this an ideal time for maximum energy harvesting. The relatively consistent production during autumn and winter is noteworthy, as many locations experience significant drops during winter months.

Optimal Panel Installation

For fixed solar panel installations in Yuxi, Yunnan, the ideal tilt angle to maximize year-round energy production is 22 degrees facing South. This specific angle has been calculated to optimize solar capture across all seasons, taking into account the location's latitude and the sun's varying position throughout the year.

Environmental Considerations

Several environmental factors could potentially impact solar production in Yuxi:

• Monsoon season rainfall and cloud cover, particularly during summer months, may temporarily reduce solar output despite otherwise favorable conditions.
• Air pollution from regional industrial activities could diminish solar irradiance reaching panels.
• Occasional dust storms from nearby arid regions might coat panels and reduce efficiency.

Preventative Measures

To maximize solar energy production in Yuxi, Yunnan, several preventative measures can be implemented:

• Install automated cleaning systems or implement regular manual cleaning schedules to address dust and pollution buildup.
• Consider slightly adjusting the tilt angle to favor spring and summer production if seasonal electricity needs align with these periods.
• Use anti-reflective coated panels that perform better in diffuse light conditions during cloudy periods.
• Implement robust mounting systems that can withstand occasional strong winds during seasonal weather transitions.

Overall, Yuxi presents a favorable location for solar PV installation with good year-round generation potential, particularly exceptional during spring months, and manageable environmental challenges that can be addressed through proper system design and maintenance.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

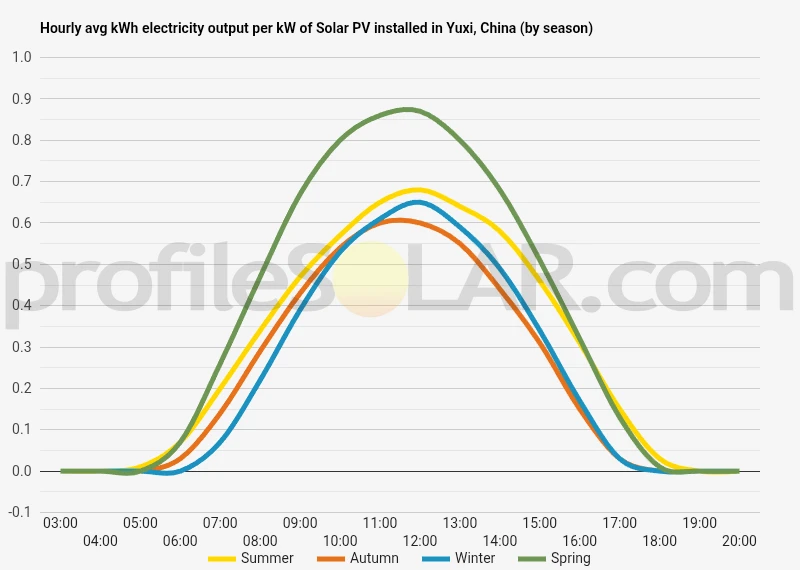

Solar output per kW of installed solar PV by season in Yuxi

Seasonal solar PV output for Latitude: 24.3493, Longitude: 102.5481 (Yuxi, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° South in Yuxi, China

To maximize your solar PV system's energy output in Yuxi, China (Lat/Long 24.3493, 102.5481) throughout the year, you should tilt your panels at an angle of 22° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Yuxi, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Yuxi, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	29° South in Autumn	39° South in Winter	18° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Yuxi, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Yuxi, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Yuxi, China

Topography of Yuxi, China

Yuxi is situated in the central part of Yunnan Province in southwestern China, nestled within a diverse topographical landscape characterized by mountains, valleys, plateaus, and lakes. The city sits at an elevation of approximately 1,800 meters (5,900 feet) above sea level, placing it within China's Yunnan-Guizhou Plateau region. The terrain surrounding Yuxi features a complex mix of mountain ranges and valleys. To the east, the landscape rises into the Wuliang Mountains, which form part of the greater Hengduan Mountain system extending throughout western Yunnan. These mountains create a natural boundary and reach elevations exceeding 3,000 meters in some areas. To the west lies Fuxian Lake, one of China's deepest freshwater lakes, surrounded by rolling hills and terraced landscapes. Northern Yuxi transitions into the broader Yunnan Plateau, characterized by relatively flat highland areas interspersed with gentle hills. The southern regions become increasingly mountainous as they approach the border with Vietnam, featuring steeper slopes and deeper valleys that have been carved by numerous rivers and streams over millennia.

Potential Areas for Large-Scale Solar PV Development

The highlands and plateau regions surrounding Yuxi offer considerable potential for large-scale solar photovoltaic (PV) development. The northern and northeastern districts of Yuxi, where the landscape flattens into plateau terrain, present particularly favorable conditions. These areas combine adequate elevation with relatively level ground, minimizing the costs associated with land preparation while maintaining good solar exposure. The western regions near Fuxian Lake also show promise for solar development, particularly on the gently sloping hillsides that face south or southwest. These locations benefit from reduced shadowing effects from mountain ranges and offer stable ground conditions for installation of solar infrastructure. The eastern foothills of the Wuliang Mountains contain numerous terraced areas and plateaus that could accommodate solar farms. While some preparation might be necessary to optimize these sites, their elevation and orientation provide advantageous conditions for solar collection. Areas to avoid would include the steeper mountain slopes in the southern regions, where installation would be technically challenging and potentially environmentally disruptive. Similarly, the fertile valley floors, particularly those used for agriculture, would represent a poor choice for solar development given their important role in local food production. The moderate climate of Yuxi, influenced by its plateau location, creates conditions where solar panels would operate efficiently without excessive heat degradation that can affect performance in hotter regions. The region's distinct dry and wet seasons should be factored into installation designs, with drainage systems incorporated to manage seasonal rainfall patterns.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
