Zhangye, Gansu, China, located in the Northern Temperate Zone, offers variable but generally favorable conditions for solar PV energy generation throughout the year. This location experiences significant seasonal fluctuations in solar energy production potential.

Seasonal Solar Production

Solar panels in Zhangye can generate substantial electricity, with performance varying considerably across seasons. Summer is the most productive period, yielding 6.47kWh per day for each kilowatt of installed capacity. Spring follows closely behind with 6.04kWh/day. Production drops considerably in autumn to 4.43kWh/day, while winter represents the lowest output season with 3.49kWh/day per kW installed.

The late spring through early autumn period (approximately May through September) represents the prime solar generation window at this location, when longer days and more direct sunlight maximize energy production. Even during winter, however, the location still produces meaningful amounts of electricity.

Optimal Panel Installation

For fixed panel installations in Zhangye, Gansu, the ideal angle to maximize year-round solar production is 35 degrees facing South. This tilt optimizes annual energy capture by balancing seasonal sun angles and accounting for the Earth's elliptical orbit.

Environmental Challenges

Several environmental factors could potentially impact solar production at this location:

• Dust storms from the nearby Gobi Desert region can deposit significant particulate matter on panel surfaces, reducing efficiency by up to 30% if not addressed
• Temperature extremes, with summer highs potentially exceeding 35°C (95°F), can reduce panel efficiency during peak heat
• Winter snowfall may temporarily cover panels, though the area's relatively dry climate limits this concern
• The region's semi-arid climate means occasional drought conditions and limited water availability for panel cleaning

Preventative Measures

To maximize solar production in Zhangye's specific environment, several preventative measures are recommended. Installing automated cleaning systems or implementing regular manual cleaning schedules can mitigate dust accumulation issues. Using elevated mounting systems can reduce snow accumulation while also improving airflow to cool panels during hot periods.

Additionally, selecting high-efficiency panels with good temperature coefficients will help maintain production during summer heat waves. Considering tracking systems rather than fixed installations could further increase energy capture by up to 25%, particularly beneficial during the highly productive summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

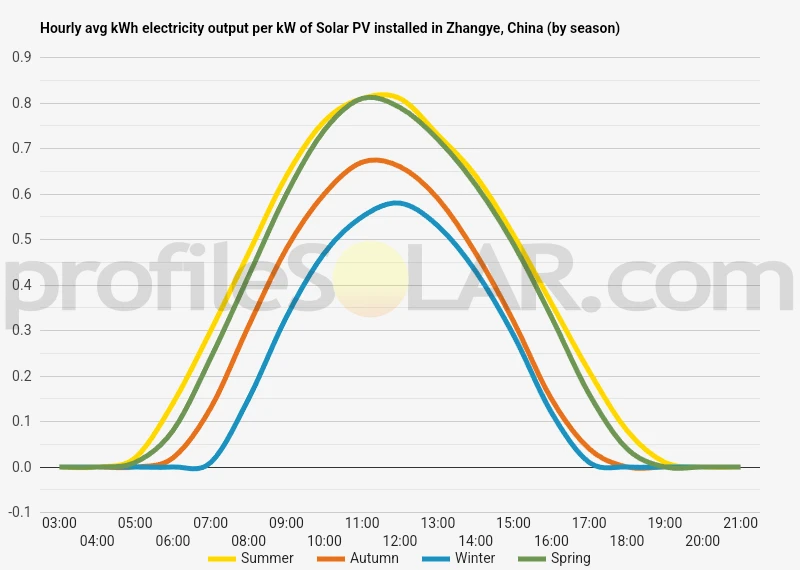

Solar output per kW of installed solar PV by season in Zhangye

Seasonal solar PV output for Latitude: 38.9266, Longitude: 100.448 (Zhangye, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Zhangye, China

To maximize your solar PV system's energy output in Zhangye, China (Lat/Long 38.9266, 100.448) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Zhangye, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Zhangye, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	54° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Zhangye, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Zhangye, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Zhangye, China

The topography surrounding Zhangye, China is dramatically diverse and visually striking. Located in a transitional zone between the Qilian Mountains to the south and the Gobi Desert to the north, Zhangye sits in the middle of the Hexi Corridor, a historically significant passage along the ancient Silk Road. The southern landscape is dominated by the magnificent Qilian Mountain range, with peaks rising to elevations between 4,000 and 5,500 meters. These mountains feature steep slopes, deep valleys, and high alpine meadows. Permanent snow caps and glaciers adorn the highest summits, feeding numerous streams and rivers that flow northward. The mountain terrain transitions through distinct ecological zones, from coniferous forests on the lower slopes to rocky alpine environments at higher elevations. In stark contrast, the northern reaches of Zhangye transition into the arid Gobi Desert landscape, characterized by flat plains, gravel-covered surfaces, and sparse vegetation. This desert region exhibits typical features of a cold desert environment, with temperature extremes and minimal precipitation.

The Colorful Danxia Landforms

Perhaps most famous in the Zhangye area are the extraordinary Danxia landforms, located approximately 40 kilometers southwest of Zhangye city. These geological wonders consist of colorful sandstone and conglomerate formations that have been eroded over millions of years into spectacular rainbow-like patterns. The vibrant red, orange, yellow, green and blue striations create a surreal, painted landscape that attracts visitors from around the world. These formations rise as steep cliffs, narrow ravines, and isolated peaks from the surrounding terrain.

River Valleys and Agricultural Areas

The Heihe River, China's second-largest inland river, flows through Zhangye, creating a fertile valley that contrasts sharply with the surrounding arid lands. This river valley has enabled agricultural development in an otherwise harsh environment, with irrigated farmland forming a green corridor through the region. The flat river plains are surrounded by terraced agricultural areas that climb the gentler slopes of the foothills.

Solar PV Potential Areas

For large-scale solar photovoltaic development, several areas around Zhangye offer promising conditions: The northern desert plains extending toward the Gobi Desert present ideal conditions for solar PV installations. These areas feature flat, unobstructed terrain with minimal agricultural value. The sparsely vegetated landscape means minimal ecological disruption during development. The extremely low precipitation in these regions also reduces concerns about panel degradation from moisture. The gently sloping alluvial fans at the base of the Qilian Mountains, particularly on north-facing aspects, offer another potential zone for solar development. These areas receive minimal agricultural use due to their gradient and distance from water sources, yet they provide good accessibility from existing transportation infrastructure. The elevated plateaus between major river valleys combine favorable topography with proximity to existing electrical infrastructure. These plateaus typically have thin soils unsuitable for intensive agriculture but provide stable foundations for solar arrays. Areas to avoid would include the steep mountain slopes of the Qilian range, which present construction challenges and higher cloud cover. The Danxia landform regions should also be excluded due to their cultural and tourism value. Additionally, the fertile river valleys along the Heihe River and its tributaries should be preserved for their agricultural productivity and ecological importance. Overall, the vast expanses of relatively flat, arid land north of Zhangye city provide the most suitable locations for large-scale solar PV development, combining optimal topographical conditions with minimal competing land uses.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
