Zhaotong, China, located in the Northern Sub Tropics at coordinates 27.3167, 103.7167, offers reasonably good conditions for solar PV energy generation throughout the year, though with notable seasonal variations. This mountainous area in northeastern Yunnan province experiences distinct energy production patterns across the four seasons.

Seasonal Solar Energy Production

Solar panels in Zhaotong produce varying amounts of electricity depending on the season. Spring stands out as the most productive period, generating an impressive 5.61 kWh per day for each kilowatt of installed capacity. Summer follows with 4.91 kWh/day, while autumn and winter show reduced output at 3.85 kWh/day and 3.29 kWh/day respectively.

The substantial difference between the highest production season (spring) and lowest (winter) indicates significant seasonal variation. Spring's exceptional performance likely results from clear skies and moderate temperatures, while winter's reduced output reflects shorter days and potentially more cloud cover typical of the region.

Optimal Panel Installation

For fixed solar panel installations in Zhaotong, the ideal tilt angle to maximize year-round energy production is 24 degrees facing South. This carefully calculated angle balances seasonal solar path variations to capture the most sunlight throughout the entire year.

Environmental and Weather Challenges

Several significant factors may impact solar energy production in Zhaotong:

• Frequent fog and cloud cover during parts of the year, particularly in the wet season, can reduce solar irradiance reaching panels
• The mountainous terrain may create localized shading issues depending on specific installation locations
• Seasonal rainfall patterns, especially during the summer monsoon period, can reduce solar efficiency
• Dust accumulation from the region's agricultural activities and occasional industrial pollution

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended:

• Install panels at higher elevations where possible to minimize fog exposure
• Implement regular cleaning schedules to address dust and pollution buildup
• Consider slightly adjustable mounting systems to optimize for seasonal variations
• Use high-efficiency panels rated for better performance in diffuse light conditions
• Conduct thorough site surveys to avoid terrain-based shading throughout the day

Overall, while not among China's absolute premium solar locations, Zhaotong offers viable conditions for solar PV deployment, particularly if installations are optimized for the local conditions and seasonal patterns.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 319 locations across China. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in China by location

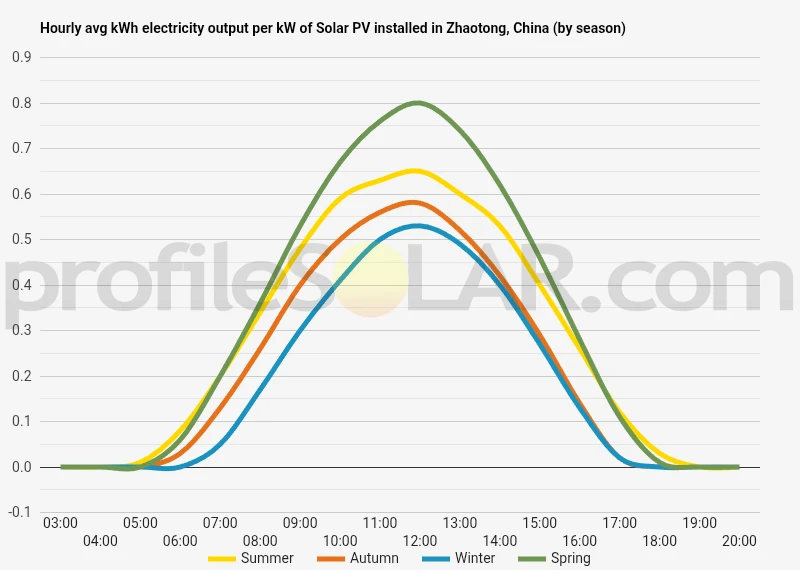

Solar output per kW of installed solar PV by season in Zhaotong

Seasonal solar PV output for Latitude: 27.3167, Longitude: 103.7167 (Zhaotong, China), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° South in Zhaotong, China

To maximize your solar PV system's energy output in Zhaotong, China (Lat/Long 27.3167, 103.7167) throughout the year, you should tilt your panels at an angle of 24° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Zhaotong, China

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Zhaotong, China. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° South in Summer	32° South in Autumn	42° South in Winter	21° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Zhaotong, China

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Zhaotong, China.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Zhaotong, China

Zhaotong is situated in the northeastern part of Yunnan Province in southwestern China, characterized by a diverse and complex topography that significantly influences its climate and suitability for various land uses, including solar energy production.

Topographic Features

The landscape around Zhaotong is predominantly mountainous and hilly, forming part of the transition zone between the Yunnan-Guizhou Plateau and the Sichuan Basin. The area features dramatic elevation changes, with altitudes ranging from approximately 800 meters to over 2,500 meters above sea level. This varied terrain creates a mosaic of valleys, ridges, and plateaus throughout the region. The Wumeng Mountain Range runs through portions of the Zhaotong area, contributing to the rugged nature of the landscape. Numerous river valleys cut through these mountains, including tributaries of the Yangtze River system. These waterways have, over millennia, carved deep valleys and gorges, further enhancing the topographic complexity of the region. The city of Zhaotong itself is nestled in a relatively flat basin surrounded by mountains on multiple sides, creating what is sometimes described as a "mountain city" character. This basin setting influences local weather patterns and creates microclimates throughout the area.

Solar PV Potential Areas

For large-scale solar photovoltaic (PV) installations, several factors related to topography must be considered, including slope, aspect (direction of slope), elevation, and potential shading. The most suitable areas for large-scale solar PV development near Zhaotong would be: South-facing slopes at moderate elevations offer optimal conditions for solar collection. These areas receive more direct sunlight throughout the year compared to other aspects. The gently sloping hillsides found on the southern portions of the plateaus surrounding Zhaotong provide good potential sites. The relatively flat plateau areas to the east and southeast of Zhaotong present favorable conditions for large-scale installations. These areas combine reasonable accessibility with good solar exposure and minimal shading concerns. The more level terrain also reduces construction challenges and costs associated with building on steep slopes. Some of the broader valley floors, particularly those oriented east-west, could provide suitable locations for solar farms. While valleys can sometimes experience morning fog or haze, the wider valleys with good southern exposure generally receive adequate sunlight for effective solar generation.

Topographic Challenges

The mountainous nature of much of the terrain around Zhaotong does present certain challenges for solar development. Many areas have slopes exceeding 15-20 degrees, which can increase installation costs and complexity. The rugged terrain also means that some potentially sunny locations may be difficult to access with the necessary equipment and materials for large-scale installations. Additionally, the complex topography creates localized shading patterns that must be carefully assessed. North-facing slopes receive significantly less direct sunlight and would be poor choices for solar development. Deep valleys, particularly those with north-south orientations, may experience substantial periods of shading from surrounding mountains. The region also experiences seasonal weather patterns influenced by the topography, including fog formation in valleys during certain times of year, which can temporarily reduce solar radiation reaching ground level.

Conclusion

While Zhaotong's mountainous topography presents certain challenges for solar PV development, the region does contain numerous areas suitable for such installations. The most promising locations combine southern exposure, moderate slopes, and reasonable accessibility. Careful site selection that accounts for the complex interplay between topography, solar angles, and local climate conditions will be essential for maximizing the effectiveness of any large-scale solar projects in the region.

China solar PV Stats as a country

China ranks 1st in the world for cumulative solar PV capacity, with 306,973 total MW's of solar PV installed. This means that 6.20% of China's total energy as a country comes from solar PV (that's 13th in the world). Each year China is generating 217 Watts from solar PV per capita (China ranks 24th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in China?

Yes, there are several incentives for businesses wanting to install solar energy in China. These include subsidies from the Chinese government, preferential tax policies, and access to low-interest loans. Additionally, businesses may be eligible for renewable energy certificates (RECs) which can be sold on the open market for additional income.

Do you have more up to date information than this on incentives towards solar PV projects in China? Please reach out to us and help us keep this information current. Thanks!
