Solar Energy Potential in Pointe-Noire, Congo Republic

Pointe-Noire, located in the Republic of Congo, offers generally favorable conditions for solar PV energy generation throughout the year. Situated in the tropics at latitude -4.7776 and longitude 11.8659, this coastal city experiences relatively consistent sunlight patterns typical of equatorial regions. The seasonal electricity output shows some variation throughout the year. During summer months, solar panels can generate approximately 5.27 kWh per day for each kilowatt of installed capacity. Autumn performance is nearly identical at 5.25 kWh/day. There's a noticeable drop during winter when production falls to 4.13 kWh/day, before recovering somewhat in spring to 4.55 kWh/day. For fixed solar panel installations in Pointe-Noire, the ideal tilt angle to maximize year-round energy production is 4 degrees facing North. This slight tilt helps optimize solar capture across the changing seasons while accounting for the city's near-equatorial position.

Optimal Production Periods

The data indicates that summer and autumn represent the peak production periods in Pointe-Noire, with very similar daily outputs. These seasons offer approximately 27% more energy generation compared to the winter months, which represent the annual low point for solar production.

Environmental and Weather Considerations

Several environmental factors may affect solar production in Pointe-Noire:

• High humidity and coastal fog can reduce solar irradiance, particularly during morning hours
• The region's significant rainfall, especially during the wet season (October to May), can temporarily decrease solar efficiency
• Dust accumulation from nearby industrial activities in this port city can gradually diminish panel performance
• Salt spray from the Atlantic Ocean may accelerate corrosion of mounting hardware and electrical components

Preventative Measures

To maximize solar energy production in Pointe-Noire, several preventative measures should be considered:

• Install corrosion-resistant mounting hardware and enclosures designed for coastal environments
• Implement regular cleaning schedules, especially during dry periods when dust accumulation is highest
• Consider slightly elevated tilt angles (beyond the optimal 4 degrees) to promote natural cleaning from rainfall
• Use marine-grade components and protective coatings where possible to resist salt corrosion
• Install automated monitoring systems to quickly identify performance decreases that might indicate cleaning or maintenance needs

With proper installation techniques and maintenance practices, Pointe-Noire's relatively consistent solar resources can be effectively harnessed despite these environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3 locations across Congo Republic. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Congo Republic by location

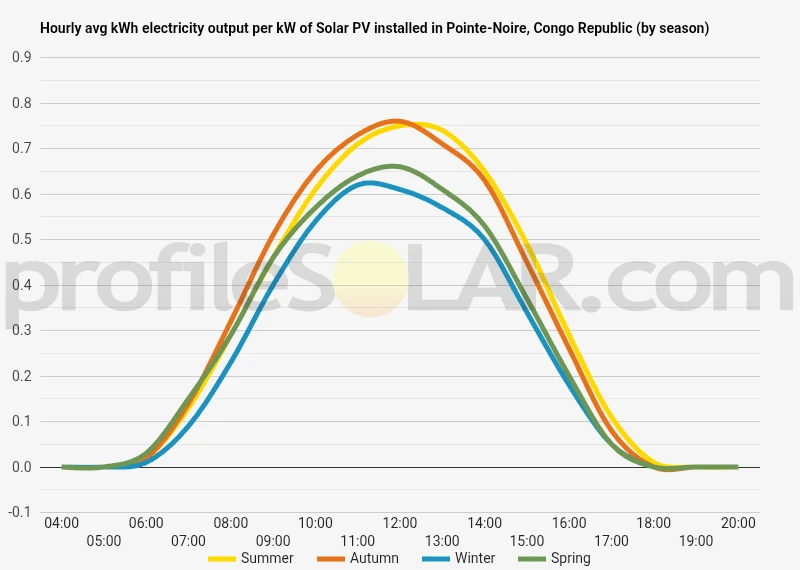

Solar output per kW of installed solar PV by season in Pointe-Noire

Seasonal solar PV output for Latitude: -4.7776, Longitude: 11.8659 (Pointe-Noire, Congo Republic), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Pointe-Noire, Congo Republic

To maximize your solar PV system's energy output in Pointe-Noire, Congo Republic (Lat/Long -4.7776, 11.8659) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pointe-Noire, Congo Republic

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pointe-Noire, Congo Republic. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° South in Summer	11° North in Autumn	21° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pointe-Noire, Congo Republic

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pointe-Noire, Congo Republic.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pointe-Noire, Congo Republic

Topography of Pointe-Noire Region

Pointe-Noire, situated on the western coast of the Republic of Congo, features a diverse topographical landscape. The city itself rests on a coastal plain along the Atlantic Ocean, characterized by relatively flat terrain that gradually rises as one moves inland. This coastal zone consists of sandy beaches and low-lying areas with elevations generally below 100 meters above sea level. Moving eastward from the coast, the landscape transitions into gently rolling hills and plateaus. These formations are part of the Mayombe Mountains, a mountain range that runs parallel to the coast through the western part of the country. The Mayombe range creates a natural barrier between the coastal plains and the interior Congo Basin, with elevations reaching approximately 300-800 meters in the areas surrounding Pointe-Noire. The region also contains numerous river valleys that cut through the landscape, creating natural drainage systems flowing toward the Atlantic Ocean. The most significant of these is the Kouilou River, which flows near Pointe-Noire before emptying into the ocean. These waterways have carved valleys and floodplains throughout the otherwise hilly terrain. Vegetation in the area transitions from coastal savanna near Pointe-Noire to dense equatorial forests as one moves into the Mayombe highlands. These forests cover much of the hillier terrain, while the coastal areas feature more open vegetation patterns.

Optimal Areas for Solar PV Development

When considering large-scale solar photovoltaic (PV) installations in the Pointe-Noire region, several areas present advantageous conditions based on topographical features. The coastal plains extending north and south of Pointe-Noire offer excellent potential for solar development. These areas benefit from flat to gently sloping terrain that minimizes site preparation costs and engineering challenges. The relatively open landscape with limited tree cover reduces shading concerns and clearing requirements. Areas approximately 10-30 kilometers inland from the coast, where the elevation begins to rise but remains below significant hill formations, present particularly favorable conditions. The plateaus found between the coastal zone and the higher Mayombe elevations also present viable options. These intermediate zones often feature consistent elevation profiles with minimal extreme slopes, creating ideal conditions for large arrays of solar panels. The plateaus east of Pointe-Noire, particularly in the direction of Dolisie but before reaching the more densely forested mountains, offer substantial flat land with good solar exposure. Areas to avoid include the steeper slopes of the Mayombe Mountains, where construction would be challenging and costly. Similarly, river valleys and floodplains present potential flooding risks and often feature denser vegetation requiring extensive clearing. The immediate coastal zone, while flat, may face challenges related to salt spray, sand movement, and potential sea-level concerns. The most promising locations combine several favorable characteristics: relatively flat terrain (with slopes under 5%), minimal forest cover, proximity to existing transportation infrastructure, and sufficient distance from major waterways to avoid flooding concerns. Such areas can be found in abundance in the transitional zones between the coastal plains and the beginning of the Mayombe foothills, approximately 15-40 kilometers from the coast.
